Data Sheet

AD8005

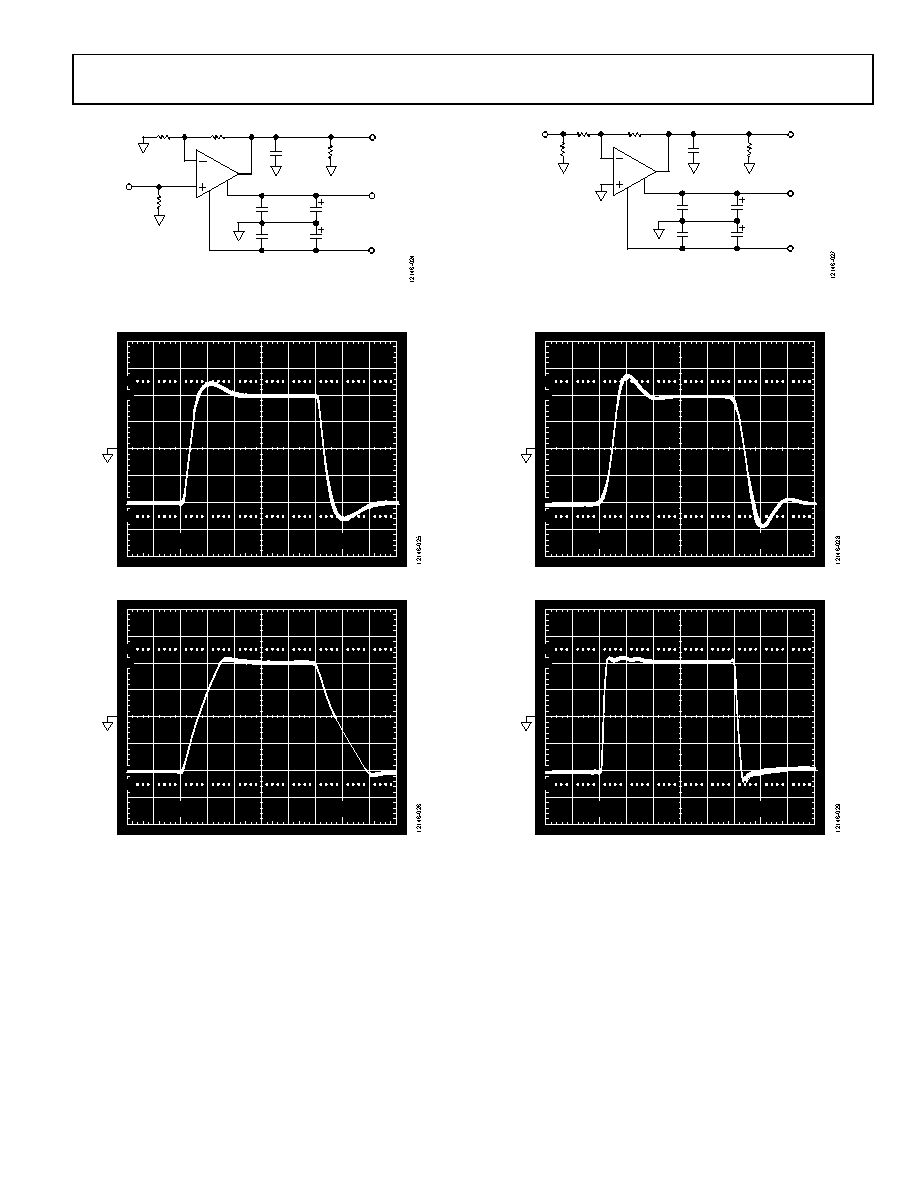

Figure 24. Test Circuit; G = +2; RF = RG = 3.01 kΩ for N-8 Package;

RF = RG = 2.49 kΩ for R-8 and RJ-5 Packages

Figure 25. 200 mV Step Response; G = +2, VS = ±2.5 V or ±5 V

Figure 26. Step Response; G = +2, VS = ±5 V

Figure 27. Test Circuit; G = –1, RF = RG = 1.5 kΩ for N-8, R-8, and RJ-5

Packages

Figure 28. 200 mV Step Response; G = –1, VS = ±2.5 V or ±5 V

Figure 29. Step Response; G = −1, VS = ±5 V
