Data Sheet

ADA4870

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 12 of 24

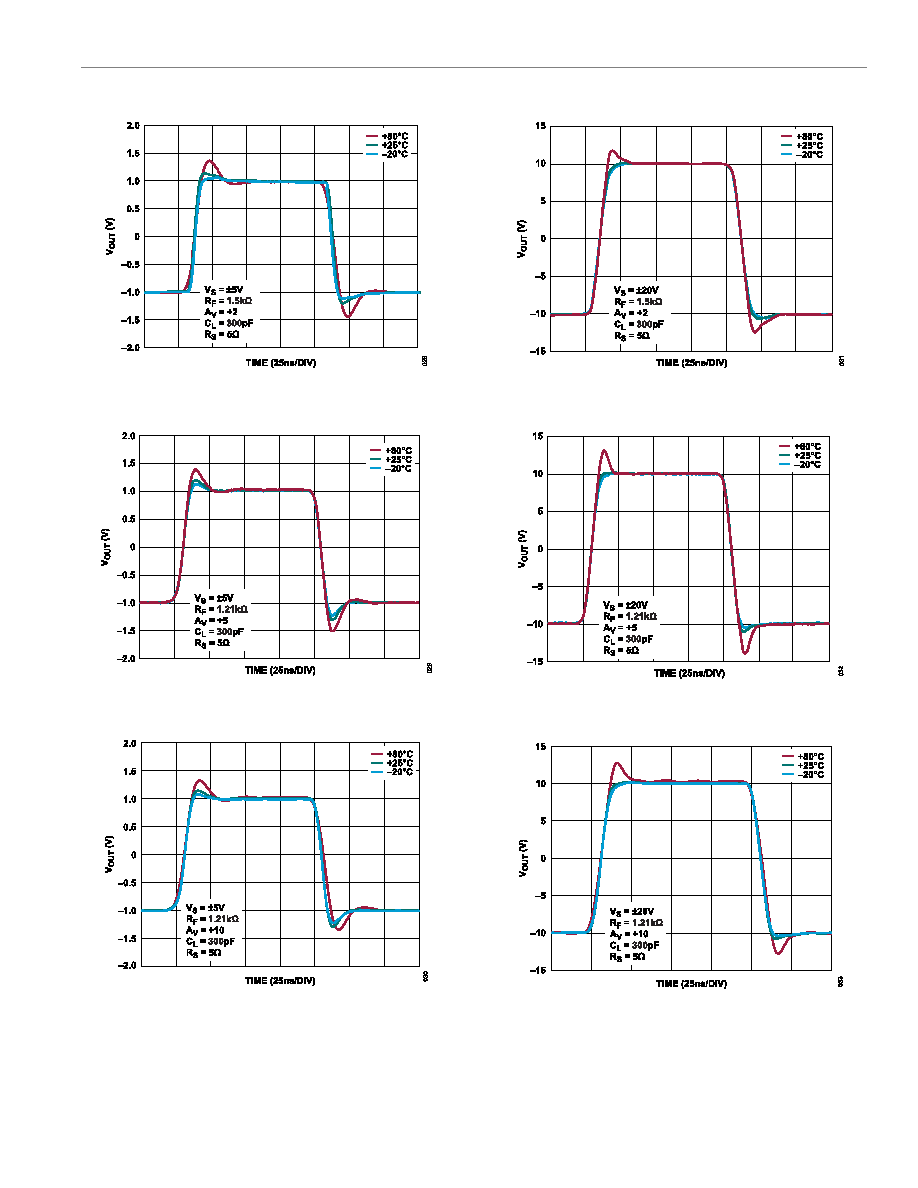

Figure 28. Small Signal Pulse Response vs. Case Temperature, AV = +2, VS =

±5 V, VOUT = 2 V p-p, RF = 1.5 kΩ, CL = 300 pF, RS = 5 Ω

Figure 29. Small Signal Pulse Response vs. Case Temperature, AV = +5, VS =

±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 30. Small Signal Pulse Response vs. Case Temperature, AV = +10,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 31. Large Signal Pulse Response vs. Case Temperature, AV = +2, VS =

±20 V, VOUT = 20 V p-p, RF = 1.5 kΩ, CL = 300 pF, RS = 5 Ω

Figure 32. Large Signal Pulse Response vs. Case Temperature, AV = +5, VS =

±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 33. Large Signal Pulse Response vs. Case Temperature, AV = +10,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω
