Data Sheet

ADA4870

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 18 of 24

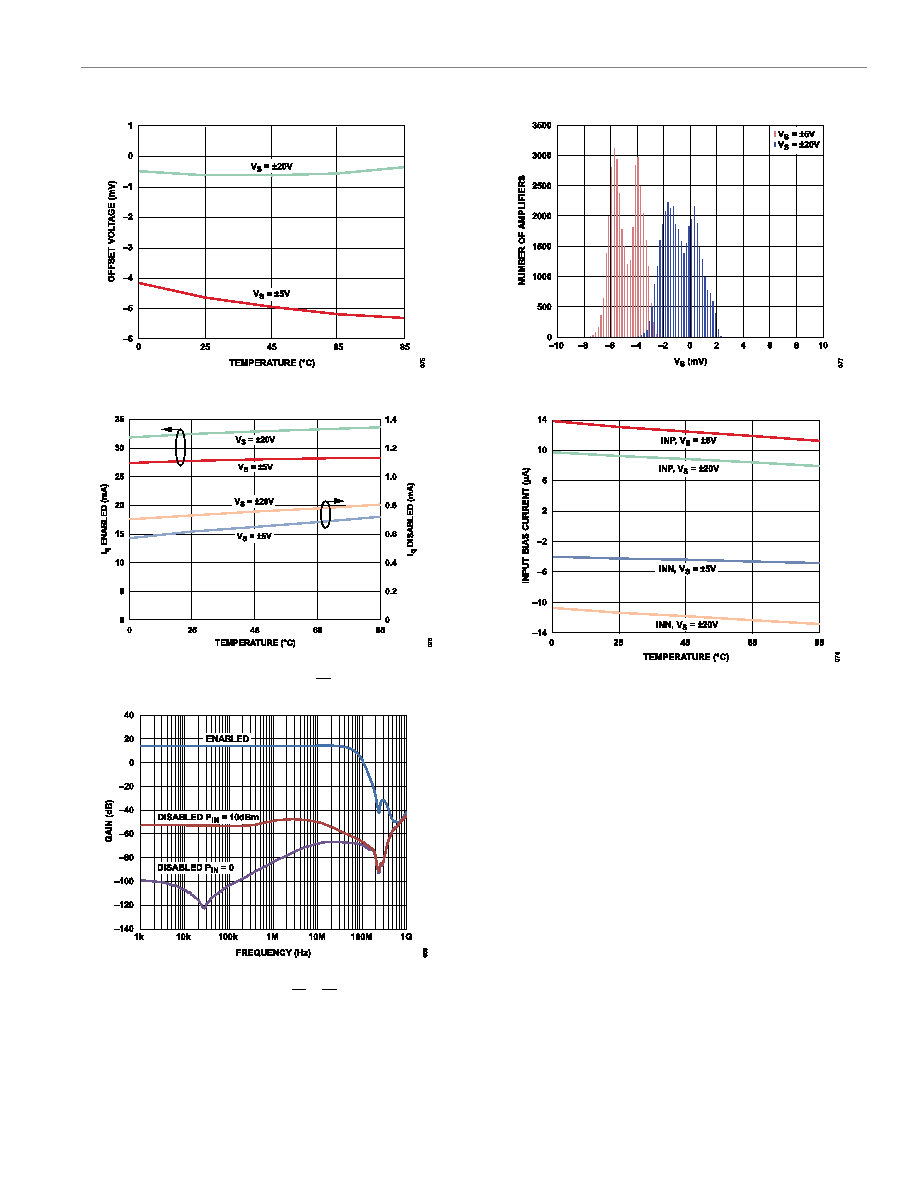

Figure 64. Input Offset Voltage vs. Temperature, VS = ±5 V, VS = ±20 V

Figure 65. Quiescent Supply Current (Iq) vs. Temperature, VS = ±5 V, VS = ±20

V (Enabled/Disabled via SD)

Figure 66. Forward Isolation vs. Frequency for 0 dBm and 10 dBm Input

Levels (Disabled via SD or ON)

Figure 67. Input Offset Voltage Distribution, VS = ±5 V, VS = ±20 V

Figure 68. Input Bias Current vs. Temperature, VS = ±5 V, VS = ±20 V
