The MRA Series offers compact, lightweight

and self-aligning plugs and receptacles with

unusually high current and voltage ratings for

their size. Performance tests show them to

well exceed military standards. Except for

contact size, the MRA and MRE Series share

the same hoods, hardware and accessories.

Right angle, dip solder, pin or socket contacts

are available. Consult factory.

Dimensions are for reference only and are

subject to change. Outline drawings on request.

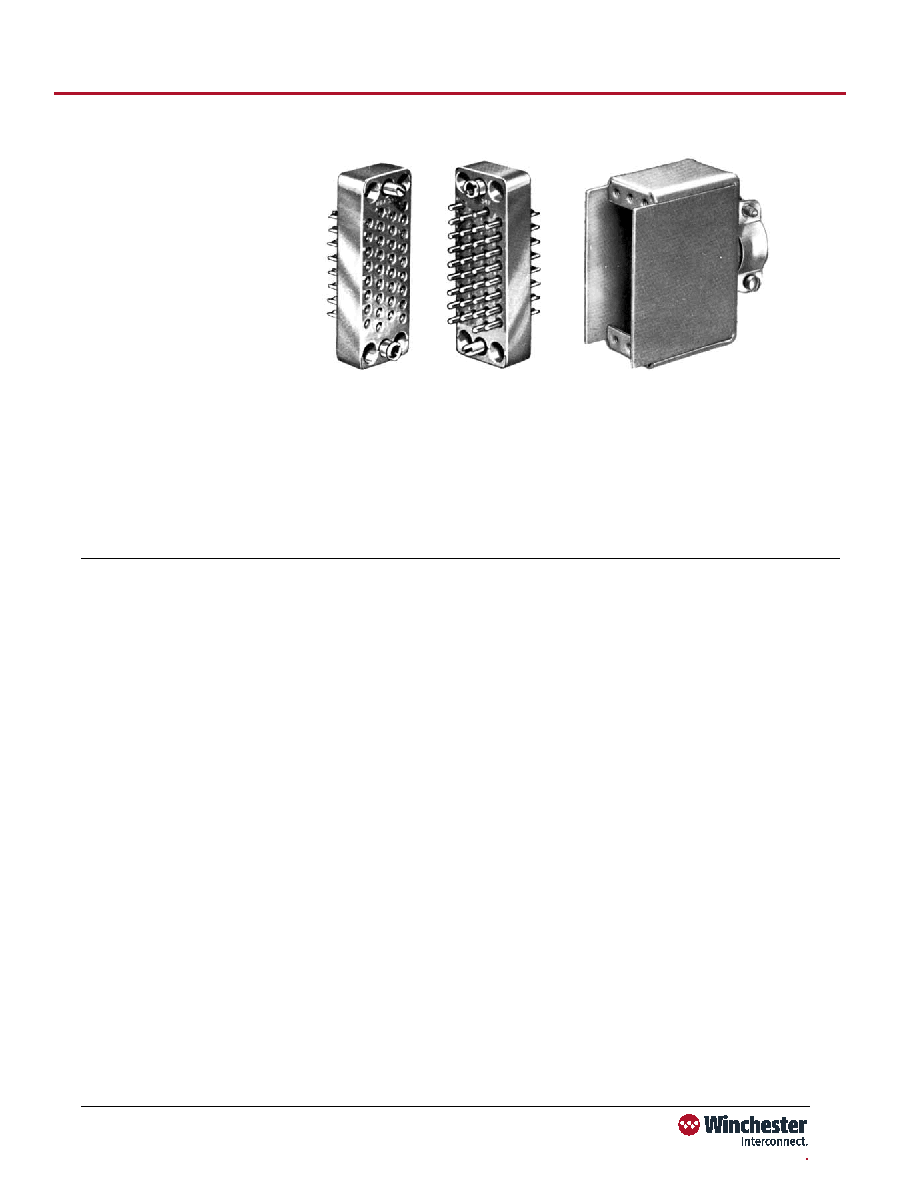

Hood

Plug MRA 34P-G

Receptacle MRA 34S-G

Dielectric:

Gray glass filled diallyl

phthalate, per MIL-M-14,

SDG-F.

Polarization: Gold plated guides provide

polarization. Polarized nickel-

plated brass and/or passivated

stainless steel jackscrews with

anodized aluminum knobs

are available.

Hoods:

Anodized aluminum. May be

applied to either plug or

receptacle. Both top and side

opening hoods available.

Current Rating:13 amps

Number of

contacts:

9, 14, 20, 34, 41, 42, 50, 50-

8, 66, 75, 104

Pin Contacts: .062 diameter, gold plated

brass

Socket

Contacts:

Phosphor bronze, gold plated

Terminations: .070 dia. solder cup is

standard. Will accommodate

up to #16 AWG stranded

wire. Pin and Socket

contacts available with .030

diameter dip solder termina-

tions. Consult Sales Dept.

for lengths available.

Electrical Data:Meets high potential

performance of MIL-C-28748.

Military versions are QPL’d to

M28748/1 and M28748/2.

The minimum dielectric

withstanding voltage is one

minute electrification 1000

VAC, sea level.

RP /

www.winconn.com

Specifications

Miniature Rectangular / #16 Contacts / .062" Dia. / 13 Amps

MRA Series
