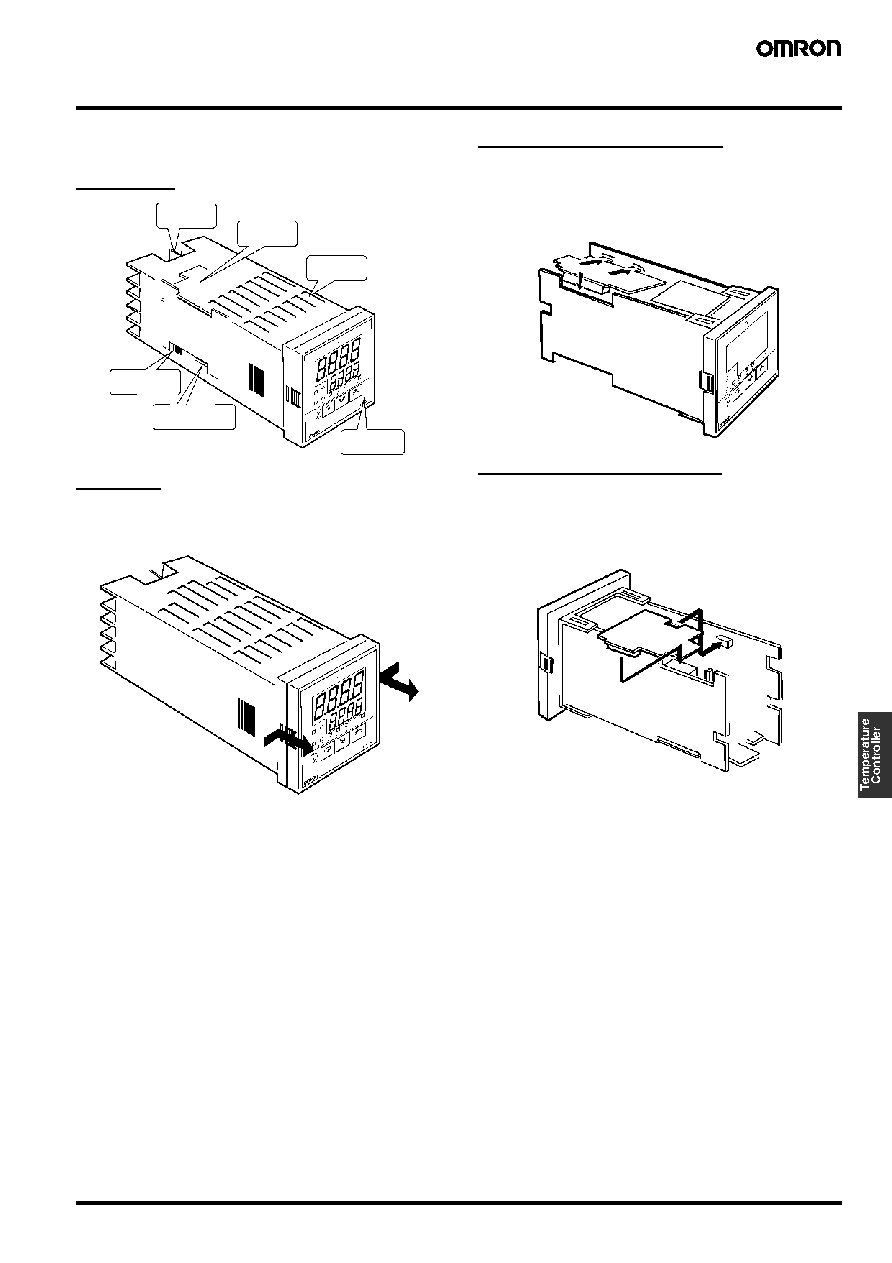

7 / 22 page ![]() Digital Controller E5CK I-69 Installation I Installation Main Parts Draw-out First, draw out the internal mechanism from the housing. Pull out the internal mechanism while pressing the hooks on the left and right sides of the front panel. Setting Up the Output Unit 1. Two rectangular holes are provided on the power board (right side of Controller). Fit the two protrusions of the Output Unit into these two holes. 2. With the Output Unit fitted into the power board, fit the Output Unit into the connector on the control board (left side of Controller). Setting Up the Option Unit 1. Place the Controller with its bottom facing up, and fit the board horizontally into the Connector on the power board (right side of controller). 2. With the power board connected, fit the board vertically into the Connector on the control board (left side of controller). Terminals Output Unit Rear case Front panel Option Unit Input type jump- er connector 1 2 1 2 |
|
|
