I Mounting

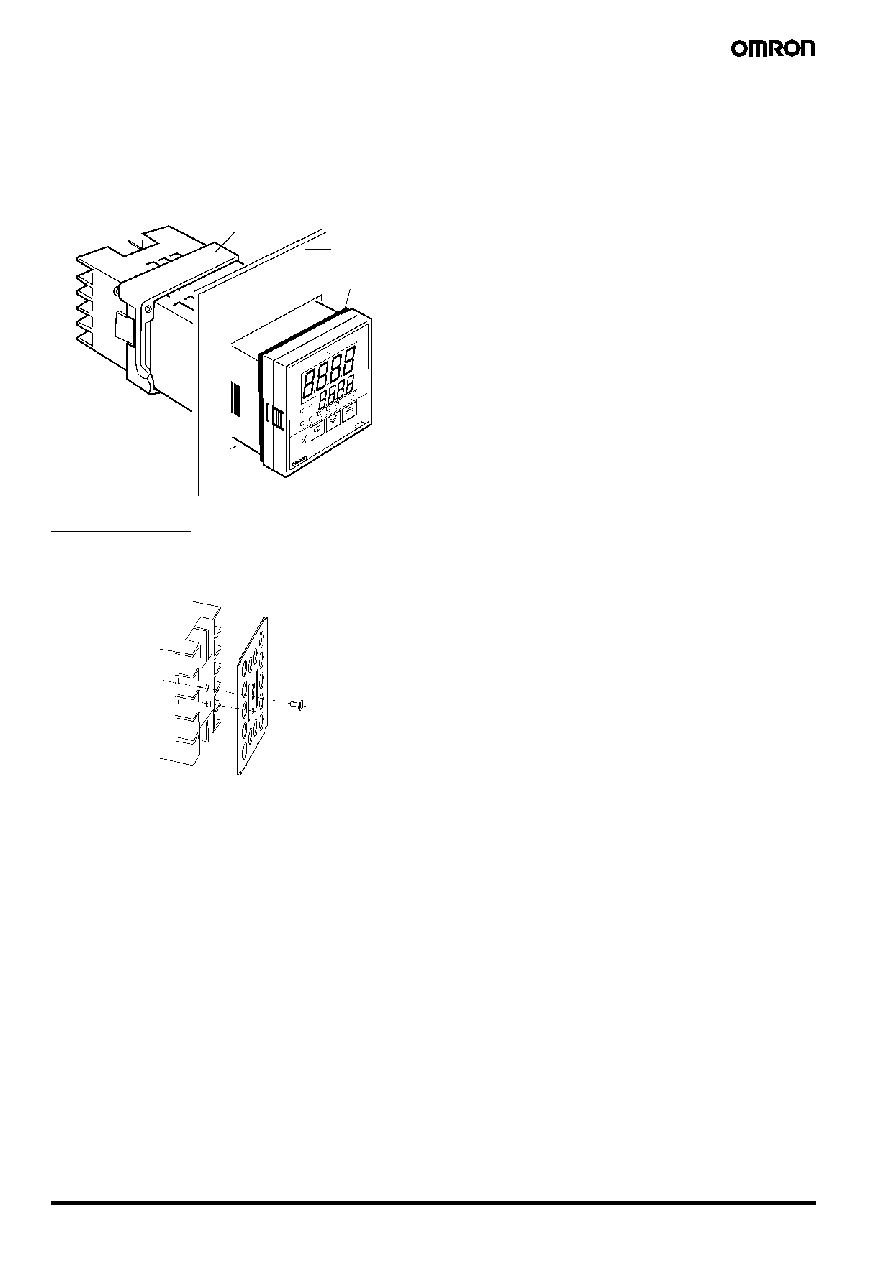

1. Insert the E5CK Controller into the panel’s mounting hole at the

position shown in the figure below.

2. Push the adapter along the Controller body from the terminals up

to the panel, and fasten temporarily.

3. Tighten the two fixing screws on the adapter. When tightening

screws, tighten the two screws alternately keeping the torque to

approximately 0.29 to 0.39 N·m, or 3 to 4 kgf·cm.

Terminal Cover

The E5CK-AA1-500 Controller is provided with a Terminal Cover

(E53-COV07). Fasten the Terminal Cover as follows by using the

snap pin.

Adapter

Panel

Watertight

packing
