RECEIVE OPERATION

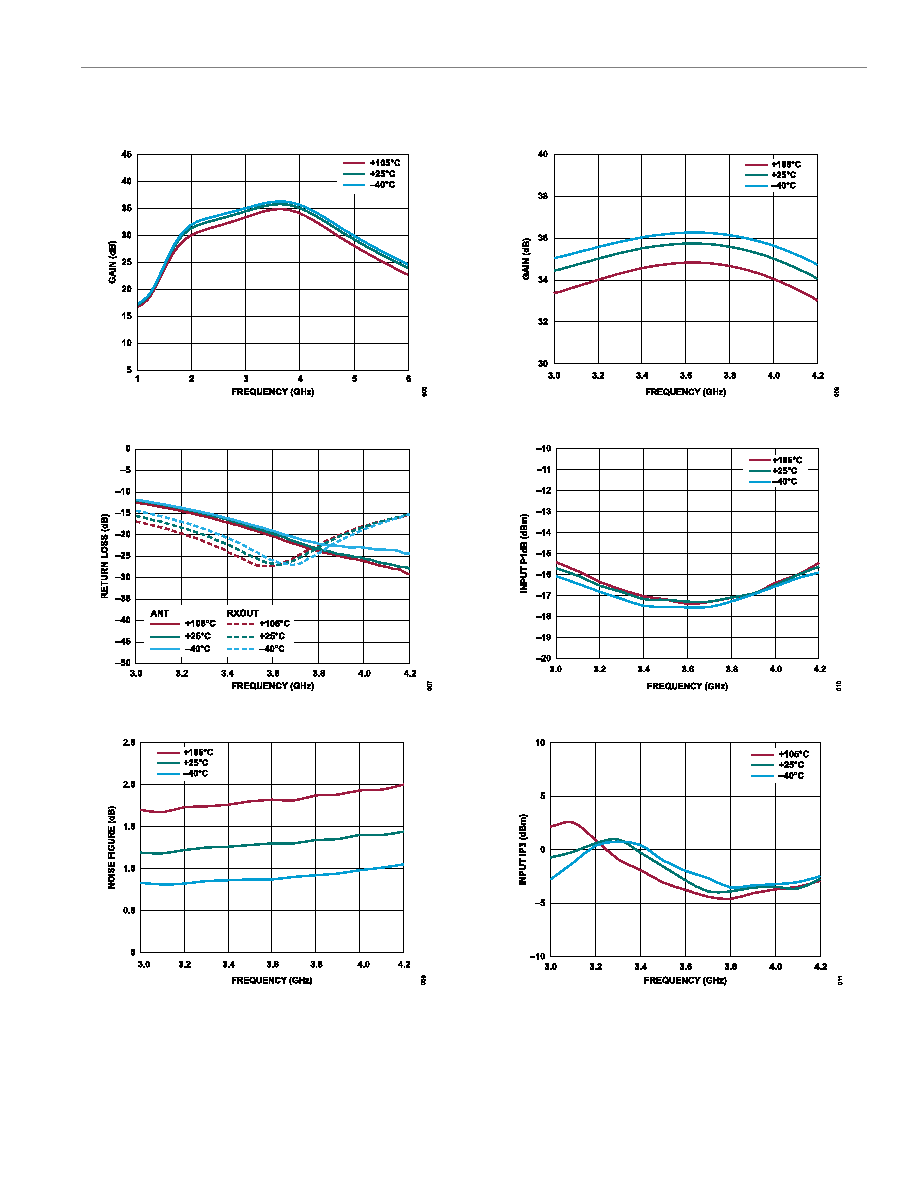

Figure 6. Gain vs. Frequency at Various Temperatures

Figure 7. Return Loss vs. Frequency

Figure 8. Noise Figure vs. Frequency

Figure 9. Gain vs. Frequency at Various Temperatures, 3.0 GHz to 4.2 GHz

Figure 10. Input P1dB vs. Frequency at Various Temperatures

Figure 11. Input IP3 vs. Frequency at Various Temperatures
