P4C1023/P4C1023L
Page 4 of 11
Document # SRAM126 REV OR
Notes:
1. WE is HIGH for READ cycle.
2. CE and OE are LOW for READ cycle.
3. ADDRESS must be valid prior to, or coincident with later of
CE transition LOW.

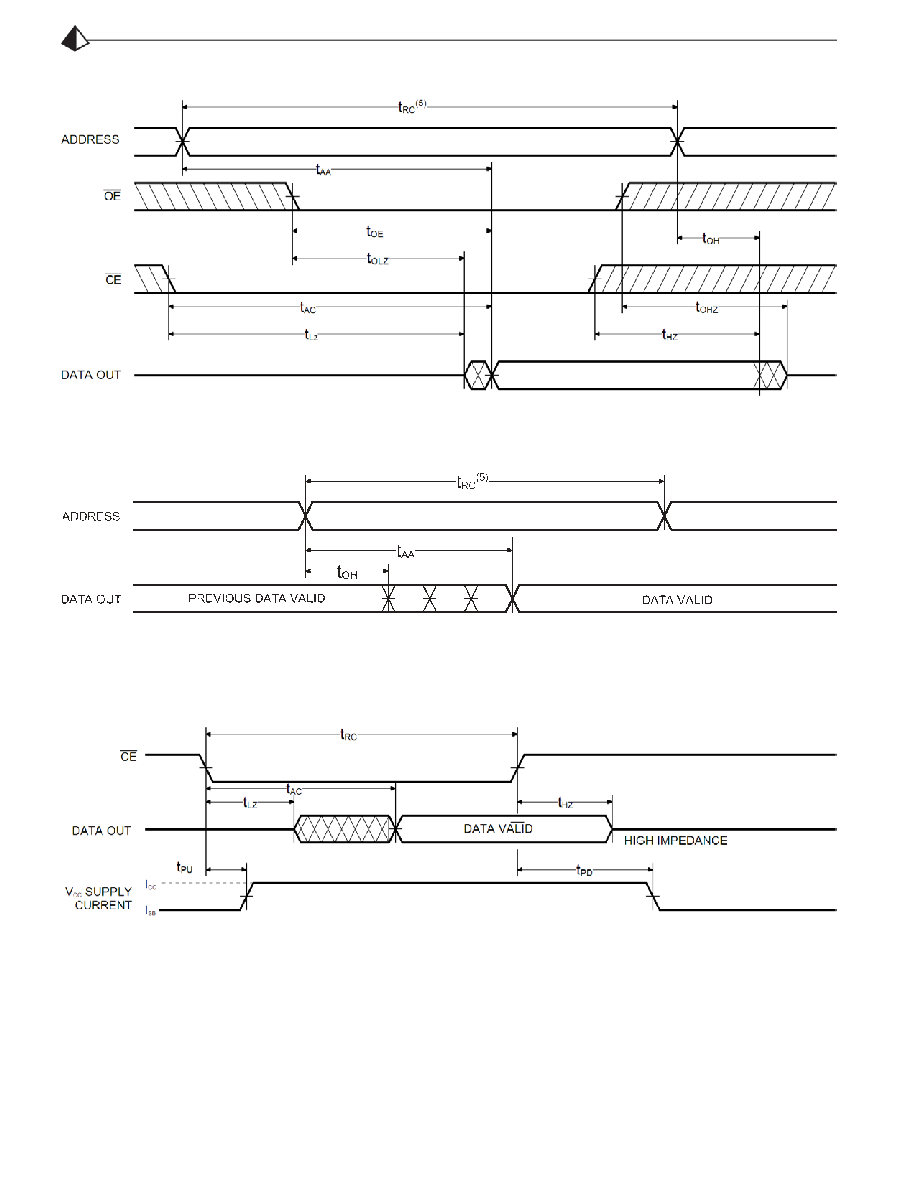

READ CYCLE NO. 1 (OE
OE
OE
OE
OE CONTROLLED)(1)
READ CYCLE NO. 2 (ADDRESS CONTROLLED)
READ CYCLE NO. 3 (CE
CE
CE
CE
CE CONTROLLED)
4. Transition is measured ± 200 mV from steady state voltage prior
to change, with loading as specified in Figure 1. This parameter
is sampled and not 100% tested.
5. READ Cycle Time is measured from the last valid address to the
first transitioning address.
