Data Sheet

ADL5961

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 9 of 34

AVCC = OVCC = 5.0 V, EN = OVDD = 3.3 V, VCM = 2.5 V, TA = 25°C, 50 Ω source and load impedance, continuous wave input at RFIN, ZO =

50 Ω, PRF = 0 dBm, LO drive single-ended, PLO = 0 dBm, fRF = 1 GHz, and fLO = fRF + 500 kHz, unless otherwise noted. BYPASS = 1, FGAIN

= RGAIN = 24, CIF1 = CIF2 = 15. Test circuit shown in Figure 72. A 0.1 μF capacitor was used at RFOUT for all the directivity and voltage

conversion gain measurements.

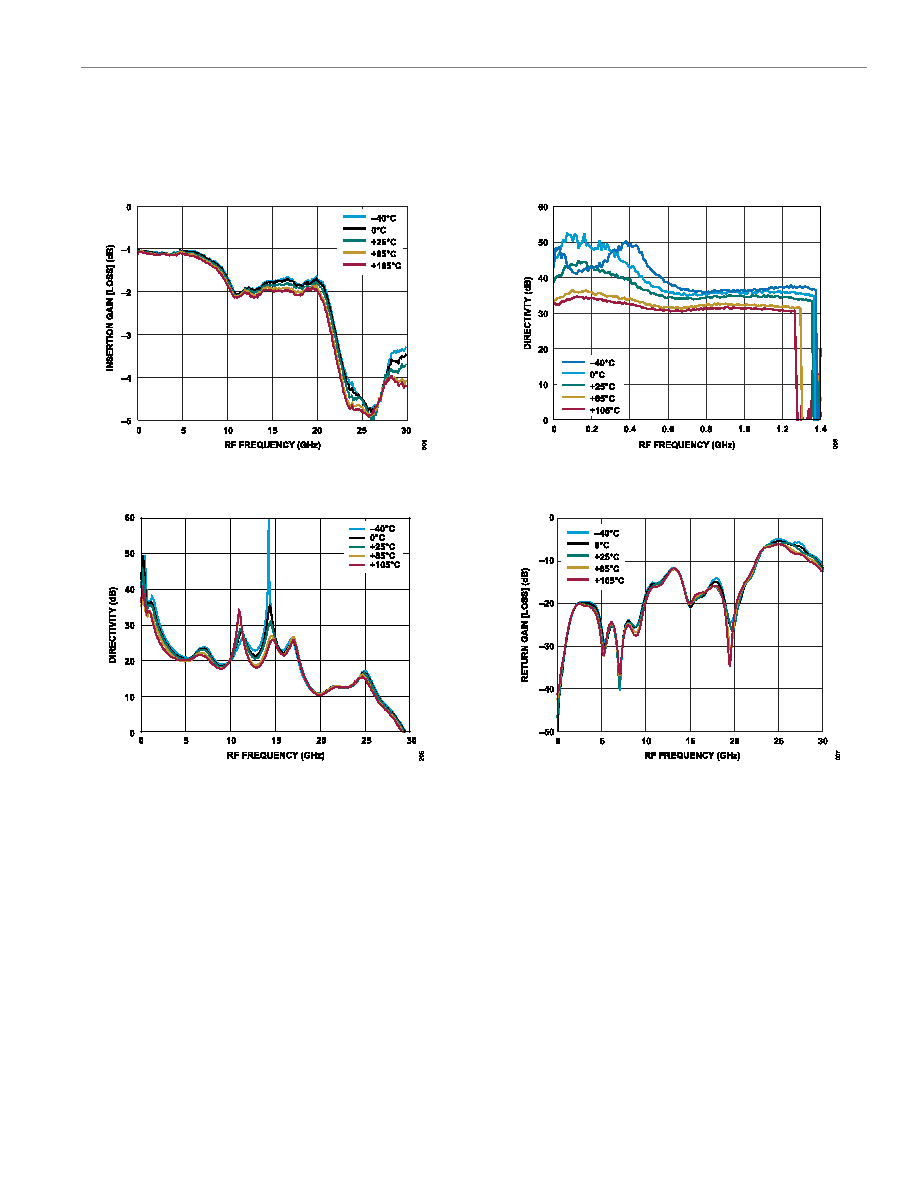

Figure 4. RFIN to RFOUT Insertion Gain (Loss) vs. RF Frequency at Various

Temperatures

Figure 5. Directivity vs. RF Frequency at Various Temperatures,

BYPASS = 1

Figure 6. Directivity vs. RF Frequency at Various Temperatures,

LOMODE = 0, OFMODE = 3

Figure 7. RFIN and RFOUT Return Gain (Loss) vs. RF Frequency at Various

Temperatures
