Data Sheet
ADL5961
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 11 of 34

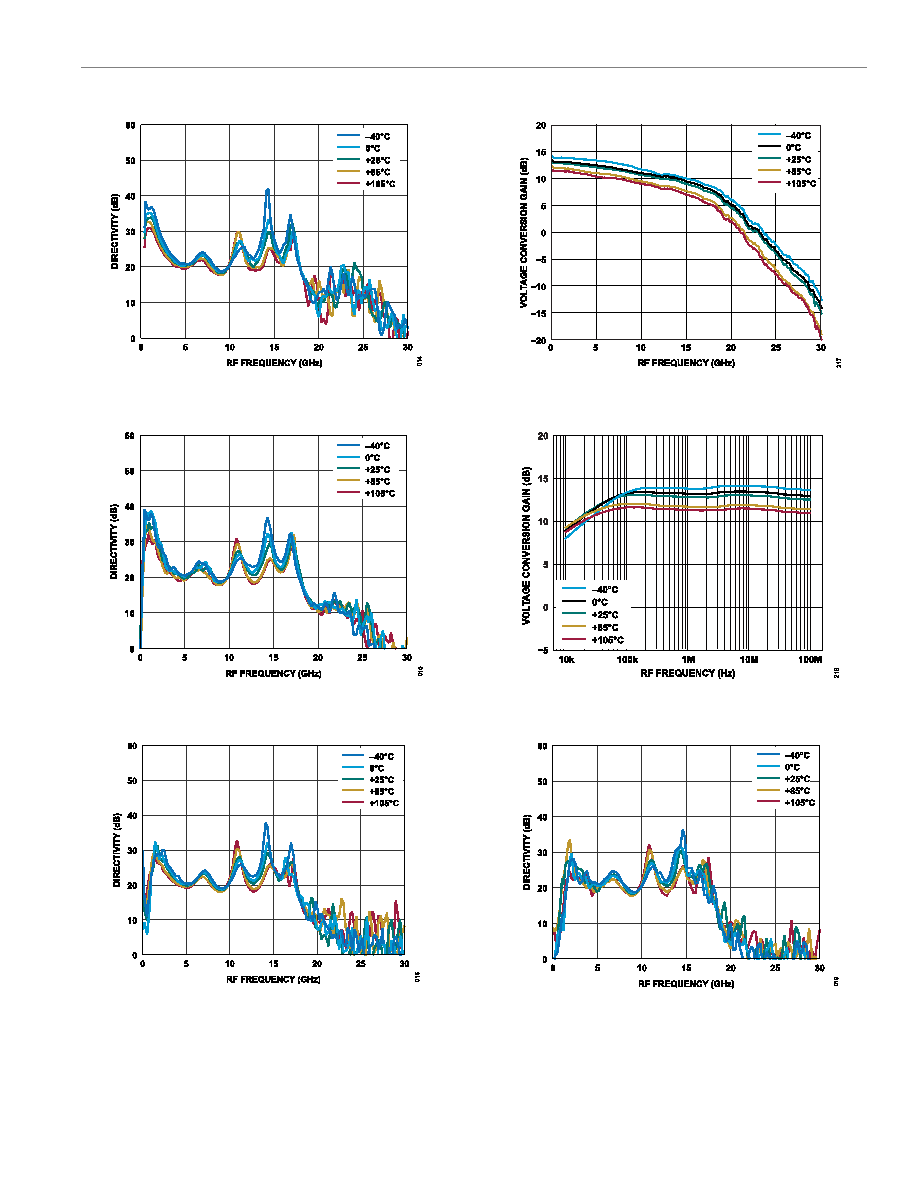

Figure 14. Directivity vs. RF Frequency at Various Temepertures,
LOMODE = 1, OFMODE = 2
Figure 15. Directivity vs. RF Frequency at Various Temperatures,
LOMODE = 2, OFMODE = 2
Figure 16. Directivity vs. RF Frequency at Various Temperatures,
LOMODE = 3, OFMODE = 3
Figure 17. Voltage Conversion Gain vs. RF Frequency at Various
Temperatures
Figure 18. Voltage Conversion Gain vs. RF Frequency at Various
Temperatures, LOMODE = 0, OFMODE = 3
Figure 19. Directivity vs. RF Frequency at Various Temperatures,
LOMODE = 3, OFMODE = 2
