Data Sheet

ADL5511

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. E | 15 of 26

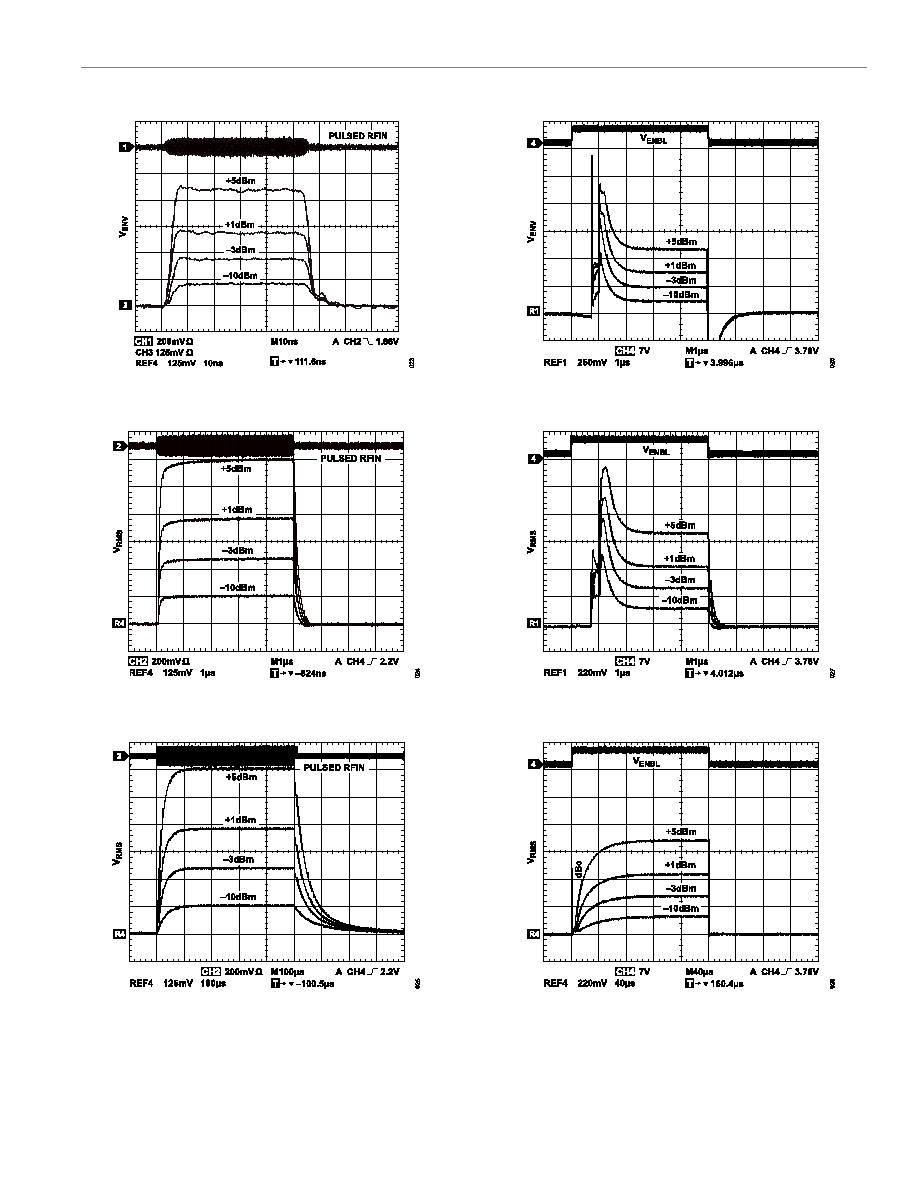

Figure 40. VENV Output Response to Various RF Input Pulse Levels900 MHz

Frequency

Figure 41. VRMS Output Response to Various RF Input Pulse Levels900 MHz

Frequency, CFLT4 = Open

Figure 42. VRMS Output Response to Various RF Input Pulse Levels,900 MHz

Frequency, CFLT4 = 100 nF

Figure 43. VENV Output Response to Enable Gating at Various RF Input

Levels, 900 MHz Frequency

Figure 44. VRMS Output Response to Enable Gating at Various RF Input

Levels, 900 MHz Frequency, CFLT4 = Open

Figure 45. VRMS Output Response to Enable Gating at Various RF Input

Levels, 900 MHz Frequency, CFLT4 = 100 nF
