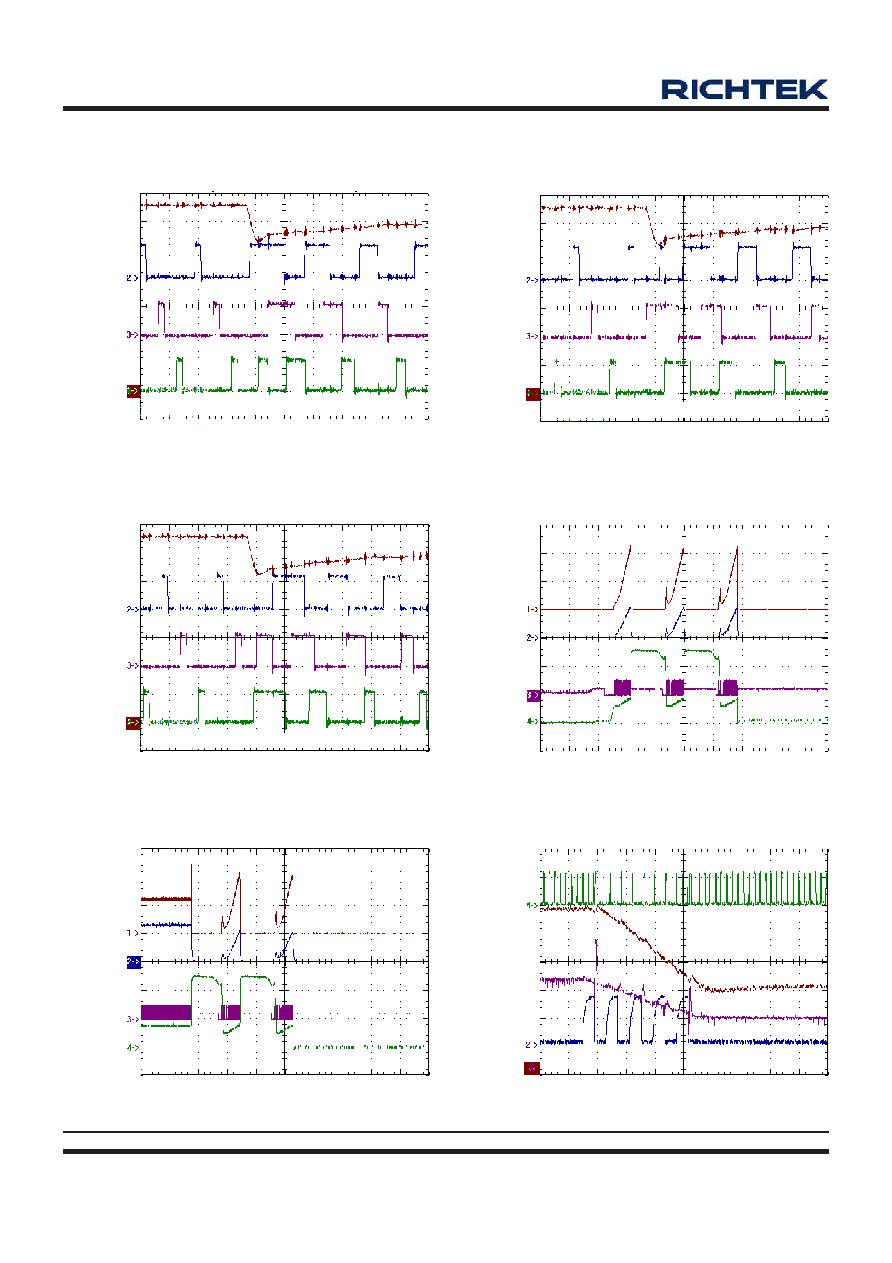

8 / 21 page  RT8800A 8 DS8800A-04 August 2007 www.richtek.com All brand name or trademark belong to their owner respectively Time (25 μs/Div) VID On the Fly Falling VFB (200mV/Div) VID0 (2V/Div) PWM (5V/Div) VCORE (100mV/Div) IOUT = 5A Time (2.5 μs/Div) Load Transient Response UGATE1 (20V/Div) VCORE (200mV/Div) UGATE2 (20V/Div) UGATE3 (20V/Div) phase 1, IOUT = 5A to 85A @SR = 93A/us) Time (2.5 μs/Div) Load Transient Response UGATE1 (20V/Div) VCORE (200mV/Div) UGATE2 (20V/Div) UGATE3 (20V/Div) phase 3, IOUT = 5A to 85A @SR = 93A/us) Time (10ms/Div) Over Current Protection IL1+IL2 (50A/Div) VCORE (1V/Div) PWM1 (10V/Div) VCOMP (2V/Div) Short While Turn_On Time (10ms/Div) Over Current Protection IL1+IL2 (50A/Div) VCOMP (2V/Div) PWM1 (10V/Div) VCORE (1V/Div) Short After Turn_On Time (2.5 μs/Div) Load Transient Response UGATE1 (20V/Div) VCORE (200mV/Div) UGATE2 (20V/Div) UGATE3 (20V/Div) phase2, IOUT = 5A to 85A @SR = 93A/us) |
|
|
