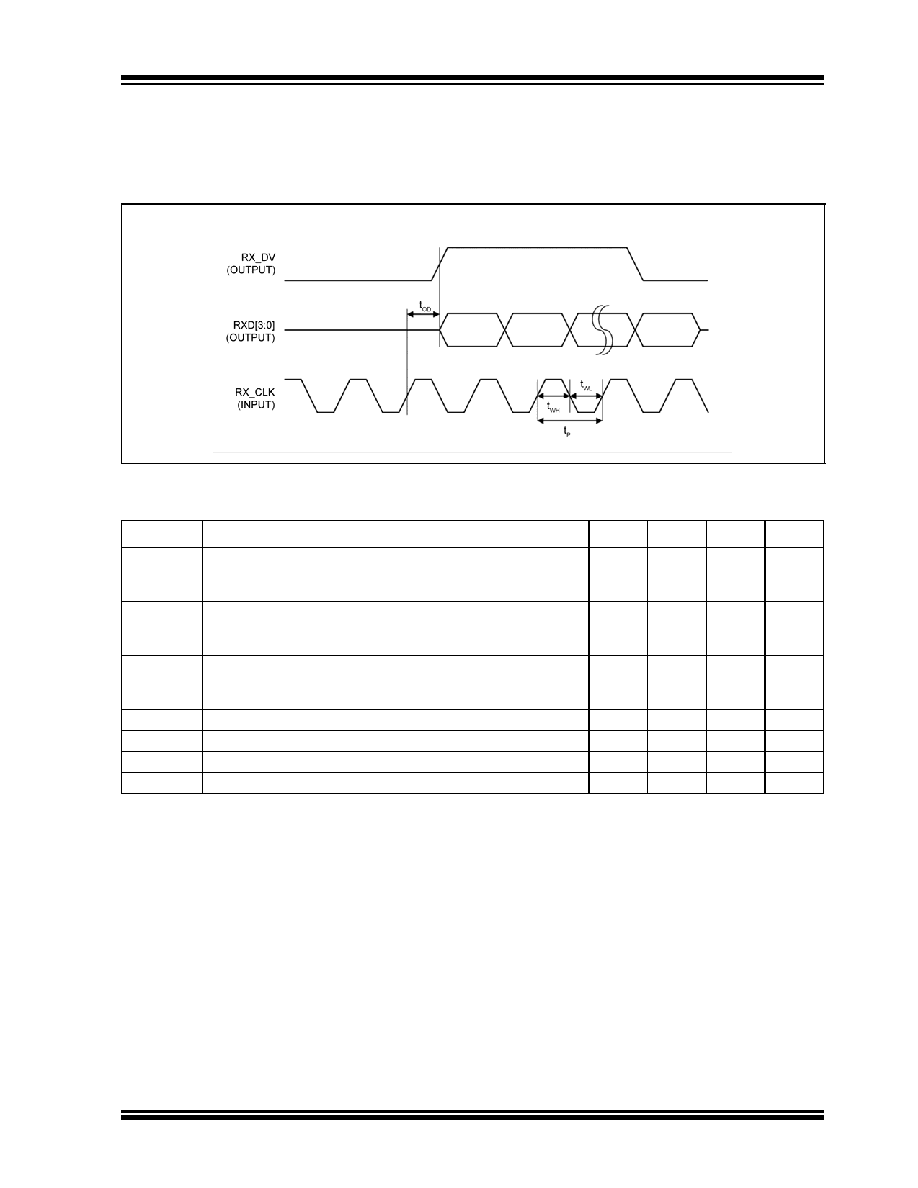

207 / 233 page  2022 Microchip Technology Inc. and its subsidiaries DS00002329E-page 207 KSZ9567R 6.4.2.2 MII Receive Timing in MAC Mode Figure 6-3 illustrates a read operation by the KSZ9567R from a PHY or other device while operating the KSZ9567R in MAC Mode. FIGURE 6-3: MII RECEIVE TIMING IN MAC MODE TABLE 6-4: MII RECEIVE TIMING IN MAC MODE VALUES Symbol Description Min Typ Max Units tP (100BASE-TX / 10BASE-Te) TX_CLK period 40/400 ns tWL (100BASE-TX / 10BASE-Te) TX_CLK pulse width low 20/200 ns tWH (100BASE-TX / 10BASE-Te) TX_CLK pulse width high 20/200 ns tSU1 TXD_[3:0] setup time to rising edge of TX_CLK 10 ns tSU2 TX_EN, TX_ER setup time to rising edge of TX_CLK 10 ns tHD1 TXD_[3:0] hold time from rising edge of TX_CLK 10 ns tHD2 TX_EN, TX_ER hold time from rising edge of TX_CLK 10 ns |
|
