 2022 Microchip Technology Inc. and its subsidiaries
DS00002329E-page 211
KSZ9567R
6.4.4
MIIM TIMING

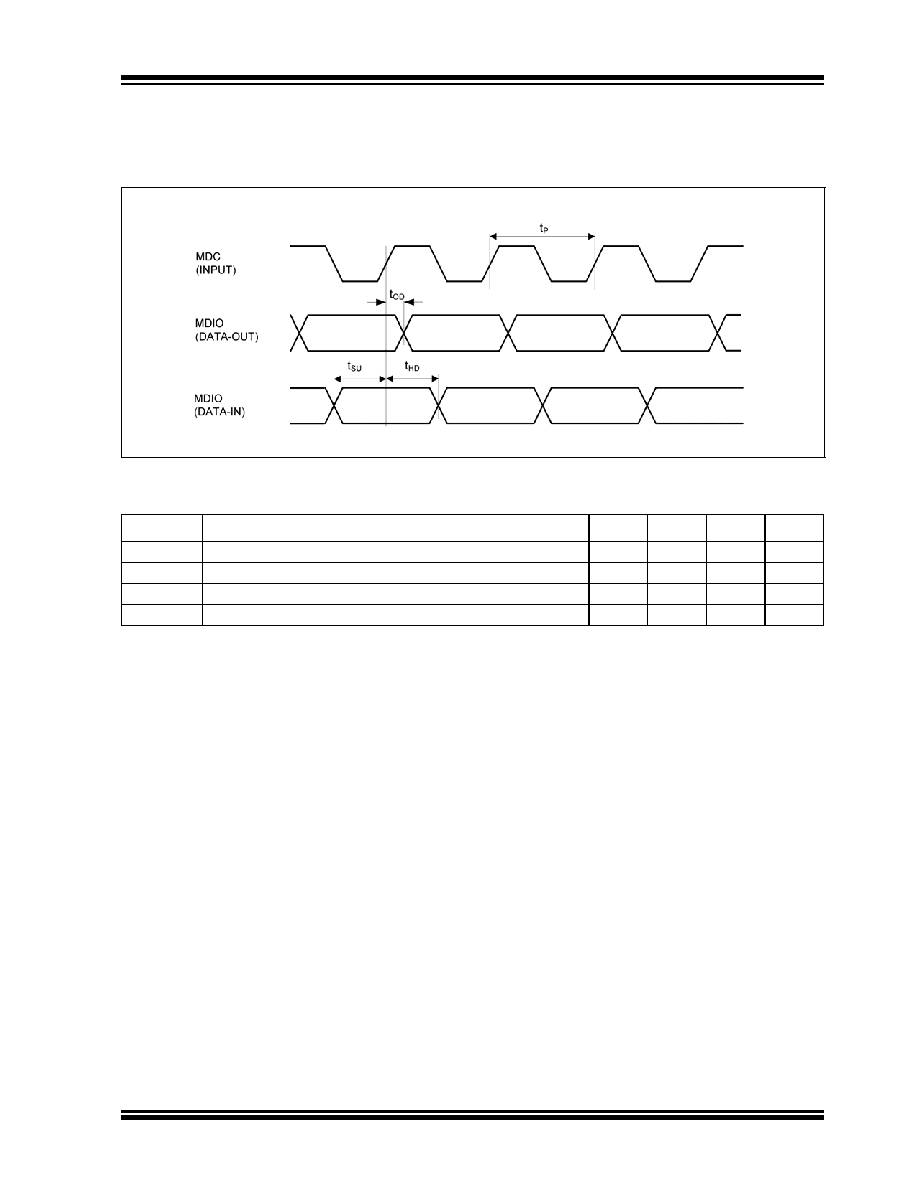

Figure 6-8 illustrates the MIIM timing requirements.
FIGURE 6-8:
MIIM TIMING
TABLE 6-8:
MIIM TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tP
MDC period
400
ns
tOD
Output delay
200
ns
tSU
MDIO setup time to rising edge of MDC
10
ns
tHD
MDIO hold time from rising edge of MDC
5ns
