ADA4352-2ACPZ-R7 데이터시트(PDF) 46 Page - Analog Devices

부품명 ADA4352-2ACPZ-R7
상세설명  Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA) with Integrated Gain Resistors
PDF  47 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADA4352-2ACPZ-R7 데이터시트(HTML) 46 Page - Analog Devices

Back Button ADA4352-2ACPZ-R7 Datasheet HTML 39Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 40Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 41Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 42Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 43Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 44Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 45Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 46Page - Analog Devices ADA4352-2ACPZ-R7 Datasheet HTML 47Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 46 / 47 page
background image
Data Sheet
ADA4352-2
analog.com
Rev 0
46 of 47

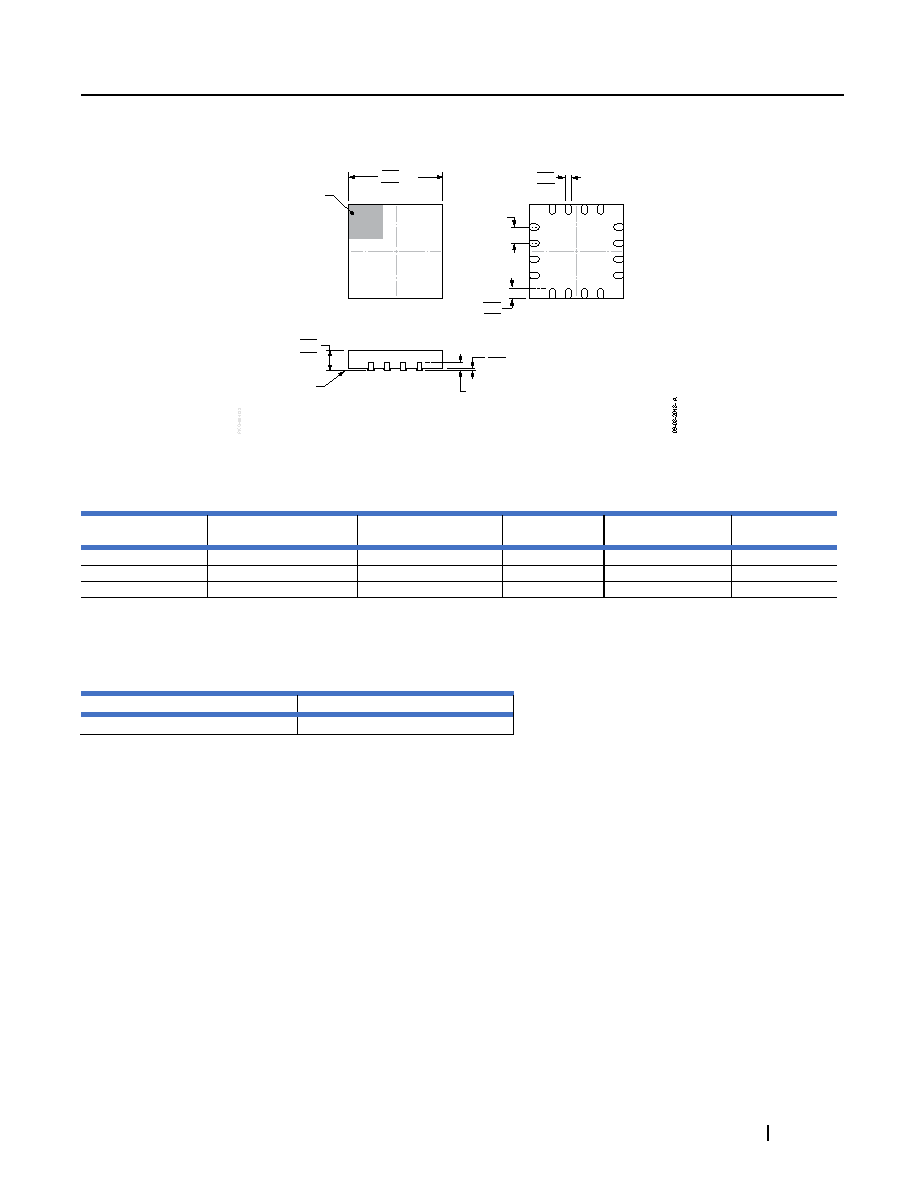

OUTLINE DIMENSIONS
ORDERING GUIDE
Table 11. Ordering Guide
Model
Temperature Range
Package Description
Packaging
Quantity
Package Option
Marking Code
ADA4352-2ACPZ
−40°C to +125°C
16-Lead LFCSP
Tray, 714
CP-16-32
A4Q
ADA4352-2ACPZ-R7
−40°C to +125°C
16-Lead LFCSP
Reel, 1500
CP-16-32
A4Q
ADA4352-2ACPZ-RL
−40°C to +125°C
16-Lead LFCSP
Reel, 5000
CP-16-32
A4Q
EVALUATION BOARD
Table 12. Evaluation Board
Model
Description
EVAL-ADA4352-2EBZ
Evaluation Board
COMPLIANT TO JEDEC STANDARDS MO-220-WEED.
3.10
3.00 SQ
2.90
0.30
0.25
0.20
1
0.50
BSC
BOTTOM VIEW
TOP VIEW
16
5
8
9
12
13
4
0.50
0.40
0.30
SEATING
PLANE
0.05 MAX
0.02 NOM
0.152 REF
COPLANARITY
0.08
PIN 1
INDICATOR
0.80
0.75
0.70
