Data Sheet
ADA4352-2
analog.com
Rev 0
16 of 47

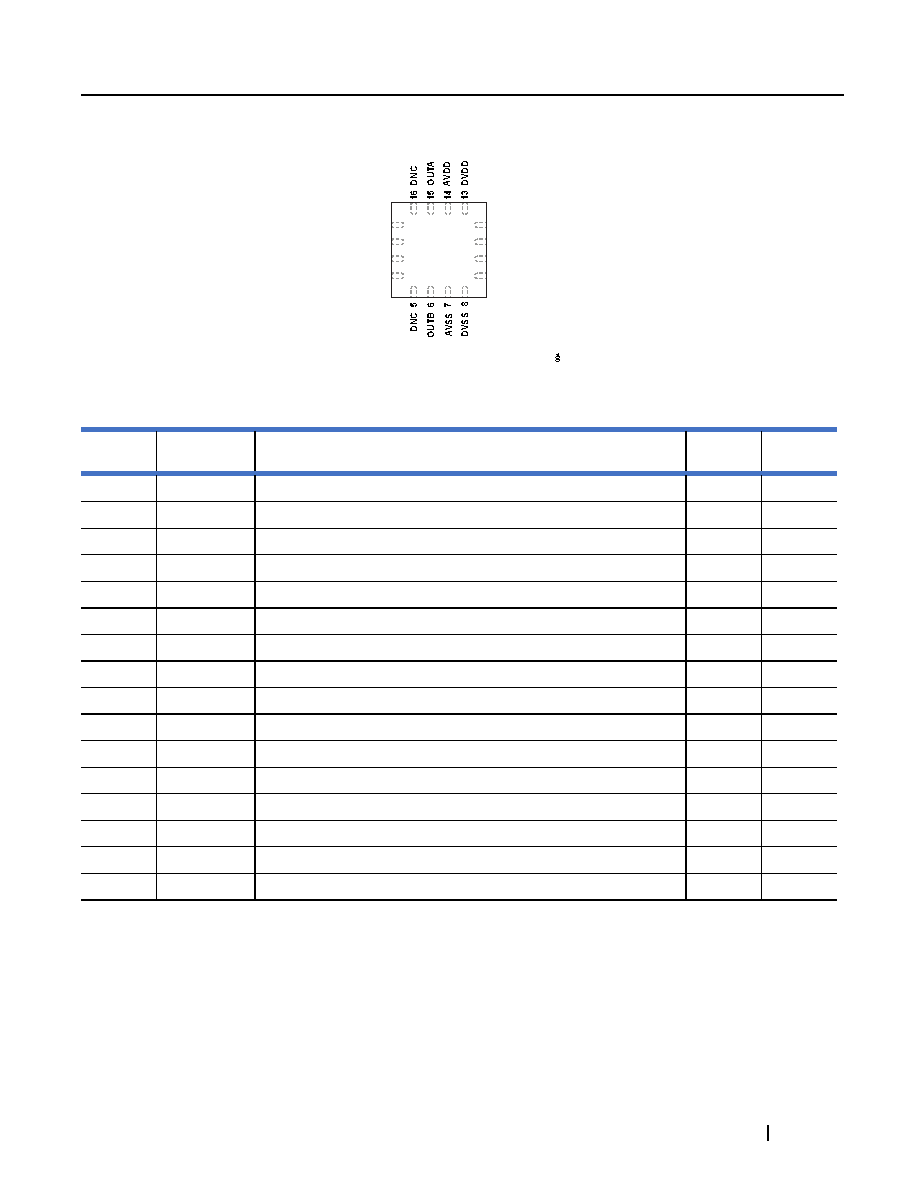

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
Figure 4. Pin Configuration
Table 6. Pin Descriptions
PIN
NAME
DESCRIPTION
REF
SUPPLY
Type
1
−INA
Channel A TIA Inverting Input
AVDD
IN
2
+INA
Channel A TIA Noninverting Input
AVDD
IN
3
+INB
Channel B TIA Noninverting Input
AVDD
IN
4
−INB
Channel B TIA Inverting Input
AVDD
IN
5
DNC
Reserved - Do Not Connect
6
OUT B
Channel B TIA Output
AVDD
OUT
7
AVSS
Negative Analog Supply
POWER
8
DVSS
Negative Digital Supply
POWER
9
SW SEL0 B
Channel B Range Selection Input 0
DVDD
IN
10
SW SEL1 B
Channel B Range Selection Input 1
DVDD
IN
11
SW SEL1 A
Channel A Range Selection Input 1
DVDD
IN
12
SW SEL0 A
Channel A Range Selection Input 0
DVDD
IN
13
DVDD
Positive Digital Supply
POWER
14
AVDD
Positive Analog Supply
POWER
15
OUT A
Channel A TIA Output
AVDD
OUT
16
DNC
Reserved - Do Not Connect
12
11
10
1
3
4
9
2
NOTES
1. DNC = DO NOT CONNECT.
–IN A
+IN A
+IN B
–IN B
SW SEL0 A
SW SEL1 A
SW SEL1 B
SW SEL0 B
ADA4352-2
TOP VIEW
(Not to Scale)
