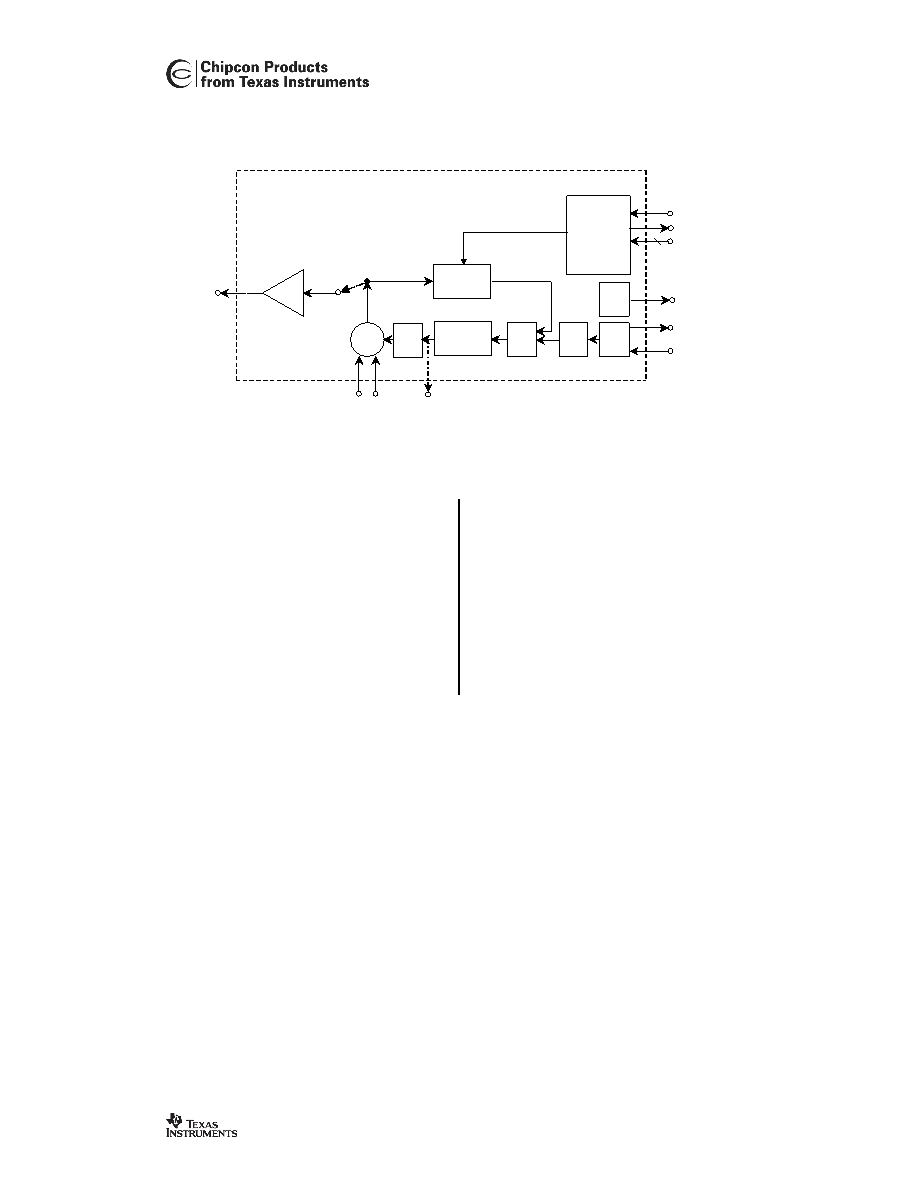

8 / 43 page ![]() CC1050 SWRS044 Page 8 of 40 Circuit Description Figure 1. Simplified block diagram A simplified block diagram of CC1050 is shown in Figure 1. Only signal pins are shown. The voltage controlled oscillator (VCO) output signal is fed directly to the power amplifier (PA). The RF output is frequency shift keyed (FSK) by the digital bit stream fed to the pin DI. The single ended PA makes the antenna interface and matching very easy. The frequency synthesiser generates the local oscillator signal which is fed to the PA in transmit mode. The frequency synthesiser consists of a crystal oscillator (OSC), phase detector (PD), charge pump (CHARGE PUMP), VCO, and frequency dividers (/R and /N). An external crystal must be connected to XOSC, and only an external inductor is required for the VCO. The 3-wire digital serial interface (CONTROL) is used for configuration. PDATA, PCLK, PALE PA VCO PD OSC ~ /N CHARGE PUMP L1 DI CHP_OUT RF_OUT 3 CONTROL XOSC_Q2 XOSC_Q1 /R DCLK L2 LPF BIAS R_BIAS PDATA, PCLK, PALE PA VCO PD OSC ~ /N CHARGE PUMP L1 DI CHP_OUT RF_OUT 3 CONTROL XOSC_Q2 XOSC_Q1 /R DCLK L2 LPF BIAS R_BIAS Not Recommended for New Designs |
|
