MAC Interface (RGMII/ GMII/ MII)

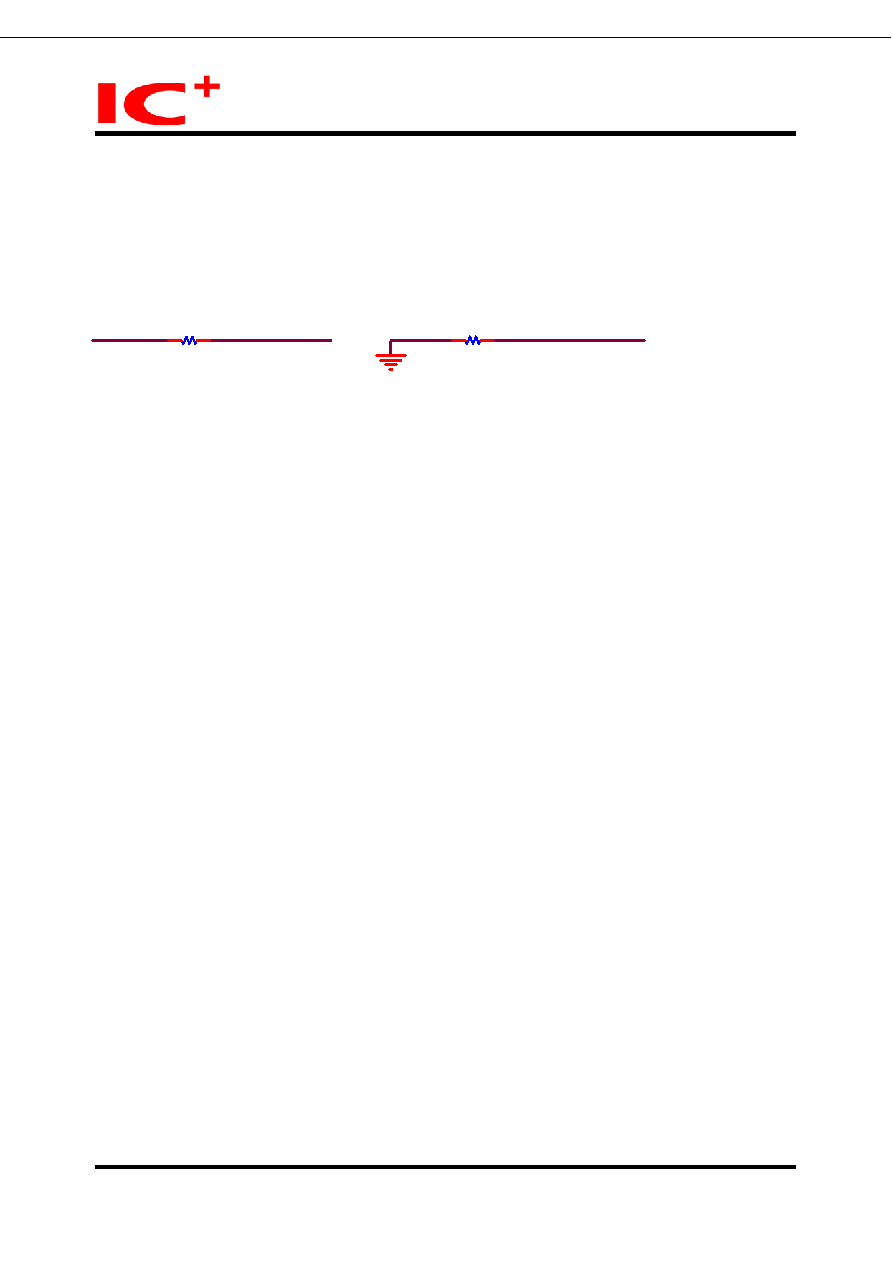

IP1001 supports RGMII and GMII/ MII interfaces. User can select the one of the interfaces by configure pin 36

and IP1001 will latch the setting at the end of hardware reset. If pin 36 is connected to GND through a resistor

R44, RGMII is selected. If pin 36 is connected to VDDO through a resistor R24, GMII/ MII is selected.

R44

5.1K

GMII/MII interface

RGMII interface

17/48

Dec. 18, 2007

IP1001-DS-R06

RGMII_N/GMII

R24

5.1K

RGMII_N/GMII

VDDO

If GMII mode is selected and IP1001 links in 1000BASE-T mode, GTX_CLK, TX_EN, TXD[7:0] and TX_ER

are input signals and should be driven by an external MAC device, TX_CLK is driven low. RX_CLK, CRS,

RX_DV, RXD[7:0], RX_ER and COL are output signals to an external MAC device.

In the 100BASE-TX (10BASE-T) modes, both TX_CLK and RX_CLK source 25 MHz (2.5 MHz) clock

respectively. TX_EN, TXD[3:0] and TX_ER are input signal and should be driven by an external MAC device.

RX_CLK, CRS, RX_DV, RXD[3:0], RX_ER and COL are output signals to an external MAC device. GTX_CLK

and TXD[7:4] signals are ignored and RXD[7:4] drives low.

If RGMII mode is selected, TXC, TX_CTL and TXD[3:0] are input signals and should be driven by an external

MAC device, TX_CLK is driven low. RXC, RX_CTL and RXD[3:0] are output signals to an external MAC

device. RXC provides a 125 Mhz, 25 Mhz or 2.5 Mhz reference clock depending on the link speed is 1000M,

100M or 10M.

A timing adjustment on MAC interface is implemented in IP1001 by adding delay to the clock pins and

changing driving capability on RX pins. User can add input delay to the GTX_CLK(TXC) by programming pin

49 TXPHASE_SEL or register 16.1 or add output delay to the RX_CLK(RXC) by programming pin 48

RXPHASE_SEL or register 16.0. The driving capability of RX signals can be configured by programming MII
