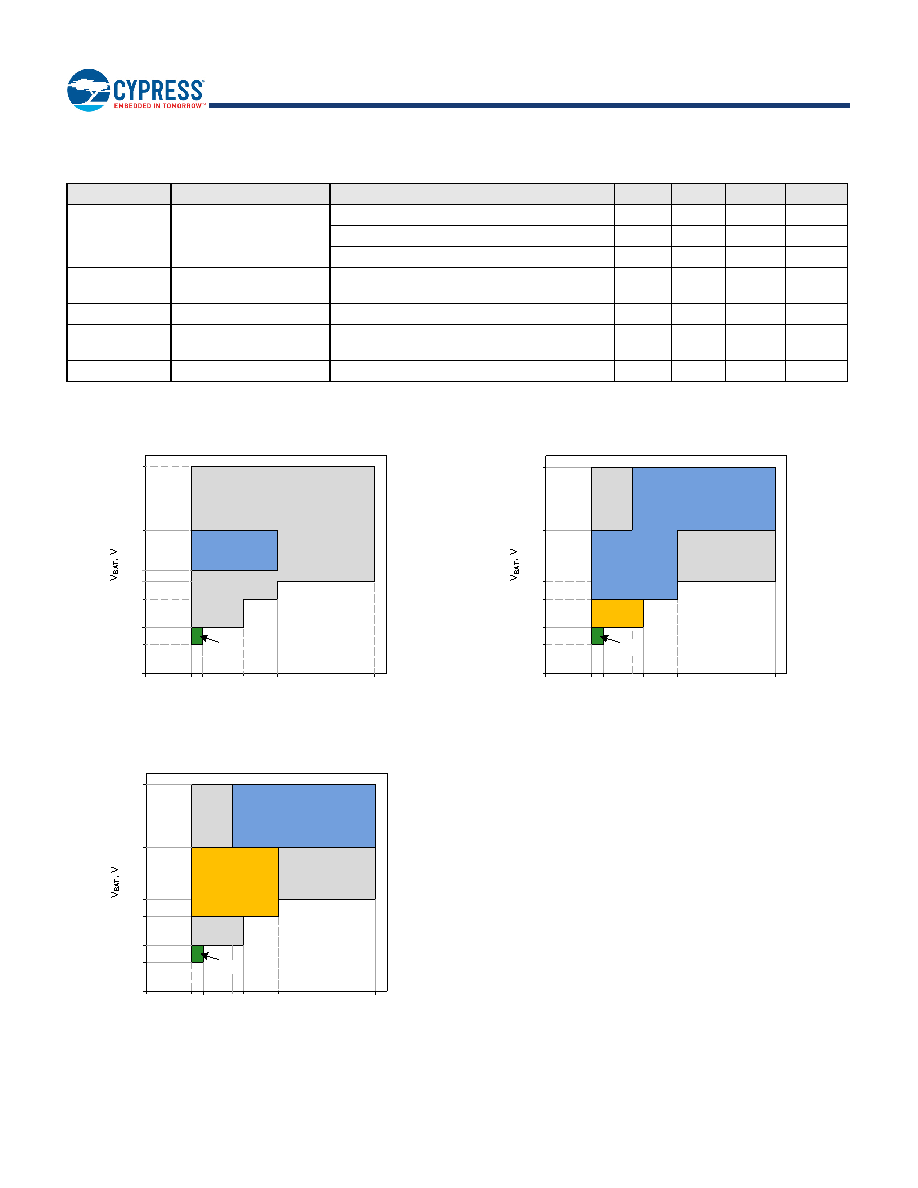

75 / 140 page  Document Number: 001-84932 Rev. *N Page 74 of 139 PSoC® 5LP: CY8C58LP Family Datasheet Figure 11-8. TA range over VBAT and VOUT Figure 11-9. IOUT range over VBAT and VOUT Figure 11-10. LBOOST values over VBAT and VOUT Table 11-7. Recommended External Components for Boost Circuit Parameter Description Conditions Min Typ Max Units LBOOST Boost inductor 4.7 µH nominal 3.7 4.7 5.7 µH 10 µH nominal 8.0 10.0 12.0 µH 22 µH nominal 17.0 22.0 27.0 µH CBOOST Total capacitance sum of VDDD, VDDA, VDDIO[32] 17.0 26.0 31.0 µF CBAT Battery filter capacitor 17.0 22.0 27.0 µF IF Schottky diode average forward current 1.0 – – A VR Schottky reverse voltage 20.0 – – V ± & ± µ& ± & ± & ± & 1R %RRVW 9287 9 P$ P$ P$ P$ 1R %RRVW 9287 9 P$ 9287 9 + + + 1R %RRVW + + + + + + + ,287 P$ + + ,287 P$ + Note 32. Based on device characterization (Not production tested). |
|
