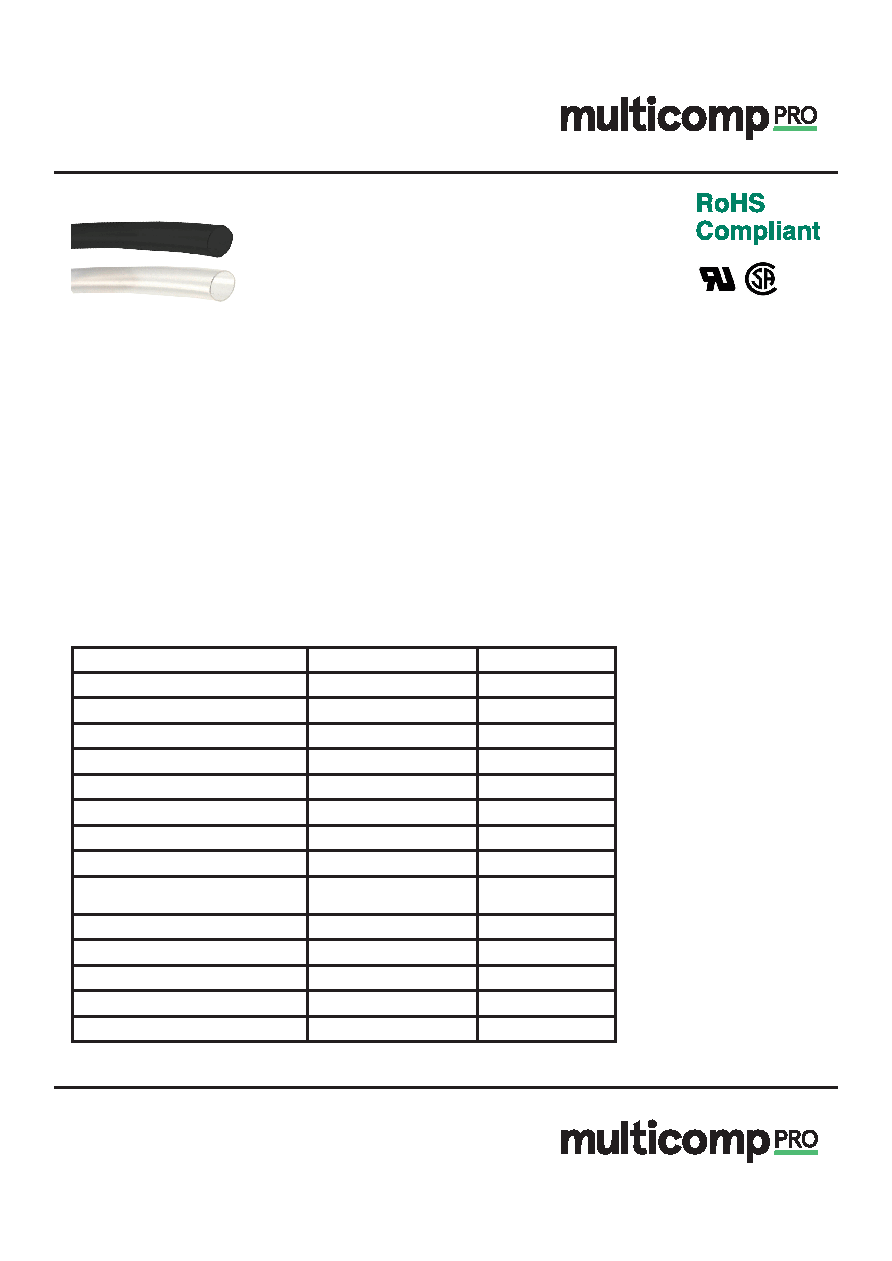

PVC Insulating Tubing

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

Element14.com/multicomp-pro

Specifications:

Body Material

: PVC

For Use With

: Cable & Wire

Sleeving / Tubing Type

: Insulating

Operating Temperature Range

: -20°C to +105°C

Features:

• UL Subject 224 VW-1. CSA OFT, Size# 24 - Size# 1 rated for 300V, Size 5/16” to 2” rated for 600V. ASTM D 922.

AMS 3631. MIL-1-631 D Grade C QPL Approved.

• UL File No. E52331

Property

Test Method

Typical Volume

Specific Gravity

ASTM D 792

1.32

Durometer Shore A

ASTM D 2240

91

Tensile Strength

ASTM D 876

2,800psi

Elongation

ASTM D 876

2.88

Brittleness Temperature

ASTM D 746

-20°C

Heat Aging 7 Days @ 136°C

UL Subject 224

81%

Heat Aging 14 Days@ 131°C

CSA 22.2 No.198

Pass

Oil Aging 4 Hours @ 70°C SAE 20

CSA 22.2 No.198

85%

Insulating Varnish Test 20 hours @

150°C in lsonel 31

CSA 22.2 No.198

Pass

Flammability

UL Subject 224 VW-1

Pass

Deformation 1 hour @ 121°c

UL Subject 224

22%

Volume Resistivity

ASTM D 257

5.4 × 1012

Dielectric Constant @ 1 KHz

ASTM D 150

6.0

Dissipation Factor@ 1KHz

ASTM D 150

0.09
