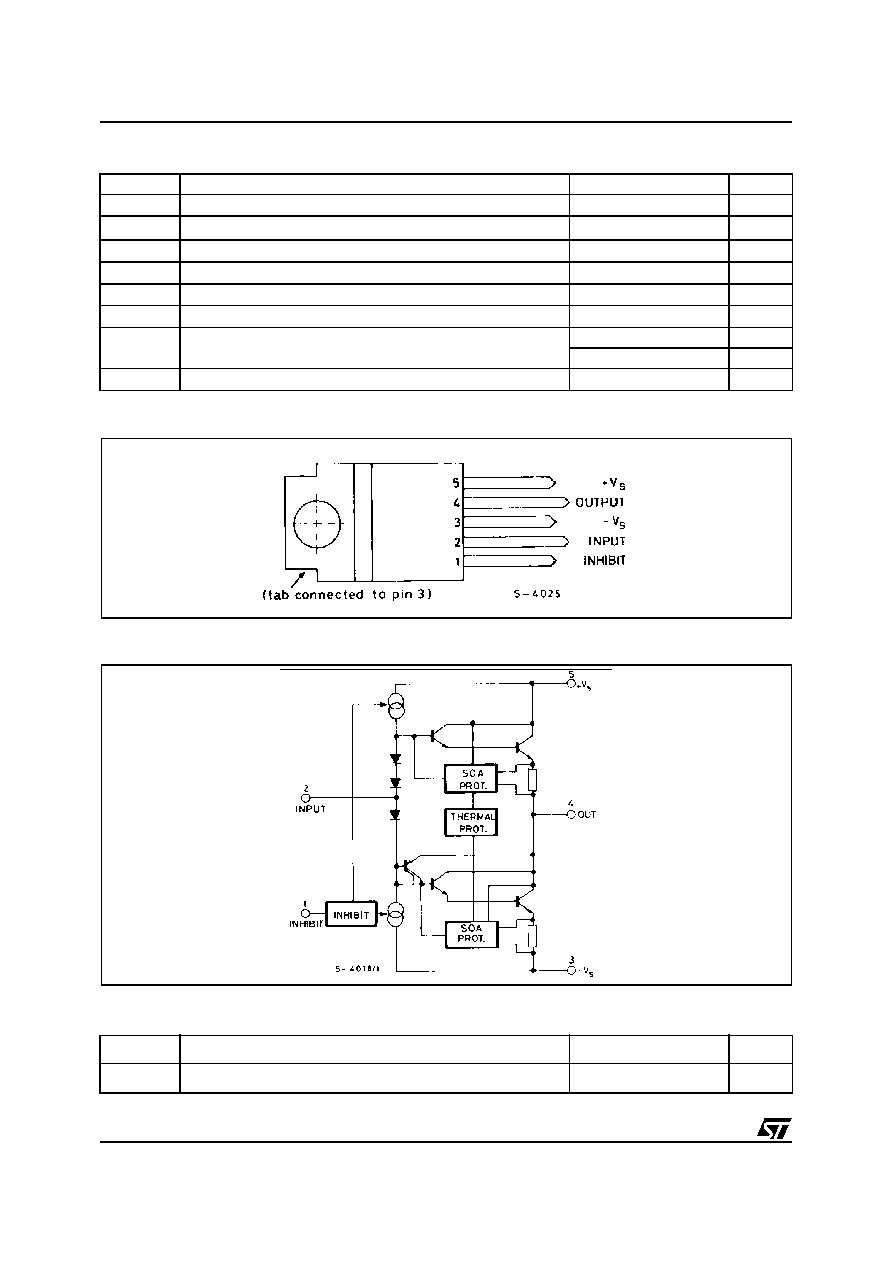

background image
L149
2/6
ABSOLUTE MAXIMUM RATINGS
PIN CONNECTION (Top view)
SCHEMATIC DIAGRAM
THERMAL DATA
Symbol
Parameter
Value
Unit
VS
Supply Voltage
±20
V
Vi
Input Voltage
Vs
V5 - V4
Upper Power Transistor VCE
40
V
V4 - V3
Lower Power Transistor VCE
40
V
IO
DC Output Current
3
A
IO
Peak Output Current (internally limited)
4
A
VINH
Input Inhibit Voltage
- Vs + 5
V
- Vs - 1.5
V
Ptot
Total Power Dissipation at Tcase = 75 °C)
25
W
Symbol
Parameter
Value
Unit
Rth-j-case
Thermal resistance junction-case
max
3
°C/W
