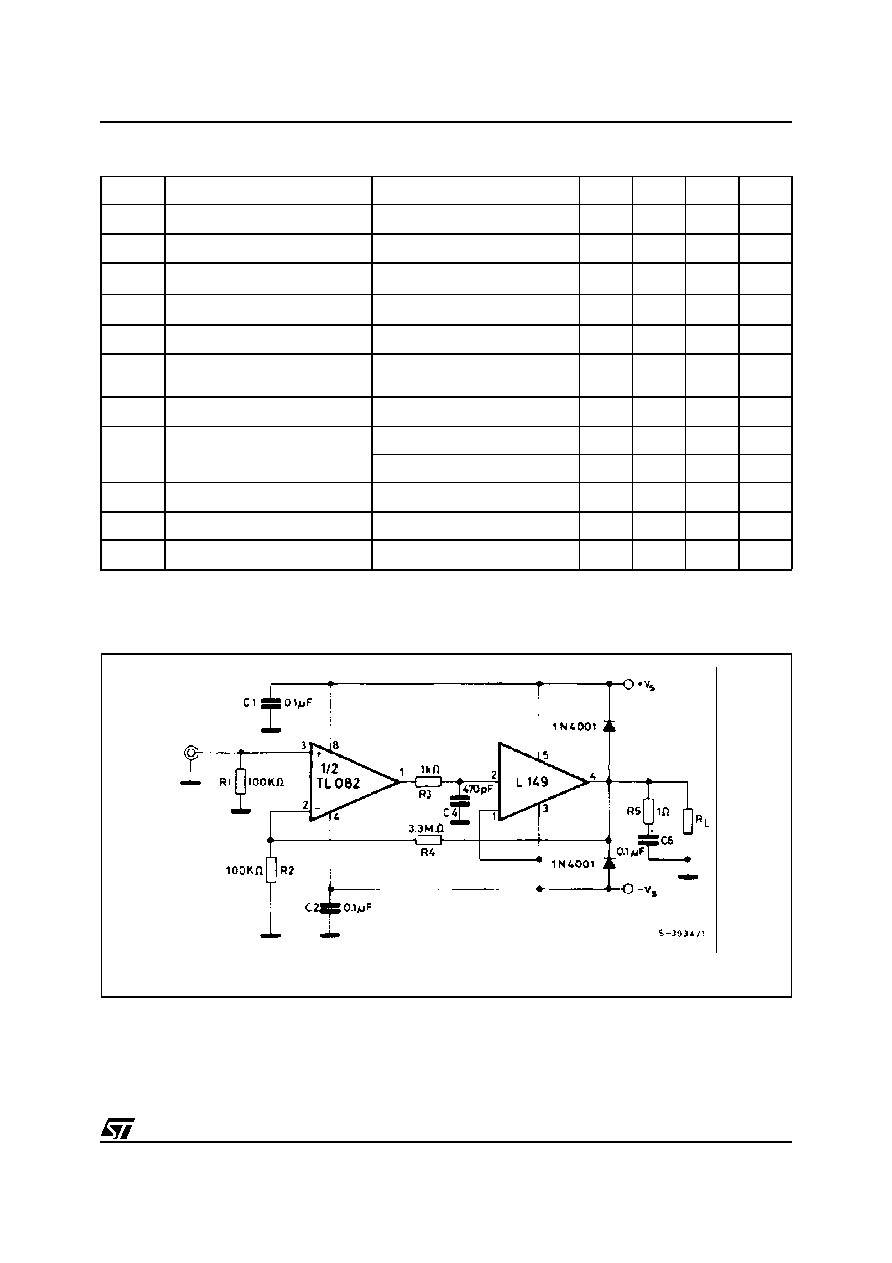

background image
3/6
L149
ELECTRICAL CHARACTERISTCS (Tj = 25 °C, VS = ± 16V)
APPLICATION INFORMATION
Figure 1. High slew-rate power operational amplifier (SR = 13V/
µs)
Symbol
Parameter
Test Condition
Min.
Typ.
Max.
Unit
VS
Supply Voltage
± 20
V
Id
Quiescent Drain Current
VS = ± 16V
30
mA
Iin
Input current
VS = ± 16V; Vi = 0V
200
400
µA
hFE
DC current drain
VS = ± 16V; IO = 3A
6000
10000
-
GV
Voltage gain
VS = ± 16V; IO = 1.5A
1
-
VCEsat
Saturation voltage (for each
transistor)
IO = 3A
3.5
V
VOS
Input offset voltage
VS = ± 16V
0.3
V
VINH
Inhibit input voltage (pins 1-3)
ON condition
± 0.3
V
OFF condition
± 1.8
V
RINH
Inhibit input resistance
2.0
K
Ω
SR
Slew rate
30
V/
µs
B
Power bandwidth
VO = ± 10V, d = 1%, RL = 8Ω
200
KHZ
