ADL5382

Rev. 0 | Page 9 of 28

BASEBAND FREQUENCY (MHz)

102030

4050

IIP2

IIP3

I CHANNEL

Q CHANNEL

IP1dB

TA = –40°C

TA = +25°C

TA = +85°C

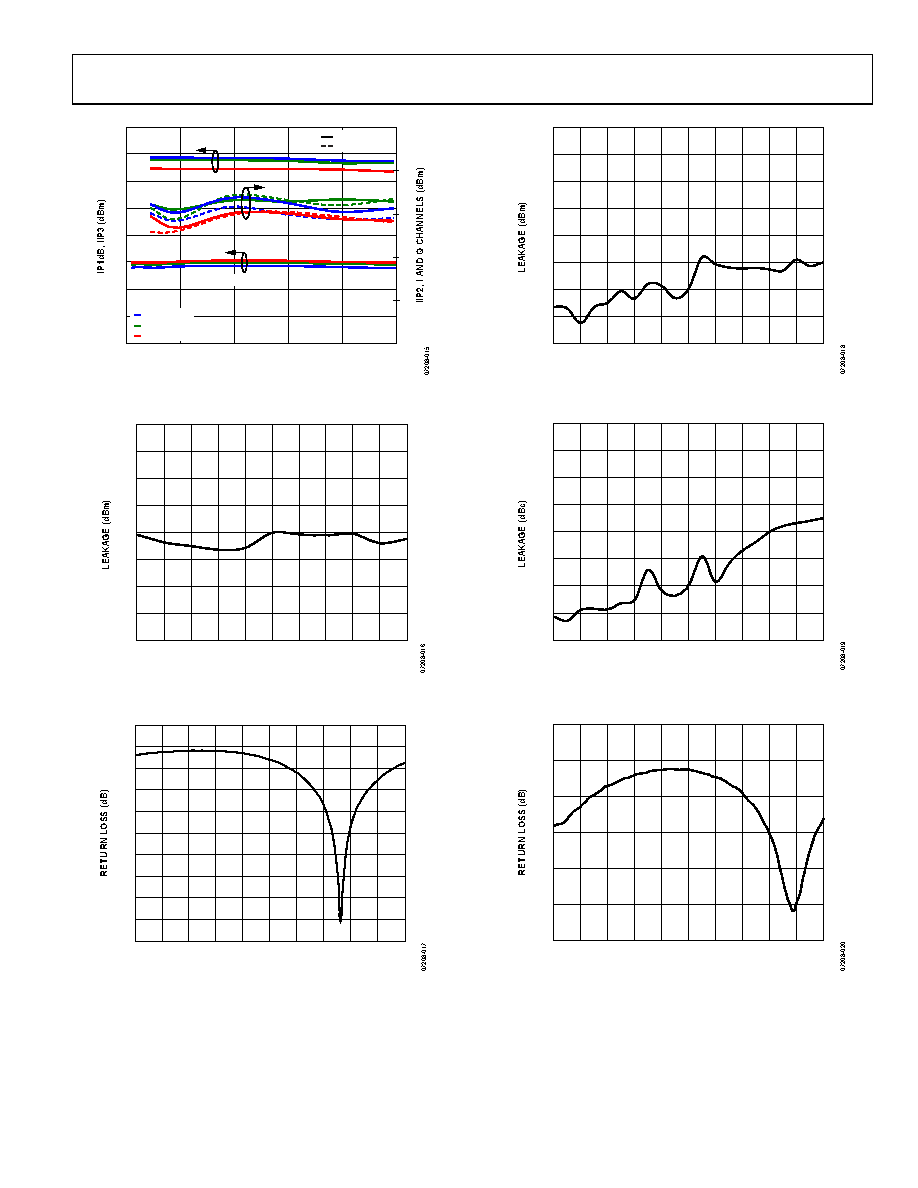

Figure 15. IP1dB, IIP3, and IIP2 vs. Baseband Frequency

–80

–70

–60

–50

–40

–30

–20

–10

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

LO FREQUENCY (MHz)

Figure 16. LO-to-BB Leakage vs. LO Frequency

–50

–45

–40

–35

–30

–25

–20

–15

–10

–5

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

Figure 17. RF Port Return Loss vs. RF Frequency Measured on a Characterization

Board through an ETC1-1-13 Balun with 33 nH Bias Inductors

–100

–90

–80

–70

–60

–50

–40

–30

–20

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

LO FREQUENCY (MHz)

Figure 18. LO-to-RF Leakage vs. LO Frequency

–100

–90

–80

–70

–60

–50

–40

–30

–20

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

Figure 19. RF-to-LO Leakage vs. RF Frequency

–30

–25

–20

–15

–10

–5

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

LO FREQUENCY (MHz)

Figure 20. LO Port Return Loss vs. LO Frequency Measured on

Characterization Board through an ETC1-1-13 Balun
