ADL5382
Rev. 0 | Page 22 of 28
R&S FSEA30
SPECTRUM ANALYZER
HP 6235A
POWER SUPPLY
AGILENT 8665B
SIGNAL GENERATOR
LOW-PASS
FILTER
R&S SMT03
SIGNAL GENERATOR
ADL5382
CHAR BOARD
RF
LO
Q
I
GND
VPOS
6dB PAD
R1
50Ω
BAND-PASS
CAVITY FILTER
BAND-PASS
TUNABLE FILTER
BAND-REJECT
TUNABLE FILTER
HP87405
LOW NOISE
PREAMP

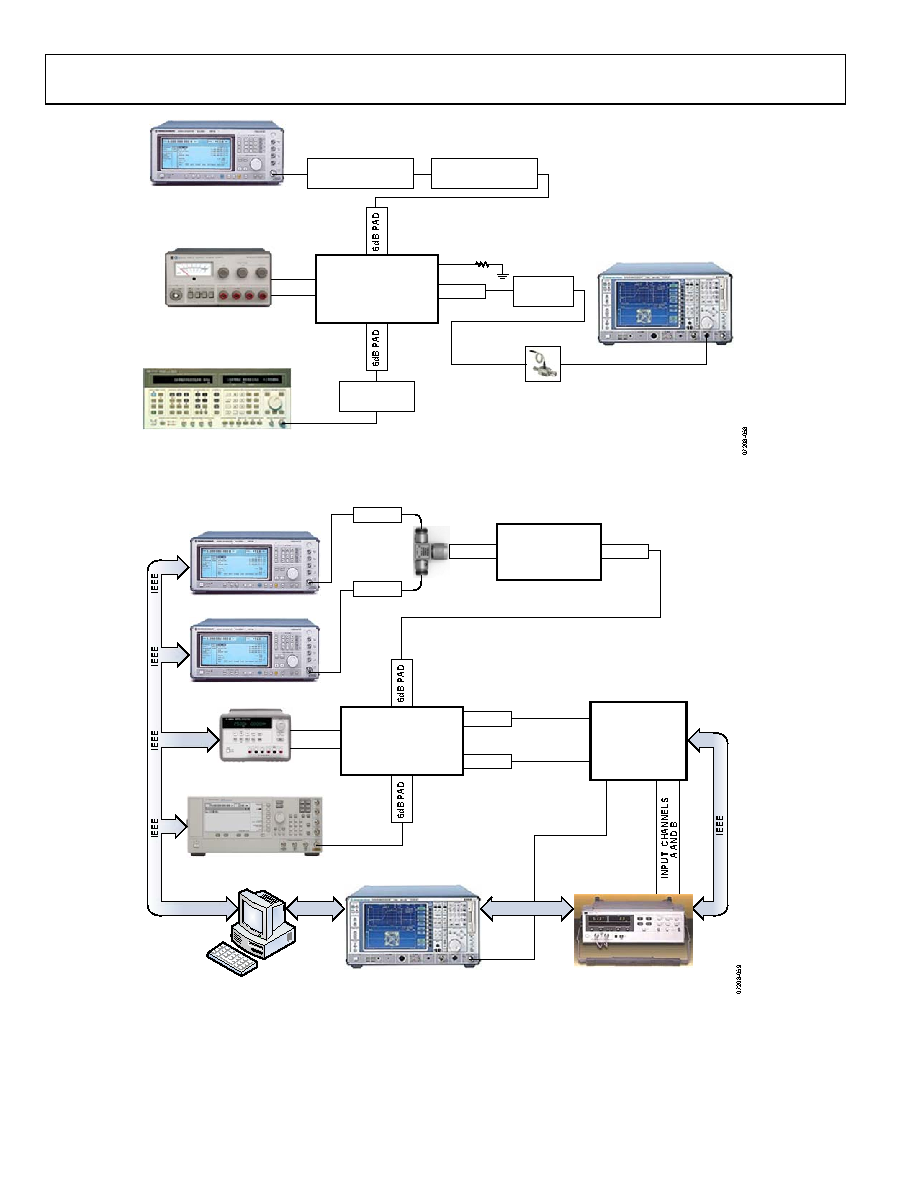

Figure 58. Measurement Setup for Noise Figure in the Presence of a Blocker
R&S FSEA30
SPECTRUM ANALYZER
HP 8508A
VECTOR VOLTMETER
R&S SMT06
AGILENT E3631
PWER SUPPLY
AGILENT E8257D
SIGNAL GENERATOR
PC CONTROLLER
R&S SMT06
IEEE
IEEE
ADL5382
CHAR BOARD
RF
LO
Q
I
GND
VPOS
6dB PAD
6dB PAD
SWITCH
MATRIX
RF
AMPLIFIER
VP GND
OUT
IN
3dB PAD
3dB PAD
3dB PAD
3dB PAD
RF
RF
AGILENT
11636A
RF
INPUT
Figure 59. General Characterization Setup
