DIO7758
www.dioo.com
© 2022 DIOO MICROCIRCUITS CO., LTD
DIO7758• Rev. 1.6
VIN = 2.5 V，Vout = 0.8 V，CIN = Cout =1 uF

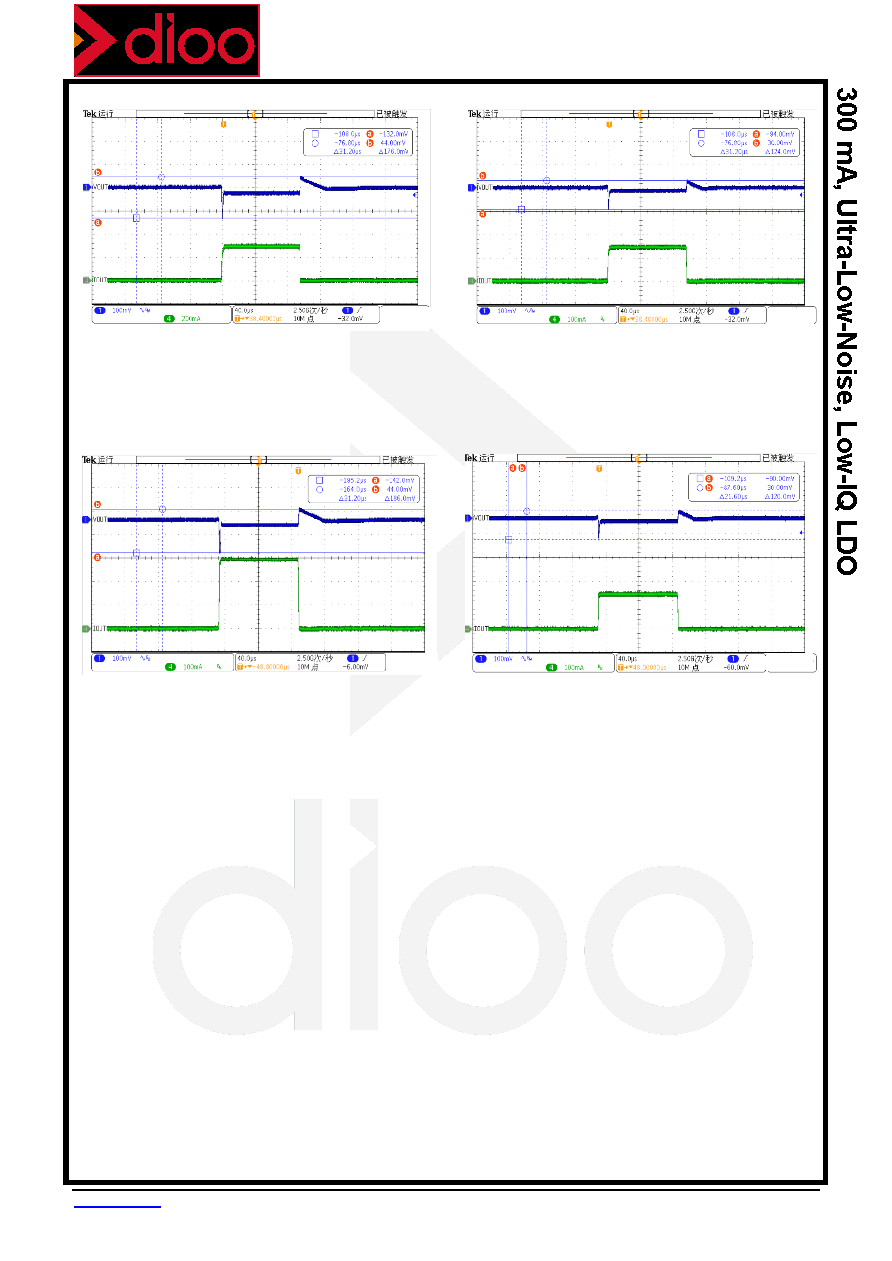

Figure 11. Load Transient Response at Load
Step from 1 mA to 300 mA, Vout = 0.8 V
VIN = 2.5V，Vout = 0.8V，CIN = Cout =1uF
Figure 12. Load Transient Response at Load
Step from 1 mA to 150 mA, Vout = 0.8 V
VIN=4.3 V，Vout=3.3 V, CIN=Cout=1 uF
Figure 13. Load Transient Response at Load
Step from 1 mA to 300 mA, Vout = 3.3 V
VIN=4.3 V，Vout=3.3 V，CIN=Cout=1 uF
Figure 14. Load Transient Response at Load
Step from 1 mA to 150 mA, Vout = 3.3 V
