RL78/D1A
3. ELECTRICAL SPECIFICATIONS (J GRADE PRODUCT)
R01DS0463EJ0120 Rev. 1.20
Page 81 of 135
Mar 31, 2026

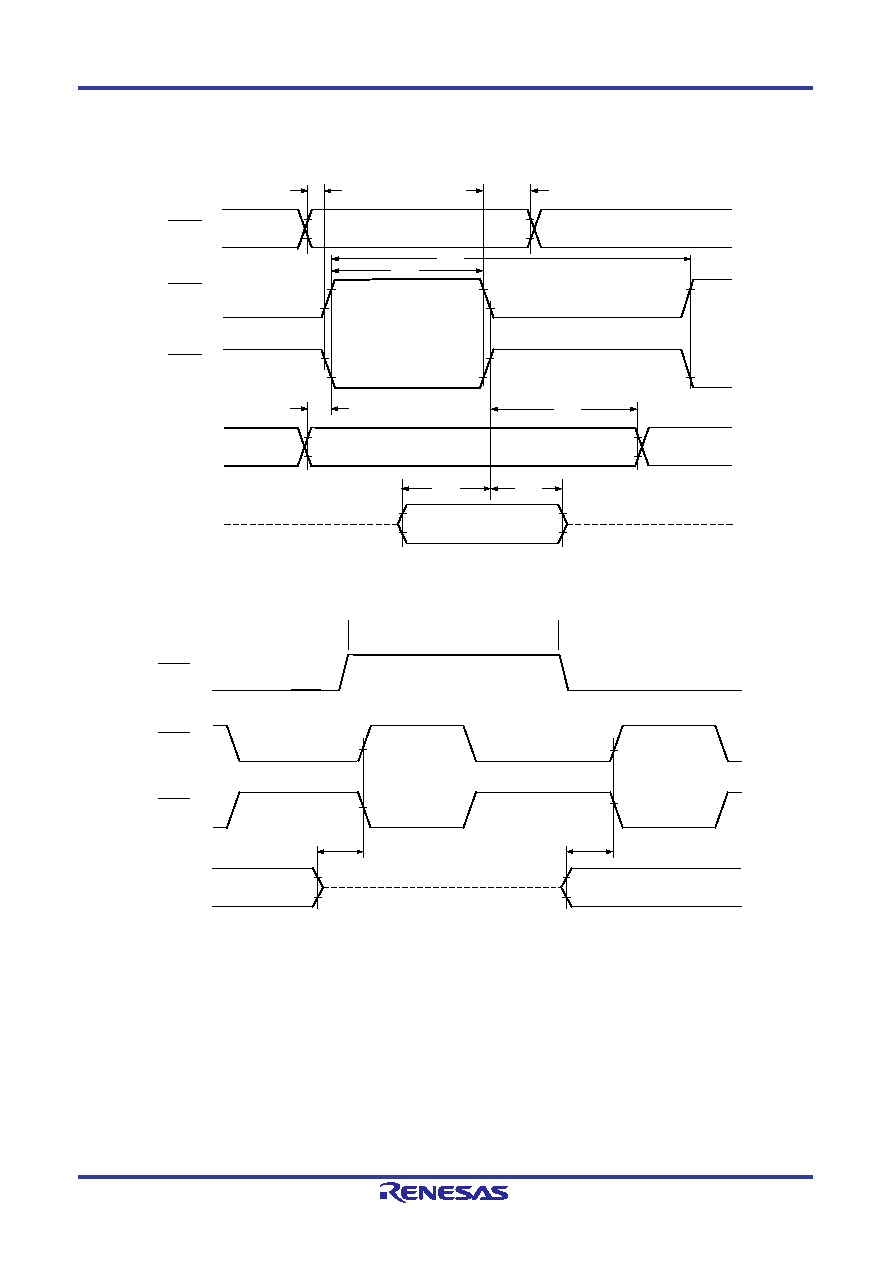

Figure 3-14. LCD Bus Interface AC timing (1/2)
(a) LCDB mod68 mode timing
tRWS
DBWR
Data
Hi-Z
Hi-Z
Data
tRWH
tELH
tCYC
tDOH
tDOS
tDIH
tDIS
DBRD
(EL = 0)
DBRD
(EL = 1)
DBD[7:0]
(Write)
DBD[7:0]
(Read)
(b) mode68 turnaround timing
DBWR
Hi-Z
tOD
tDOS
Data
Data
Write
Read
Write
DBRD
(EL = 0)
DBRD
(EL = 1)
DBD[7:0]
