SA316S

NiceRF Wireless Technology Co., Ltd.

Rev 1.8

- 3 -

sales@nicerf.com

1. Overview

The SA316 series products are divided into transmitter modules SA316S-TX, SA316F30, and receiver

module SA316-RX. This series uses a wireless high-quality voice transmission chip for its design. It

can support external PCM / IIS dual-mode digital audio interfaces, and provides customers with a

standardized serial interface. Users can quickly and easily set the module's transceiver frequency,

volume, microphone gain, and other parameters through serial port commands, which is widely used

in situations that require high sound quality.

2. Features



UHF frequency band：500MHz/868/915MHz

UHF frequency band：450~980 MHz

VHF frequency band：160~270 MHz



SA316F30-TX Open Area Transmission

Distance:1500 meters



SA316S-TX Open Area Transmission

Distance: 200 meters



Receiving sensitivity: 96 dBm



Audio signal to noise ratio: 86 dB



Frequency response: 30 Hz-20 KHz



The delay from microphone input to audio

output is 49ms



Digital modulation method: pi/4 DQPSK



Occupied bandwidth: <300 KHz



Transmission rate 204.8 Ksps



Sampling rate: 48 KHz

3. Applications



Wired speakers to wireless

speakers



wireless microphone



Wireless Headphones



High-quality wireless audio transmission

4. Typical application circuit

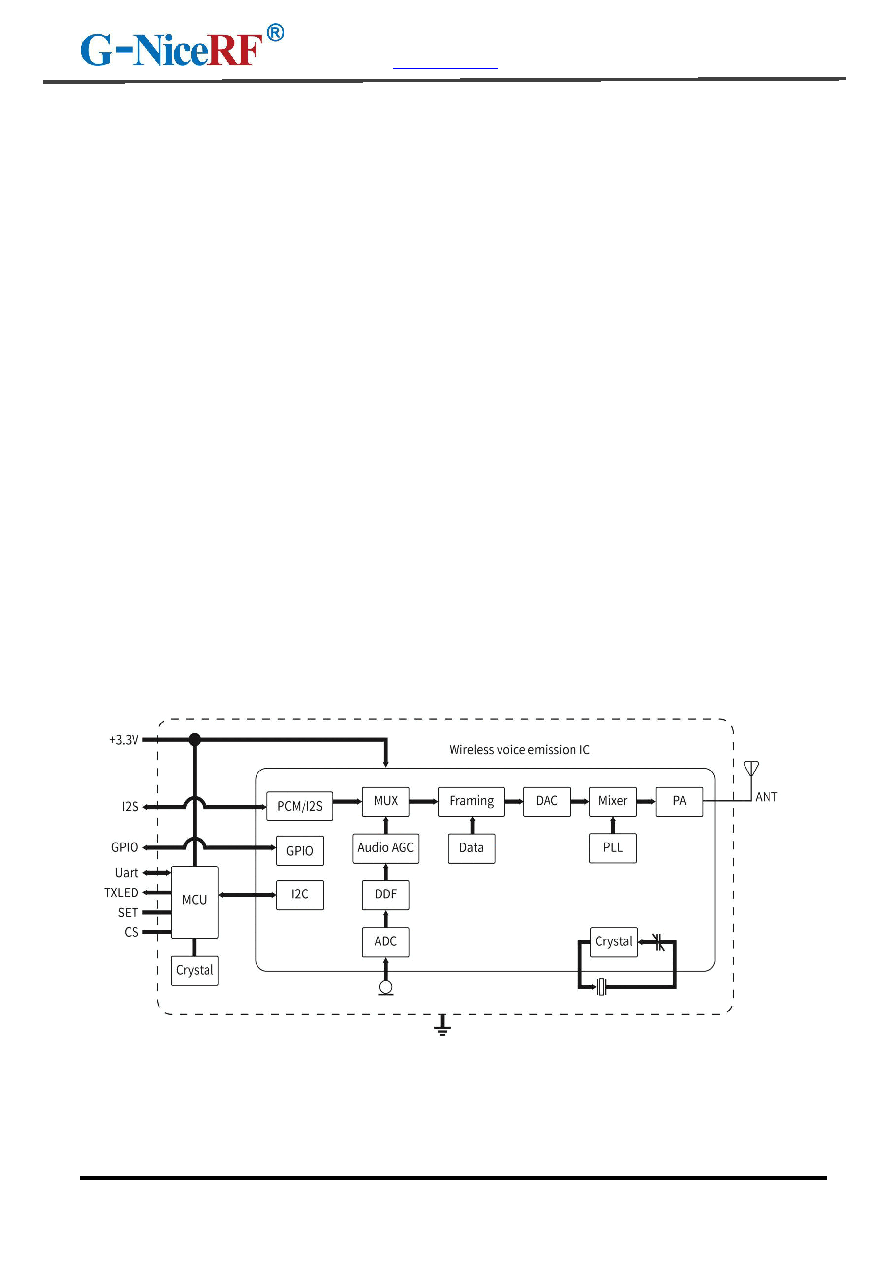

SA316S-TX block diagram
