PD57002 - PD57002S
Output Power vs Drain Voltage
Efficiency vs Drain Voltage
Output Power vs Gate-Source Voltage
10
12.5
15
17.5
20
22.5
25
27.5
30
Vdd (V)
0
0.5
1
1.5
2
2.5
Pout (W)
Pin = 17.4dBm
Idq = 15mA
960 MHz
945 MHz
925 MHz
10
12.5
15
17.5
20
22.5
25
27.5
30
Vdd (V)
10
20
30
40
50
60
Nd (%)
Pin = 17.4dBm
Idq = 15mA
945 MHz
925 MHz
960 MHz
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
Vgs (V)
0
0.5
1
1.5
2
2.5
Pout (W)
Pin = 17.4dBm
Vdd = 28V
945 MHz
925 MHz
960 MHz

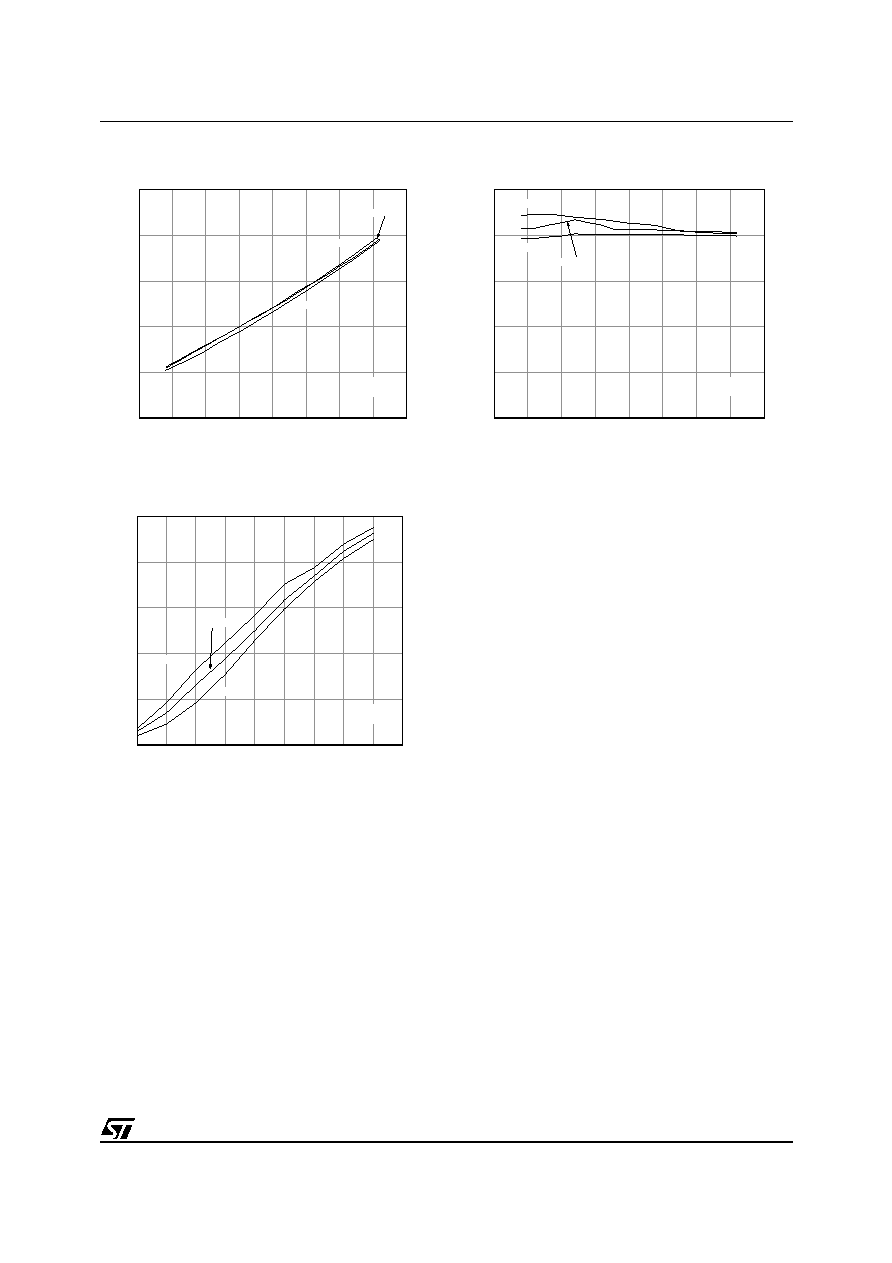

TYPICAL PERFORMANCE (PD57002S)
