PD57006 - PD57006S

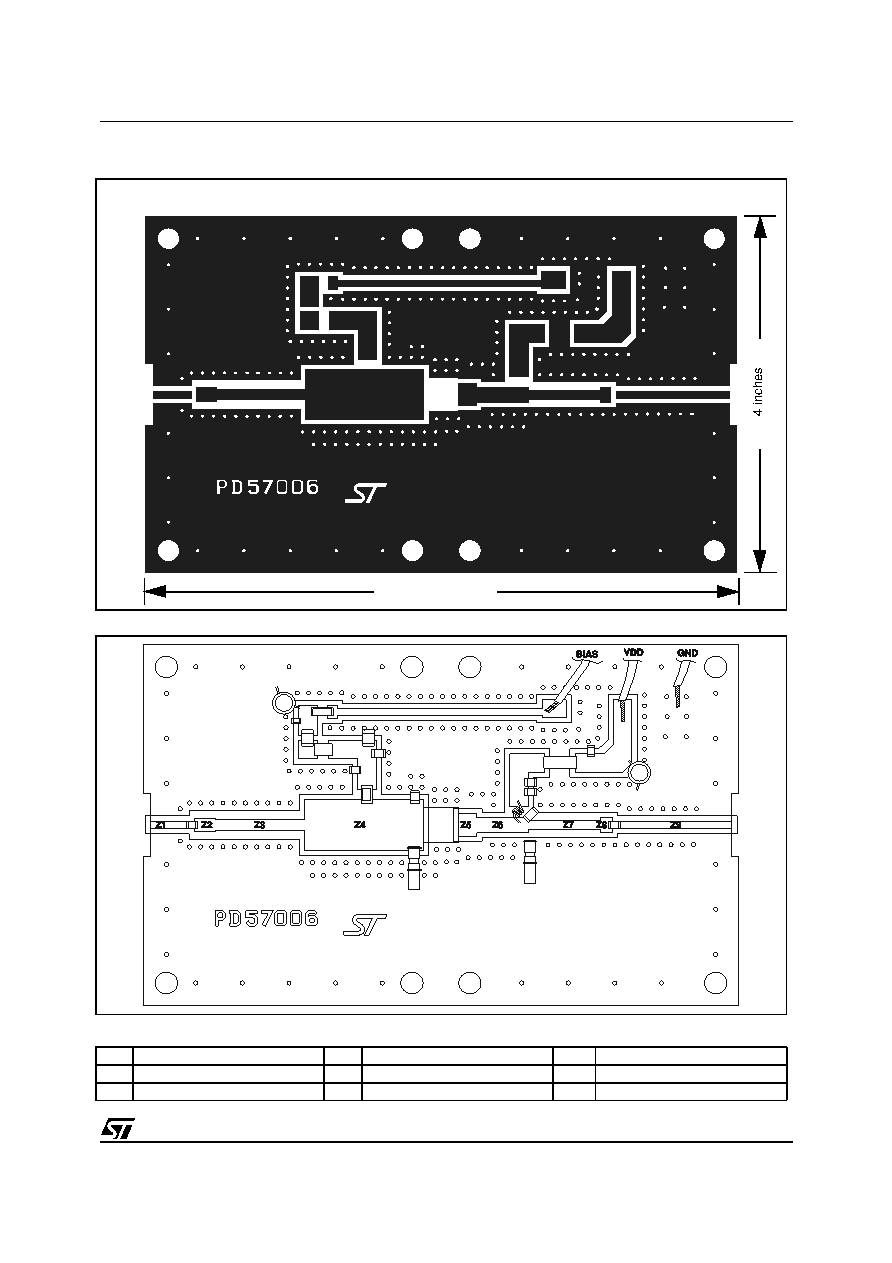

TEST CIRCUIT PHOTOMASTER
6.4 inches
TEST CIRCUIT
TRANSMISSION LINE DIMENSIONS
Z1
0.430” X 0.084” MICROSTRIP
Z4
1.273” X 0.565” MICROSTRIP
Z7
0.778” X 0.150” MICROSTRIP
Z2
0.220” X 0.155” MICROSTRIP
Z5
0.195” X 0.250” MICROSTRIP
Z8
0.120” X 0.171” MICROSTRIP
Z3
0.960” X 0.120” MICROSTRIP
Z6
0.555” X 0.171” MICROSTRIP
Z8
1.200” X 0.084” MICROSTRIP
