PD57006 - PD57006S

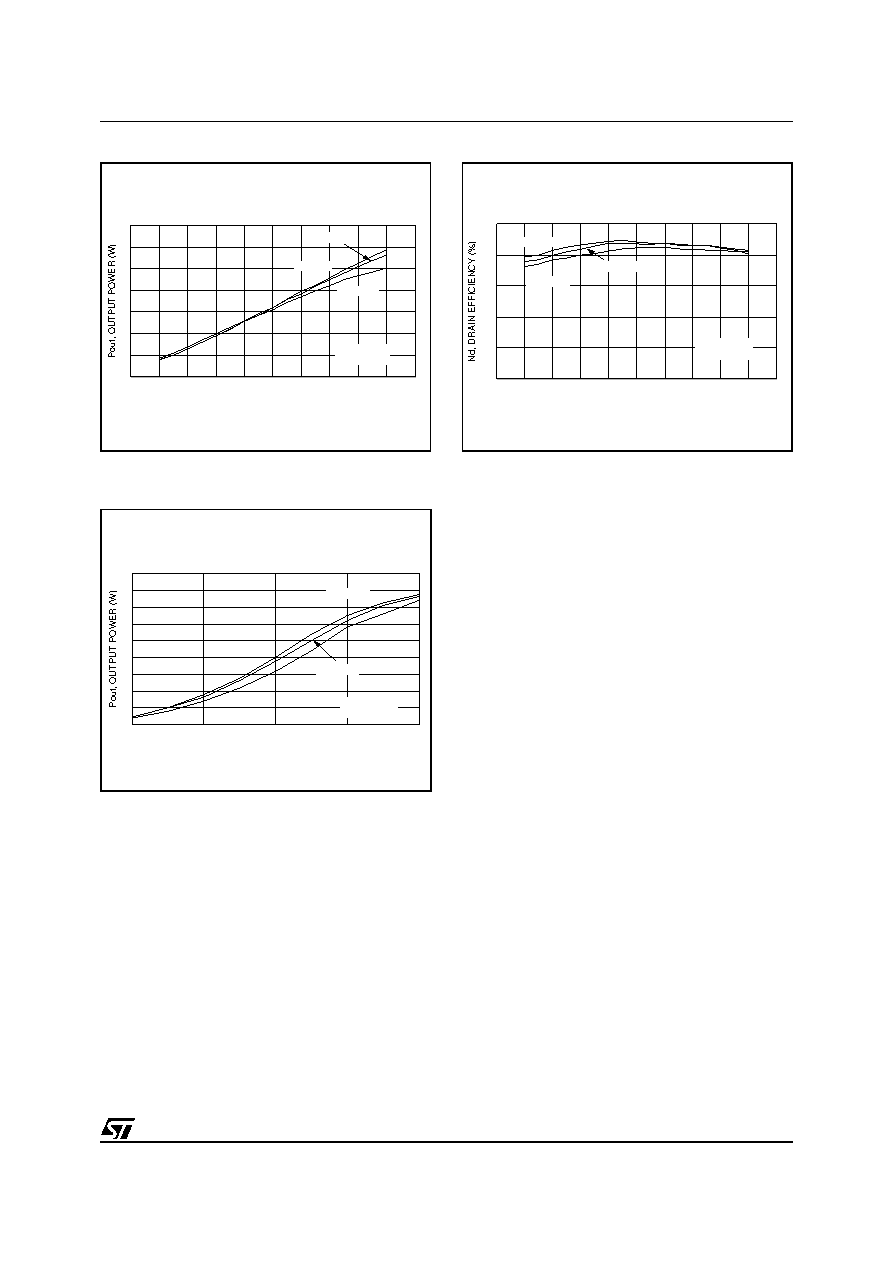

TYPICAL PERFORMANCE
Output Power vs. Supply Voltage
10
12
14
16
18
20
22
24
26
28
30
VDD, SUPPLY VOLTAGE (V)
1
2
3
4
5
6
7
8
Idq=70 mA
Pin= 23.6 dBm
945 MHz
960 MHz
925 MHz
Drain Efficiency vs. Supply Voltage
10
12
14
16
18
20
22
24
26
28
30
VDD, SUPPLY VOLTAGE (V)
10
20
30
40
50
60
Idq= 70 mA
Pin= 23.6 dBm
945 MHz
960 MHz
925 MHz
Output Power vs. Gate-Source Voltage
01
234
VGS, GATE-SOURCE VOLTAGE (V)
0
1
2
3
4
5
6
7
8
9
Vdd=28V
Pin= 23.6 dBm
945 MHz
960 MHz
925 MHz
