@C/E5@C-T

132

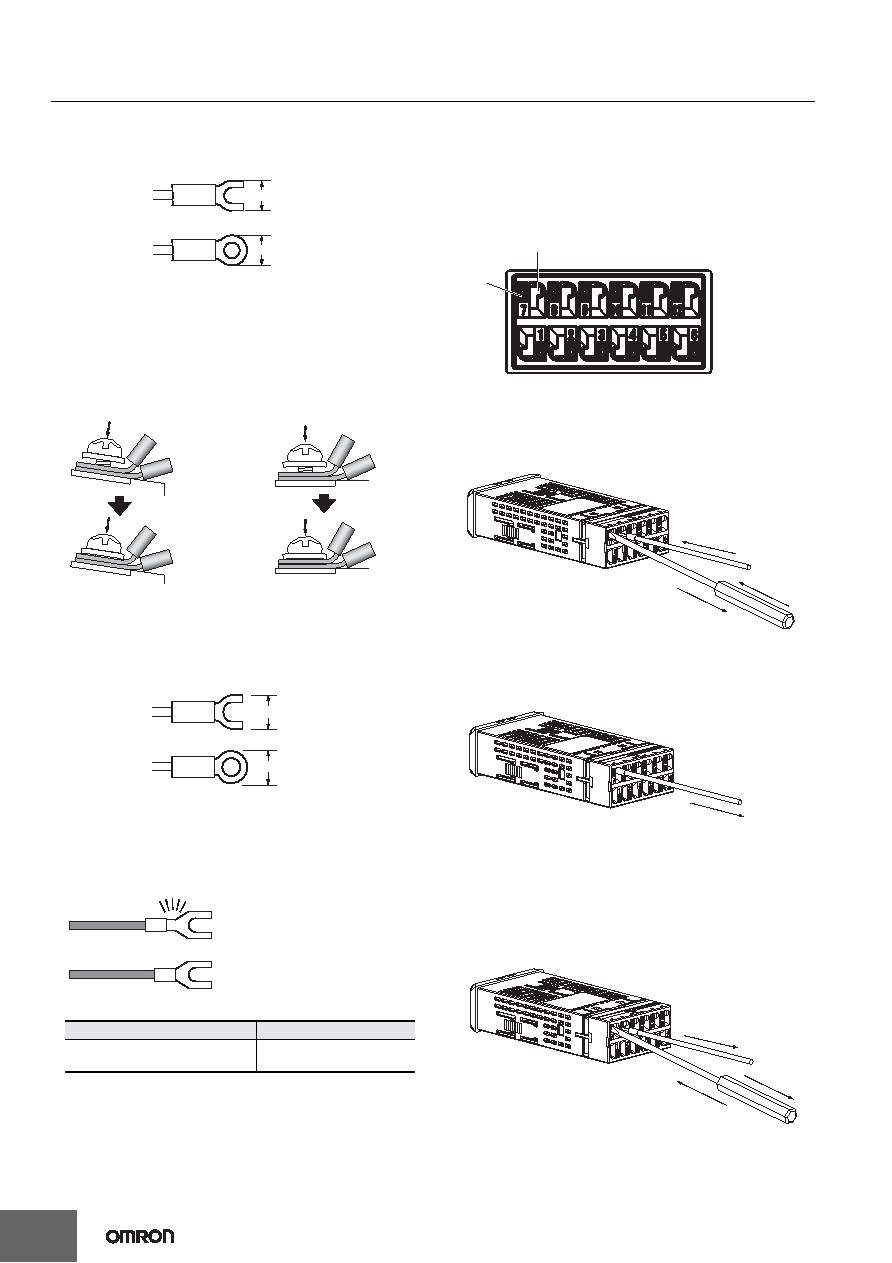

Crimp Terminal

For the E5CC/E5EC/E5AC/E5DC/E5GC (Controllers with Screw

Terminal Blocks) or E5

@C-T, use the following types of crimp

terminals for M3 screws.

Although you can connect two crimp terminals with insulation sleeves

to one terminal, you cannot do so if the diameter of the insulation

sleeves is too large.

Select a crimp terminal that can be tightened as shown below.

(Excluding the E5CC-U)

Some terminal blocks have a large crimp part. In this case, bend the

terminal in advance as shown in the figure, and tighten slowly to

ensure that the terminal screw is vertical to the terminal surface of the

terminal block.

For the E5CC-U, use the following types of crimp terminals for M3.5

screws.

• If you use crimp terminals for the E5DC, use crimp terminals with

insulation sleeves. If you use a bare crimp terminal with no

insulation, the terminal may short with the terminal above or below

it. If you use bare crimp terminals, cover the crimped sections with

insulating marking tubes. Secure the marking tubes so that they do

not move.

Recommended Crimp Terminals with Insulation Sleeves for the E5DC

E5GC (Controllers with Screwless Clamp

Terminal Blocks)

1. Connection Method for Screwless Clamp Terminals

The same method is used to connect stranded wires, solid wires, and

ferrules.

Part Names of the Terminal Block

Connection Method

1. Press the pusher with a flat-blade screwdriver.

2. With the screwdriver still pressing the pusher, insert the wire into

the terminal (Insertion) hole.

3. Remove the flat-blade screwdriver from the pusher.

Checking Connections

• After insertion, pull gently on the wire to make sure that it will not

come out (i.e., to confirm that it is held by the terminal block).

2. Removal Method for Screwless Clamp Terminals

The same method is used to remove stranded wires, solid wires, and

ferrules.

1. Press the pusher with a flat-blade screwdriver.

2. With the screwdriver still pressing the pusher, pull the wire out of

the terminal (Insertion) hole.

3. Remove the flat-blade screwdriver from the pusher.

Manufacturer

Model number

J.S.T. Mfg. Co.

V1.25-B3A

V0.5-3A

5.8 mm max.

E5CC, E5EC, E5AC, or E5

@C-T

Note: Be careful in the tightening

direction, as the terminal block

is at an angle.

E5GC or E5DC

7.2 mm max.

Pusher

Terminal (Insertion) hole

(1)

(2)

(3)

(1)

(2)

(3)
