ST62T53C/T60C/T63C ST62E60C

PACKAGE MECHANICAL DATA (Cont’d)

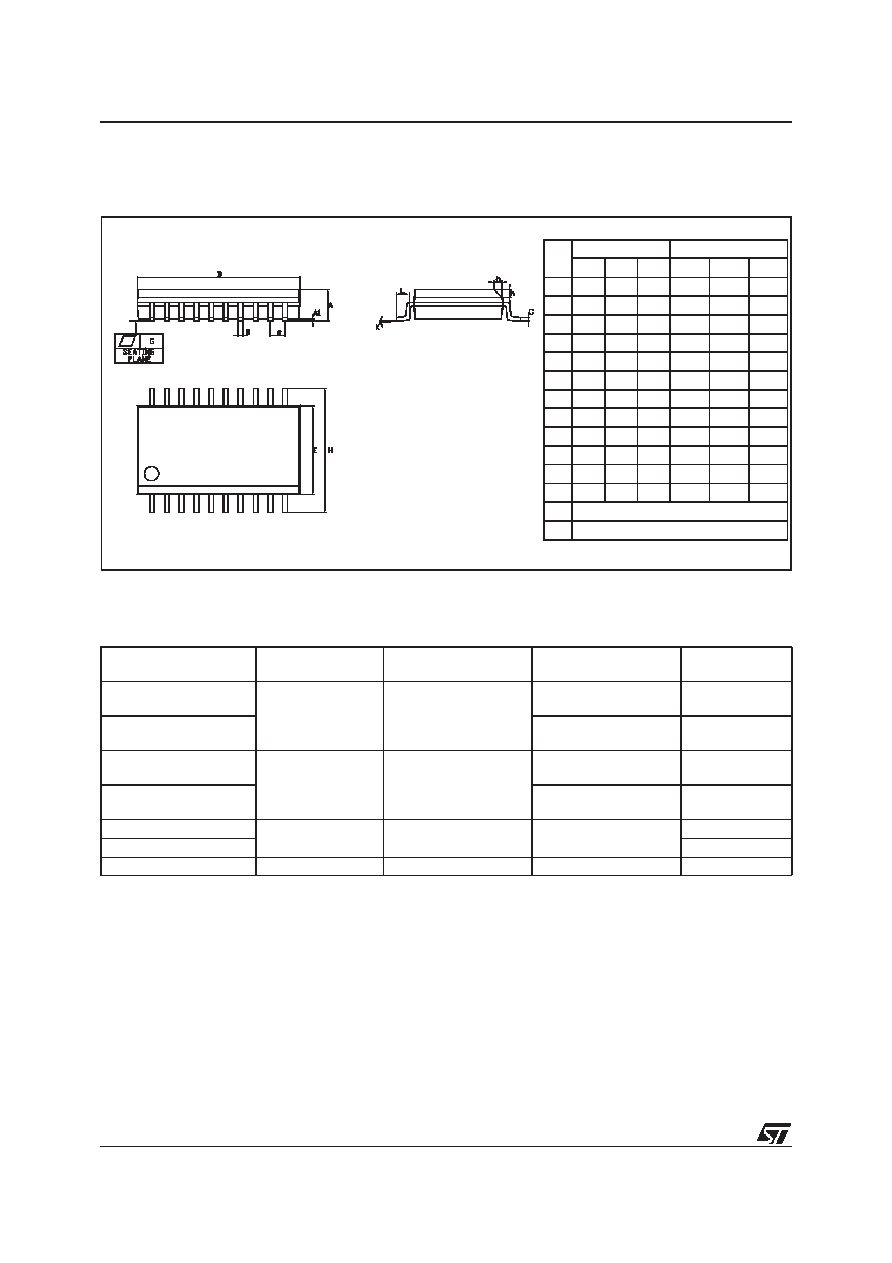

Figure 53. 20-Pin Plastic Small Outline Package, 300-mil Width

7.2 ORDERING INFORMATION

Table 23. OTP/EPROM VERSION ORDERING INFORMATION

Sales Type

Program

Memory (Bytes)

EEPROM (Bytes)

Temperature Range

Package

ST62T53CB6

ST62T53CB3

1836 (OTP)

-40 to + 85

°C

-40 to + 125

°C

PDIP20

ST62T53CM6

ST62T53CM3

-40 to + 85

°C

-40 to + 125

°C

PSO20

ST62T60CB6

ST62T60CB3

3884 (OTP)

128

-40 to + 85

°C

-40 to + 125

°C

PDIP20

ST62T60CM6

ST62T60CM3

-40 to + 85

°C

-40 to + 125

°C

PSO20

ST62T63CB6

1836 (OTP)

-40 to + 85

°C

PDIP20

ST62T63CM6

PSO20

ST62E60CF1

3884 (EPROM)

128

0 to +70

°C

CDIP20

Dim.

inches

Min

Typ

Max

Min

Typ

Max

2.35

2.65 0.0926

0.1043

0.10

0.0040

0.33

0.51 0.0130

0.0200

0.32

0.0125

4.98

13.00 0.1961

0.5118

7.40

7.60 0.2914

0.2992

1.27

0.050

10.01

10.64 0.394

0.419

0.25

0.74

0.010

0.029

0.41

1.27

0.016

0.050

0.10

0.004

Number of Pins

N20

SO20
