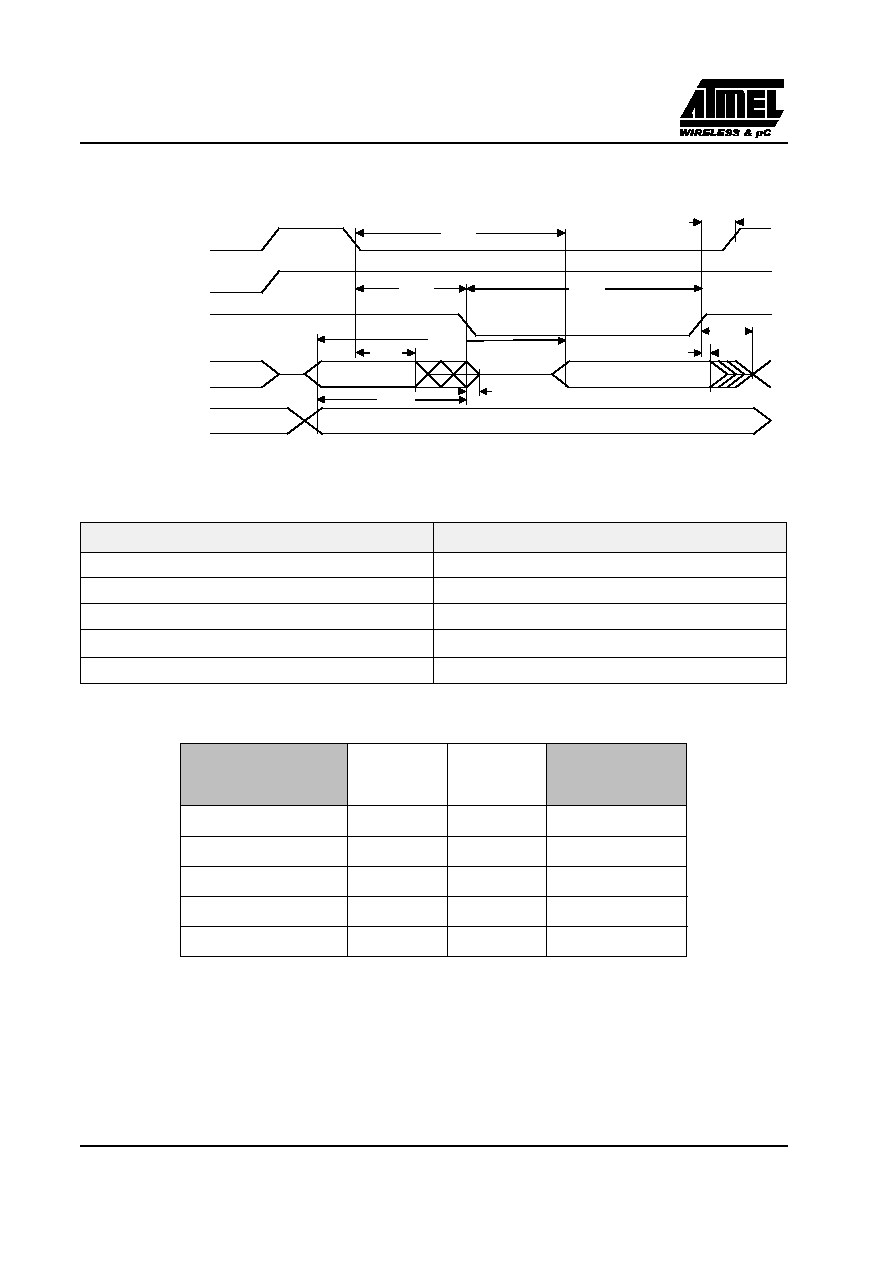

background image
112
Draft.A - March 30, 2001
Preview - Confidential
T89C51AC2
18.4.6. External Data Memory Read Cycle
18.4.7. Serial Port Timing - Shift Register Mode
Table 32. Symbol Description (F= 40 MHz)
Symbol
Parameter
TXLXL
Serial port clock cycle time
TQVHX
Output data set-up to clock rising edge
TXHQX
Output data hold after clock rising edge
TXHDX
Input data hold after clock rising edge
TXHDV
Clock rising edge to input data valid
Table 33. AC Parameters for a Fix Clock (F= 40 MHz)
Symbol
Min
Max
Units
TXLXL
300
ns
TQVHX
200
ns
TXHQX
30
ns
TXHDX
0
ns
TXHDV
117
ns
ALE
PSEN
RD
PORT 0
PORT 2
A0-A7
DATA IN
ADDRESS
OR SFR-P2
TAVWL
TLLWL
TRLAZ
ADDRESS A8-A15 OR SFR P2
TRHDZ
TWHLH
TRLRH
TLLDV
TRHDX
TLLAX
TAVDV
