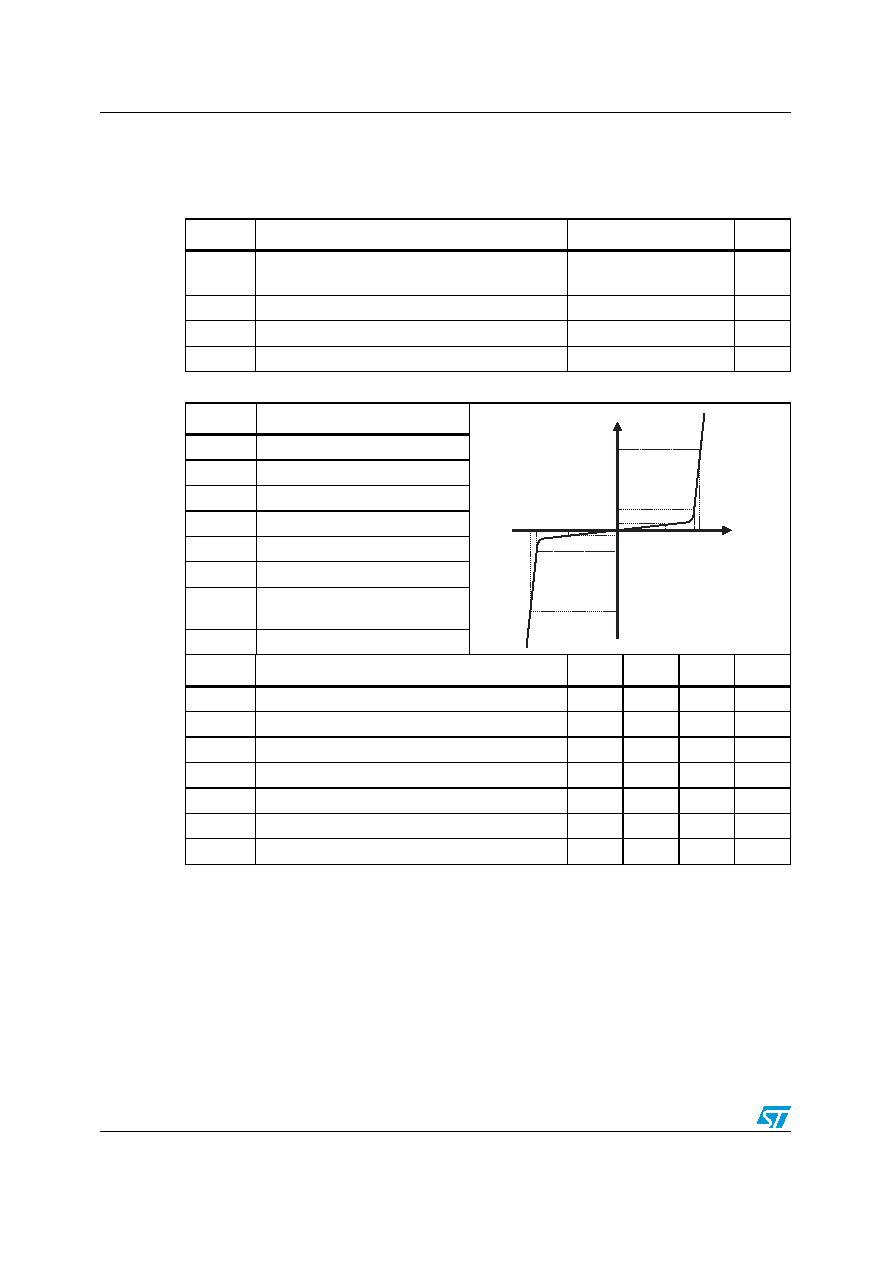

Characteristics
EMIF02-USB02F2
2/7
1
Characteristics
Table 1.
Absolute ratings (Tamb = 25 °C)
Symbol
Parameter and test conditions
Value
Unit
VPP
ESD discharge IEC 61000-4-2, air discharge
ESD discharge IEC 61000-4-2, contact discharge
15
8
kV
Tj
Junction temperature
125
°C
Top
Operating temperature range
- 40 to + 85
°C
Tstg
Storage temperature range
- 55 to + 150
°C
Table 2.
Electrical characteristics (Tamb = 25 °C)
Symbol
Parameter
VBR
Breakdown voltage
IRM
Leakage current @ VRM
VRM
Stand-off voltage
VCL
Clamping voltage
Rd
Dynamic impedance
IPP
Peak pulse current
RI/O
Series resistance between input
and output
Cline
Input capacitance per line
Symbol
Test conditions
Min.
Typ.
Max.
Unit
VBR
IR = 1 mA
6
V
IRM
VRM = 3V
0.1
0.5
µA
Cline
@ 0V
50
pF
R1,R2
Tolerance ± 5%
33
Ω
R3
Tolerance ± 5%
1.3
k
Ω
R4
Tolerance ± 5%
10
k
Ω
VF
@ 1 mA (D1 diode)
1
V
I
V
IPP
VCL
VBR
VRM
IR
IRM
IRM
IR
IPP
VRM
VBR
VCL
