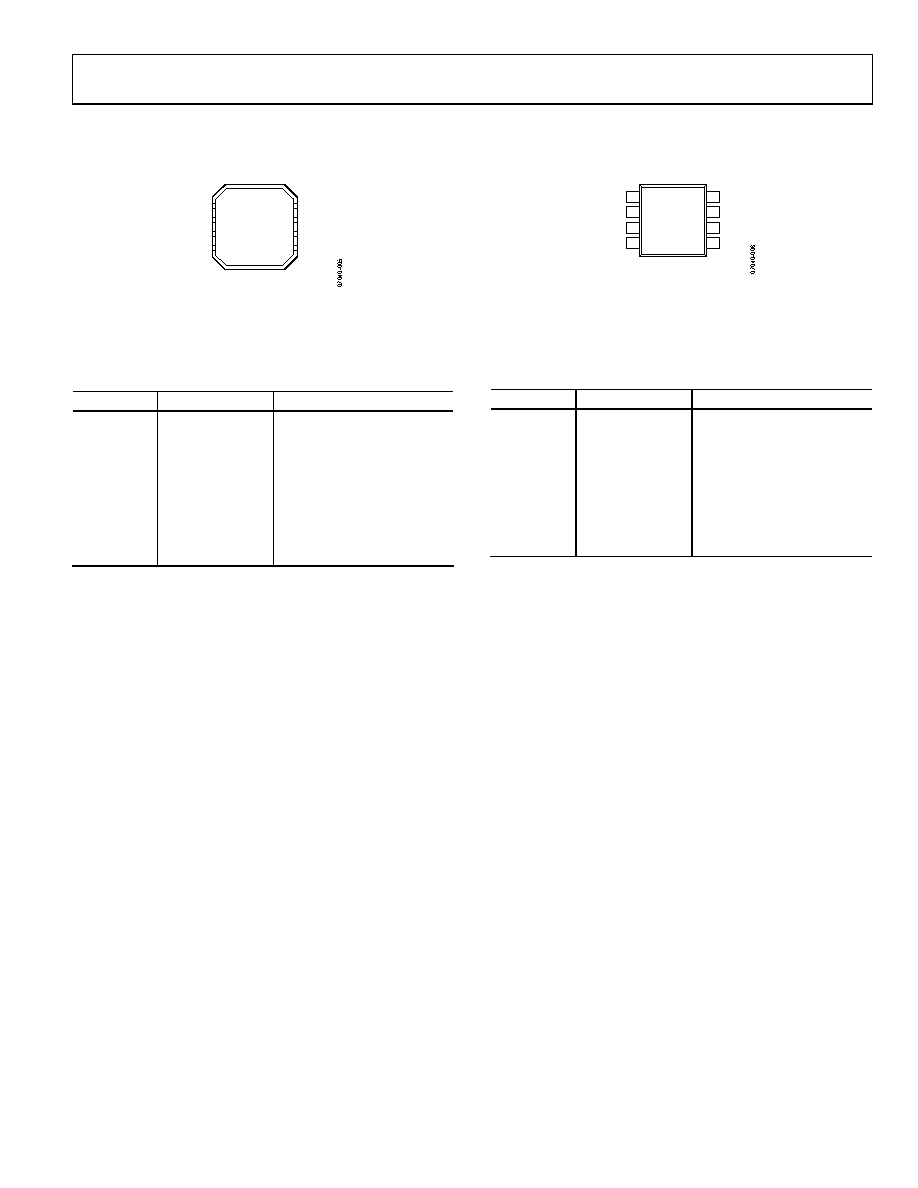

background image
ADA4857-1/ADA4857-2
Rev. 0 | Page 7 of 20
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
NC = NO CONNECT
1
PD
2
FB
3
–IN
4
+IN
7OUT
8+VS
6NC
5–VS
ADA4857-1
TOP VIEW
(Not to Scale)
Figure 5. 8-Lead LFCSP Pin Configuration
FB 1
–IN 2
+IN 3
–VS 4
PD
8
+VS
7
OUT
6
NC
5
NC = NO CONNECT
ADA4857-1
TOP VIEW
(Not to Scale)
Figure 6. 8-Lead SOIC Pin Configuration
Table 5. 8-Lead LFCSP Pin Function Descriptions
Pin No.
Mnemonic
Description
1
PD
Power Down
2
FB
Feedback
3
−IN
Inverting Input
4
+IN
Noninverting Input
5
−VS
Negative Supply
6
NC
No Connect
7
OUT
Output
8
+VS
Positive Supply
Table 6. 8-Lead SOIC Pin Function Descriptions
Pin No.
Mnemonic
Description
1
FB
Feedback
2
−IN
Inverting Input
3
+IN
Noninverting Input
4
−VS
Negative Supply
5
NC
No Connect
6
OUT
Output
7
+VS
Positive Supply
8
PD
Power Down
