DESIGN GUIDELINES
104/111
Issue 1.0 - July 24, 2002

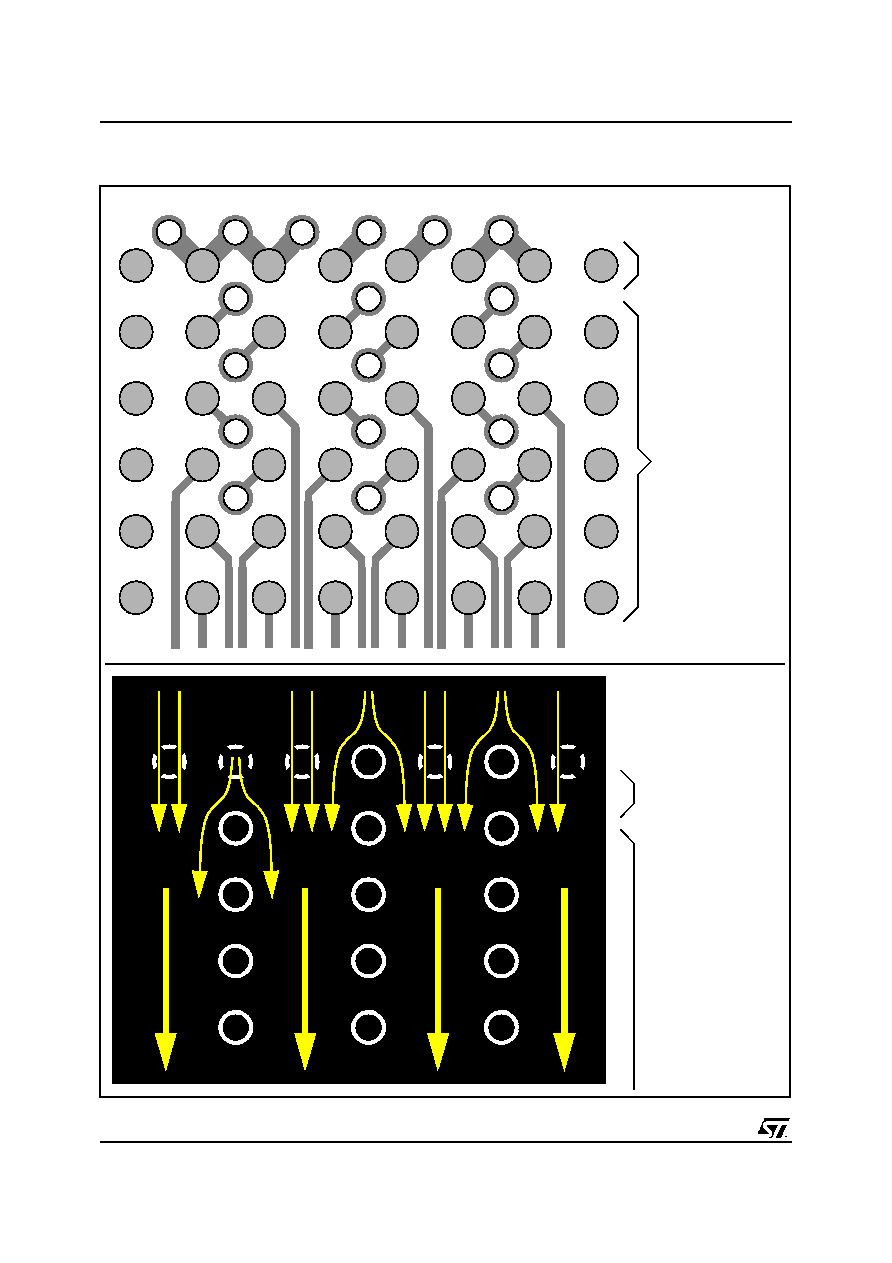

Figure 6-37. Recommend signal wiring (top & ground layers) with corresponding heat flow
Power/GND balls
Signal balls
External row
Internal row
GND
Power
Power
GND
Power/GND balls
Signal balls
Keep-Out = 6 mils
