ELECTRICAL SPECIFICATIONS
Issue 1.0 - July 24, 2002
53/111
4.5.5 IPC INTERFACE
Table 4-13 lists the AC characteristics of the IPC
interface.

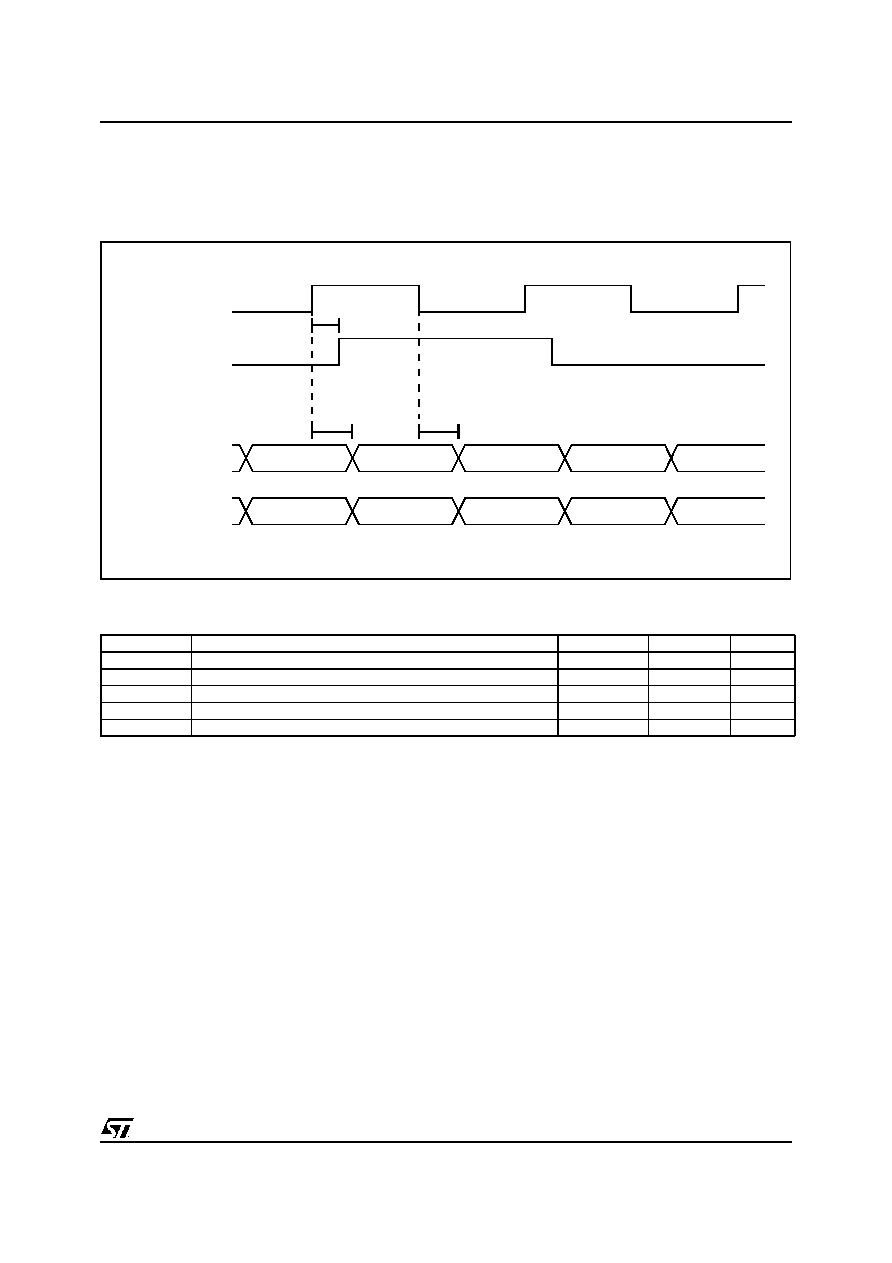

Figure 4-7. IPC timing diagram
ISACLK
IRQ_MUX[3:0]
DREQ_MUX[1:0]
ISACLK2X
Tdly
Tsetup
Tsetup
Table 4-13. IPC Interface AC Timings
Name
Parameter
Min
Max
Unit
Tdly
ISACLK2X to ISACLK delay
nS
ISACLK2X to DACK_ENC[2:0] valid
nS
ISACLK2X to TC valid
nS
Tsetup
IRQ_MUX[3:0] Input setup to ISACLK2X
0
-
nS
Tsetup
DREQ_MUX[1:0] Input setup to ISACLK2X
0
-
nS
