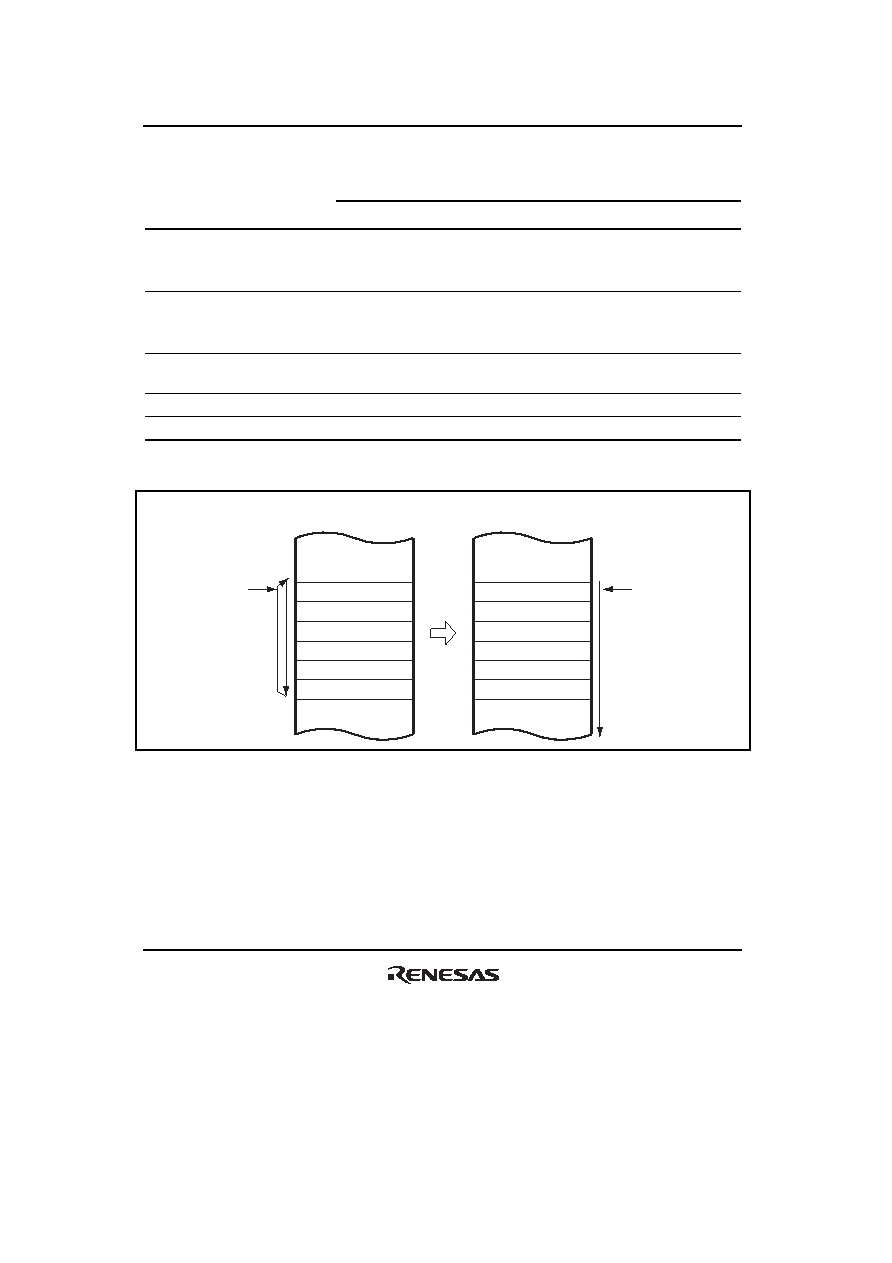

468 / 1158 page  Section 8 Data Transfer Controller (DTC) Rev.1.00 Jun. 07, 2006 Page 416 of 1102 REJ09B0294-0100 Table 8.7 Register Function in Repeat Transfer Mode Written Back Value Register Function CRAL is not 1 CRAL is 1 SAR Source address Incremented/decremented/fixed * DTS =0: Incremented/ decremented/fixed* DTS = 1: SAR initial value DAR Destination address Incremented/decremented/fixed * DTS = 0: DAR initial value DTS =1: Incremented/ decremented/fixed* CRAH Transfer count storage CRAH CRAH CRAL Transfer count A CRAL − 1 CRAH CRB Transfer count B Not updated Not updated Note: * Transfer information writeback is skipped. SAR Transfer source data area (specified as repeat area) DAR Transfer Transfer destination data area Figure 8.8 Memory Map in Repeat Transfer Mode (When Transfer Source is Specified as Repeat Area) |
|
