Section 8 Data Transfer Controller (DTC)
Rev.1.00 Jun. 07, 2006 Page 419 of 1102
REJ09B0294-0100
8.5.8
Operation Timing

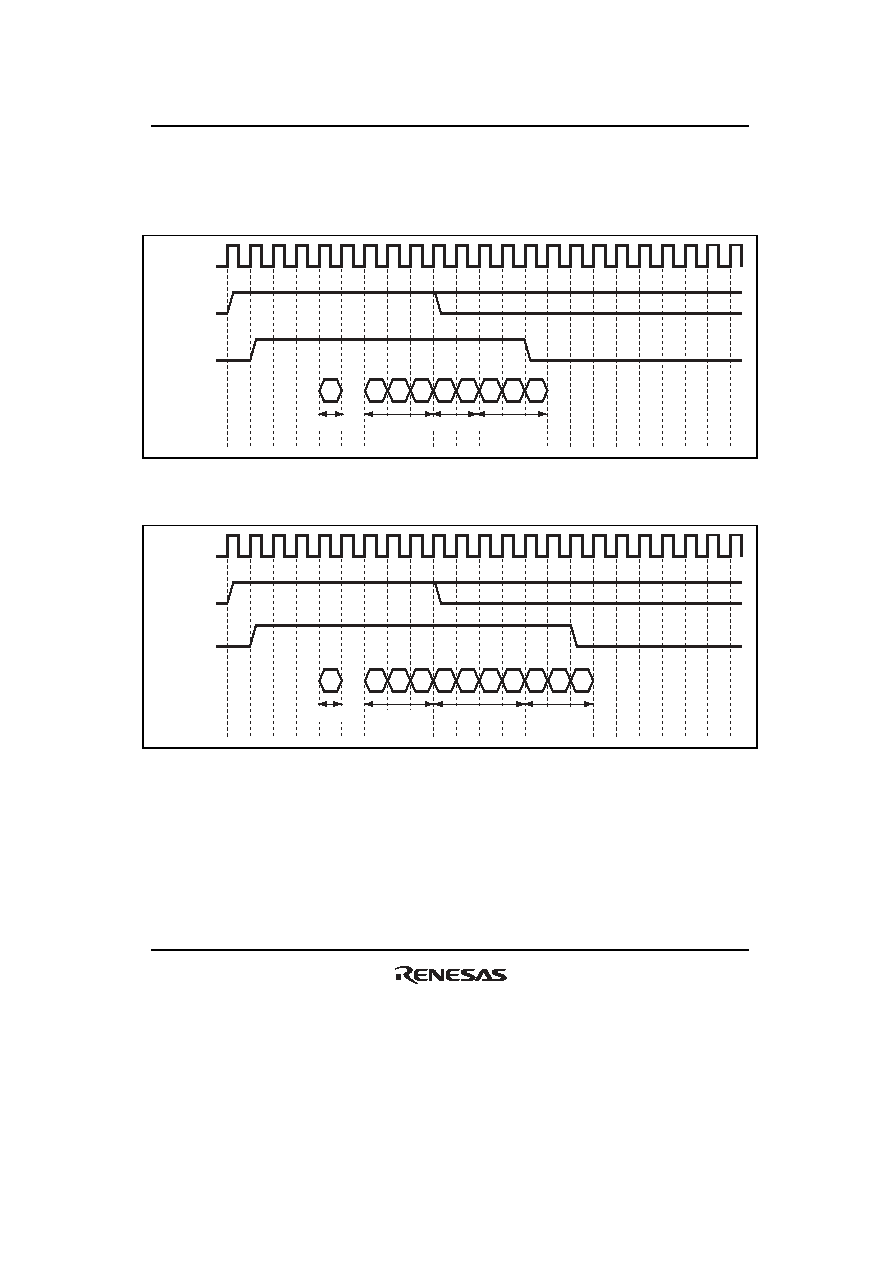

Figures 8.11 to 8.14 show the DTC operation timings.
Clock
Address
DTC activation
request
DTC request
R
W
Vector read
Transfer
information
read
Data transfer
Transfer
information
write
Figure 8.11 DTC Operation Timing
(Example of Short Address Mode in Normal Transfer Mode or Repeat Transfer Mode)
Clock
Address
DTC activation
request
DTC request
RW
R
W
Vector read
Transfer
information
read
Data transfer
Transfer
information
write
Figure 8.12 DTC Operation Timing
(Example of Short Address Mode in Block Transfer Mode with Block Size of 2)
