Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 579 of 1102
REJ09B0294-0100
10.10.9
Conflict between TGR Write and Input Capture
If the input capture signal is generated in the T2 state of a TGR write cycle, the input capture
operation takes precedence and the write to TGR is not performed.

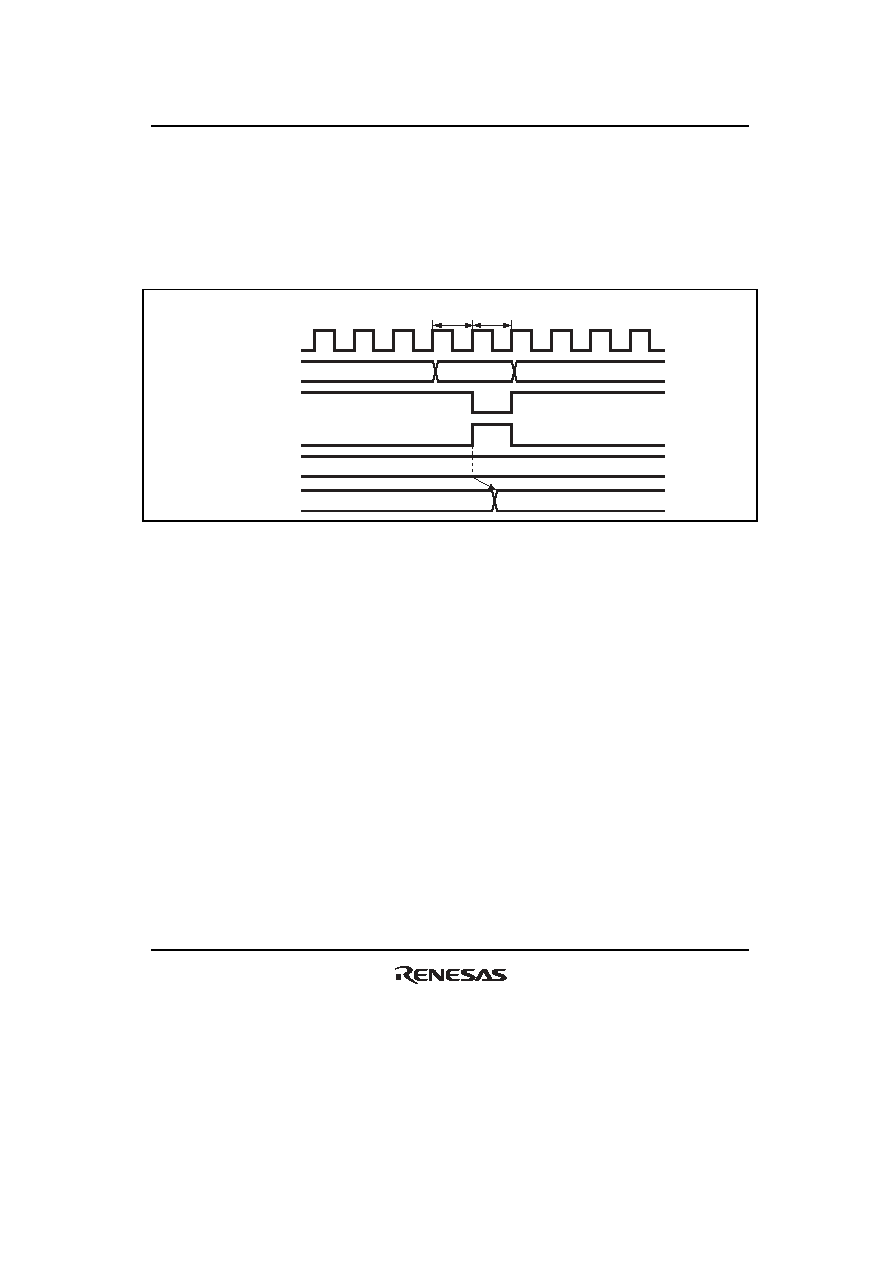

Figure 10.51 shows the timing in this case.
TCNT
P
φ
Input capture
signal
Address
TGR address
Write
T
1
T
2
TGR write cycle
M
M
TGR
Figure 10.51 Conflict between TGR Write and Input Capture
