Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 581 of 1102
REJ09B0294-0100
10.10.11 Conflict between Overflow/Underflow and Counter Clearing
If overflow/underflow and counter clearing occur simultaneously, the TCFV/TCFU flag in TSR is
not set and TCNT clearing takes precedence.

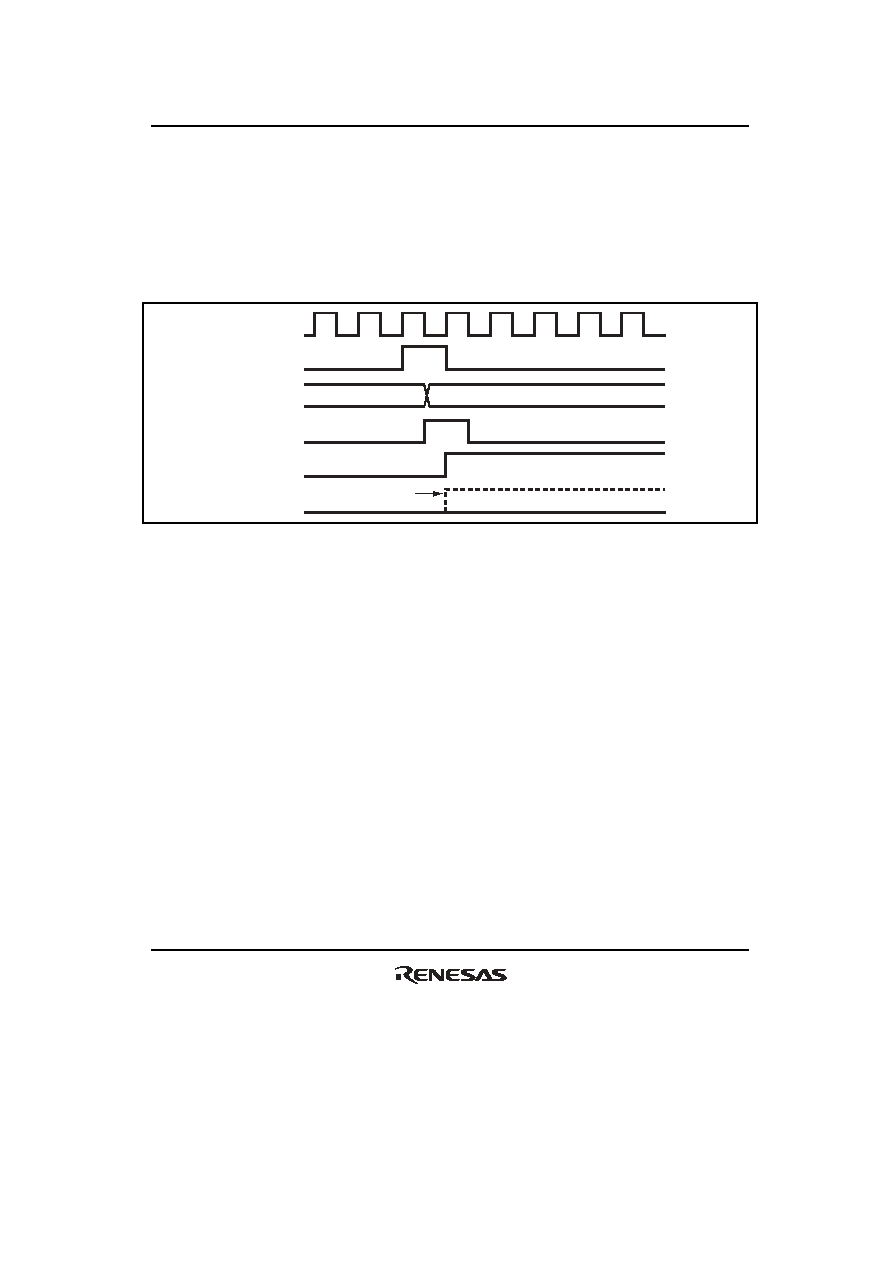

Figure 10.53 shows the operation timing when a TGR compare match is specified as the clearing
source, and H'FFFF is set in TGR.
Counter clear
signal
H'0000
P
φ
TCNT input
clock
TCNT
TGF flag
TCFV flag
H'FFFF
Disabled
Figure 10.53 Conflict between Overflow and Counter Clearing
