Section 17 I
2C Bus Interface 2 (IIC2)
Rev.1.00 Jun. 07, 2006 Page 819 of 1102
REJ09B0294-0100
Vcc
Vcc
SCL in
SCL out
SCL
SDA in
SDA out
SDA
SCL
(Master)
(Slave 1)
(Slave 2)
SDA
SCL in
SCL out
SDA in
SDA out
SCL in
SCL out
SDA in
SDA out

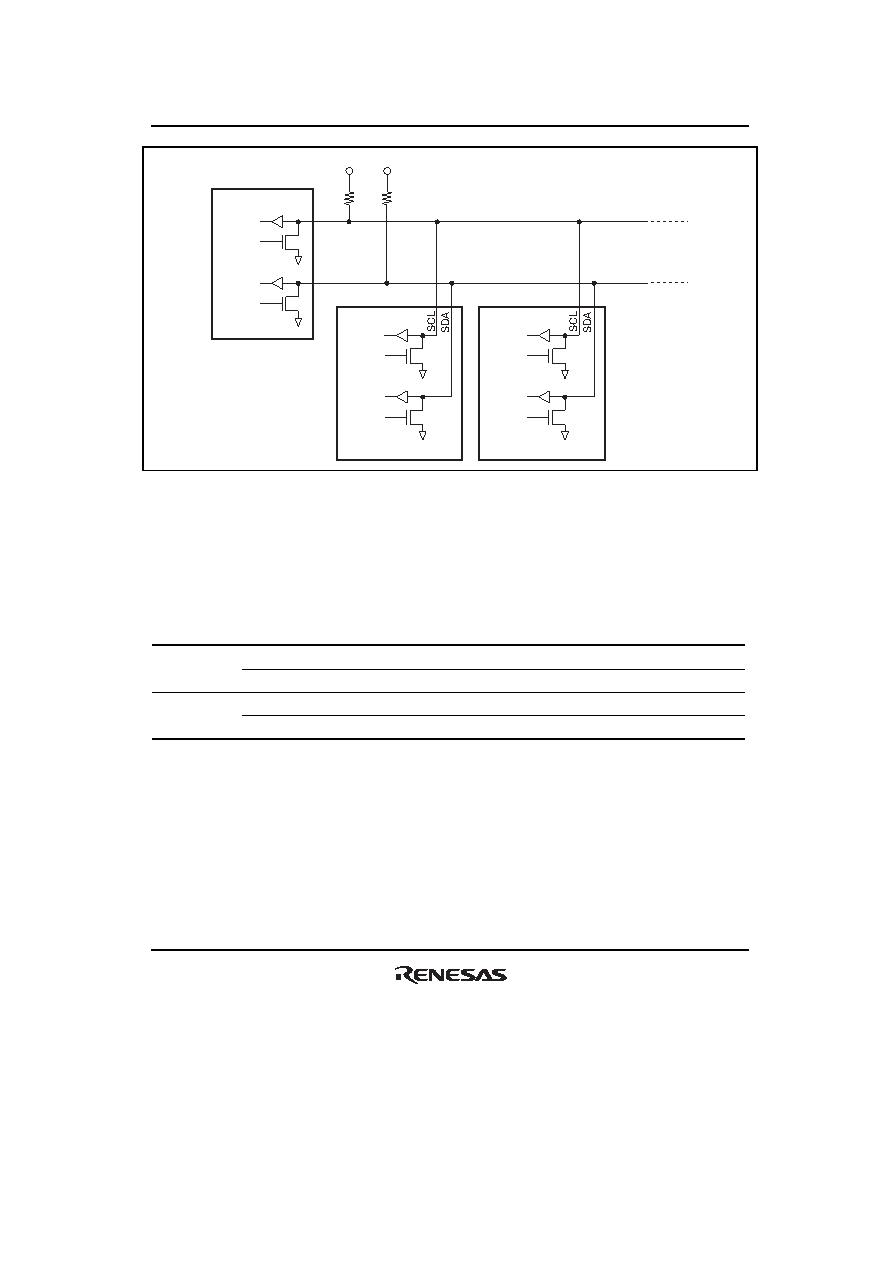

Figure 17.2 Connections to the External Circuit by the I/O Pins
17.2
Input/Output Pins
Table 17.1 shows the pin configuration of the I
2C bus interface 2.
Table 17.1
Pin Configuration of the I
2C Bus Interface 2
Channel
Abbreviation
I/O
Function
0
SCL0
I/O
Channel 0 serial clock I/O pin
SDA0
I/O
Channel 0 serial data I/O pin
1
SCL1
I/O
Channel 1 serial clock I/O pin
SDA1
I/O
Channel 1 serial data I/O pin
Note:
The pin symbols are represented as SCL and SDA; channel numbers are omitted in this
manual.
