Section 21 Flash Memory (0.18-

µm F-ZTAT Version)

Rev.1.00 Jun. 07, 2006 Page 927 of 1102

REJ09B0294-0100

21.9

Flash Memory Emulation Using RAM

For realtime emulation of the data written to the flash memory using the on-chip RAM, the on-

chip RAM area can be overlaid with several flash memory blocks (user MAT) using the RAM

emulation register (RAMER).

The overlaid area can be accessed from both the user MAT area specified by RAMER and the

overlaid RAM area. The emulation can be performed in user mode and user program mode.

Figure 21.17 shows an example of emulating realtime programming of the user MAT.

Emulation program start

Set RAMER

Write tuning data to overlaid

RAM area

Execute application program

Tuning OK?

Cancel setting in RAMER

Program emulation block

in user MAT

Emulation program end

Yes

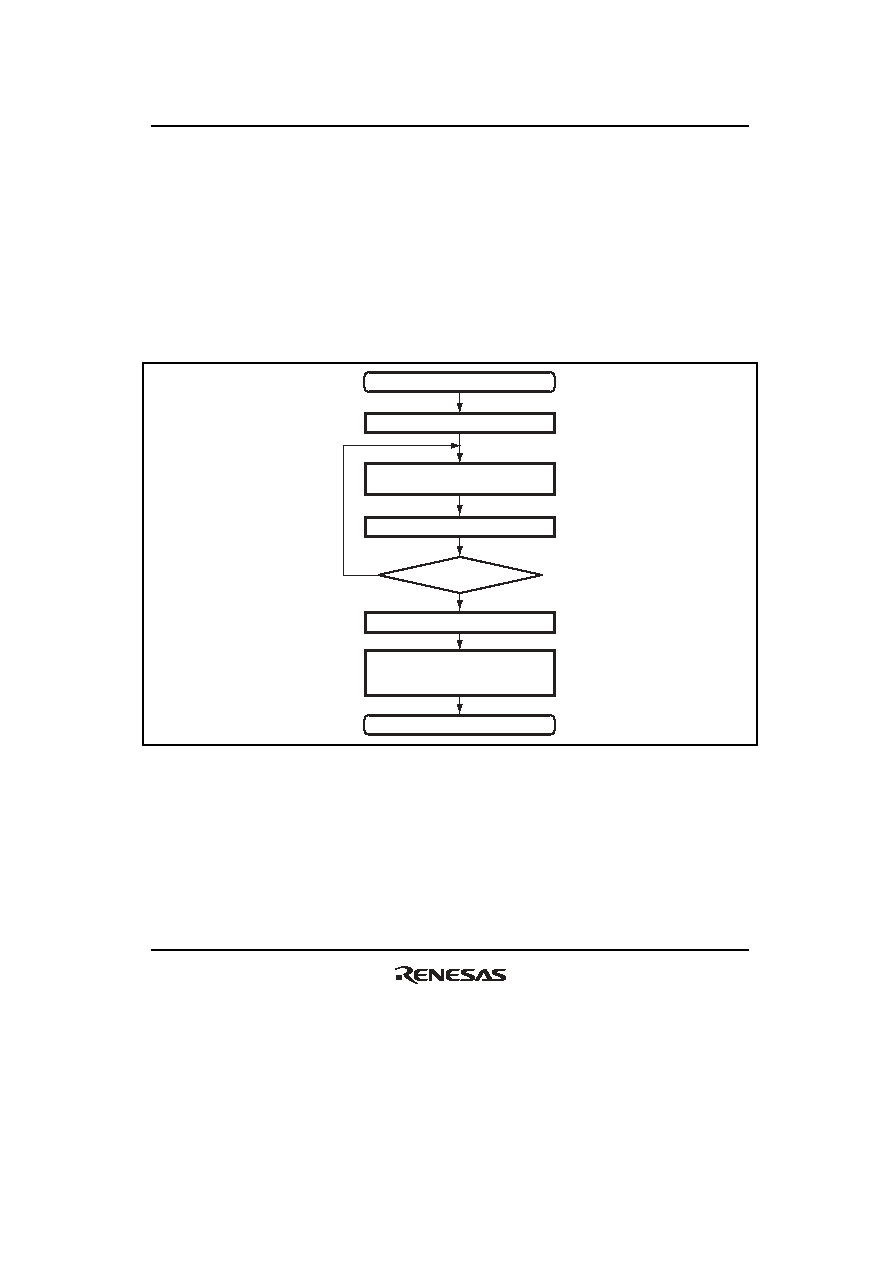

Figure 21.17 RAM Emulation Flow
