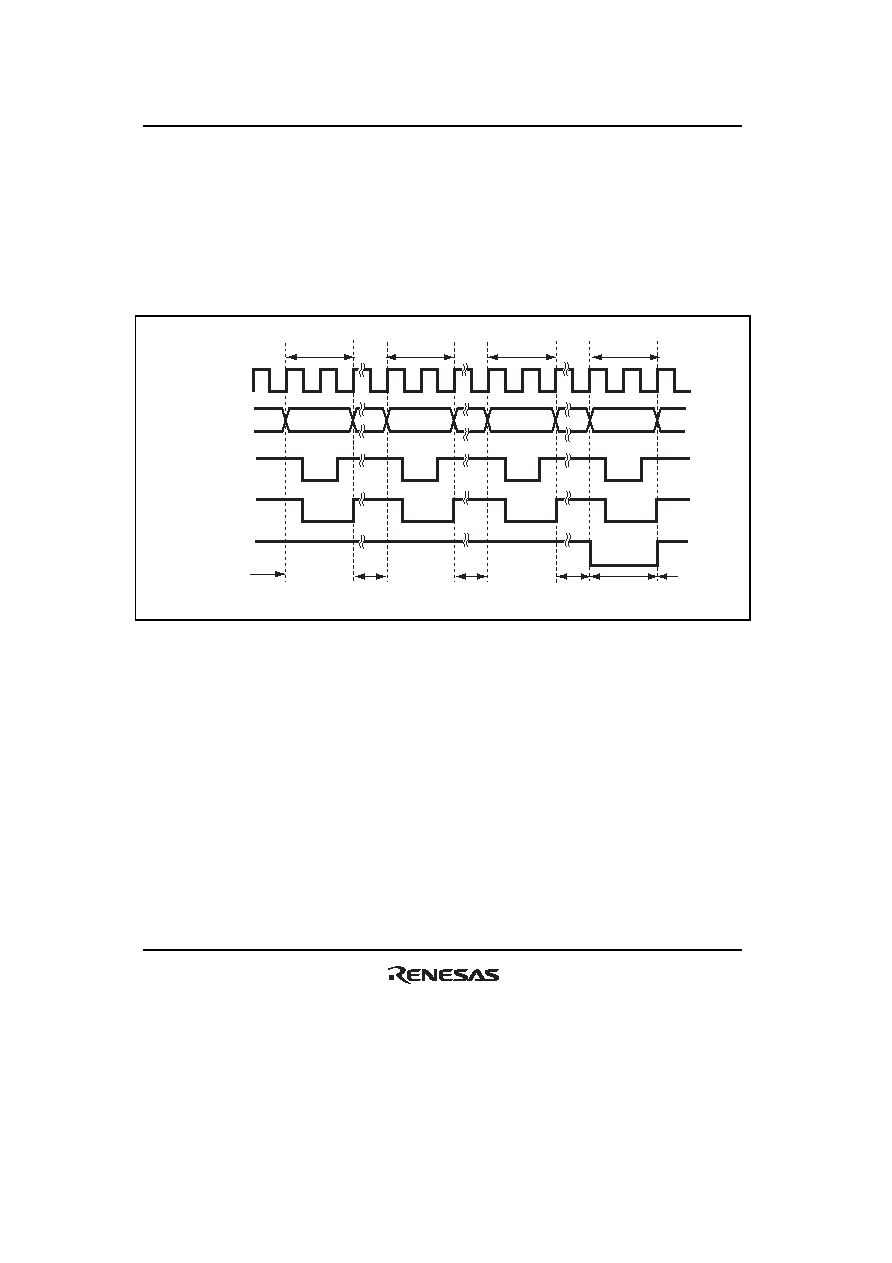

472 / 1504 page  Section 10 DMA Controller (DMAC) Rev. 2.00 Sep. 24, 2008 Page 440 of 1468 REJ09B0412-0200 (2) Single Address Mode (Write and Cycle Stealing) In single address mode, data of one byte, one word, or one longword is transferred at a single transfer request and after the transfer the bus is released temporarily. One bus cycle or more by the CPU or DTC are executed in the bus released cycles. In figure 10.35, the TEND signal output is enabled and data is transferred in bytes from the external 8-bit 2-state access space to the external device in single address mode (write). Bus released Bus released DMA write cycle B φ Address bus Bus released Bus released Last transfer cycle TEND DACK DMA write cycle DMA write cycle DMA write cycle LLWR Bus released Figure 10.35 Example of Transfer in Single Address Mode (Byte Write) |
|
