Section 11 EXDMA Controller (EXDMAC)

Rev. 2.00 Sep. 24, 2008 Page 505 of 1468

REJ09B0412-0200

Channel 0

Channel 1

Channel 2

Channel 0 transfer

Channel 1 transfer

Channel 2 transfer

Channel 0

Channel 1

Channel 2

Idle

Request cleared

Request

held

Request

held

Request

held

Selected

Not

selected

Address bus

Channel 0

Channel 1

Channel 2

EXDMAC

control

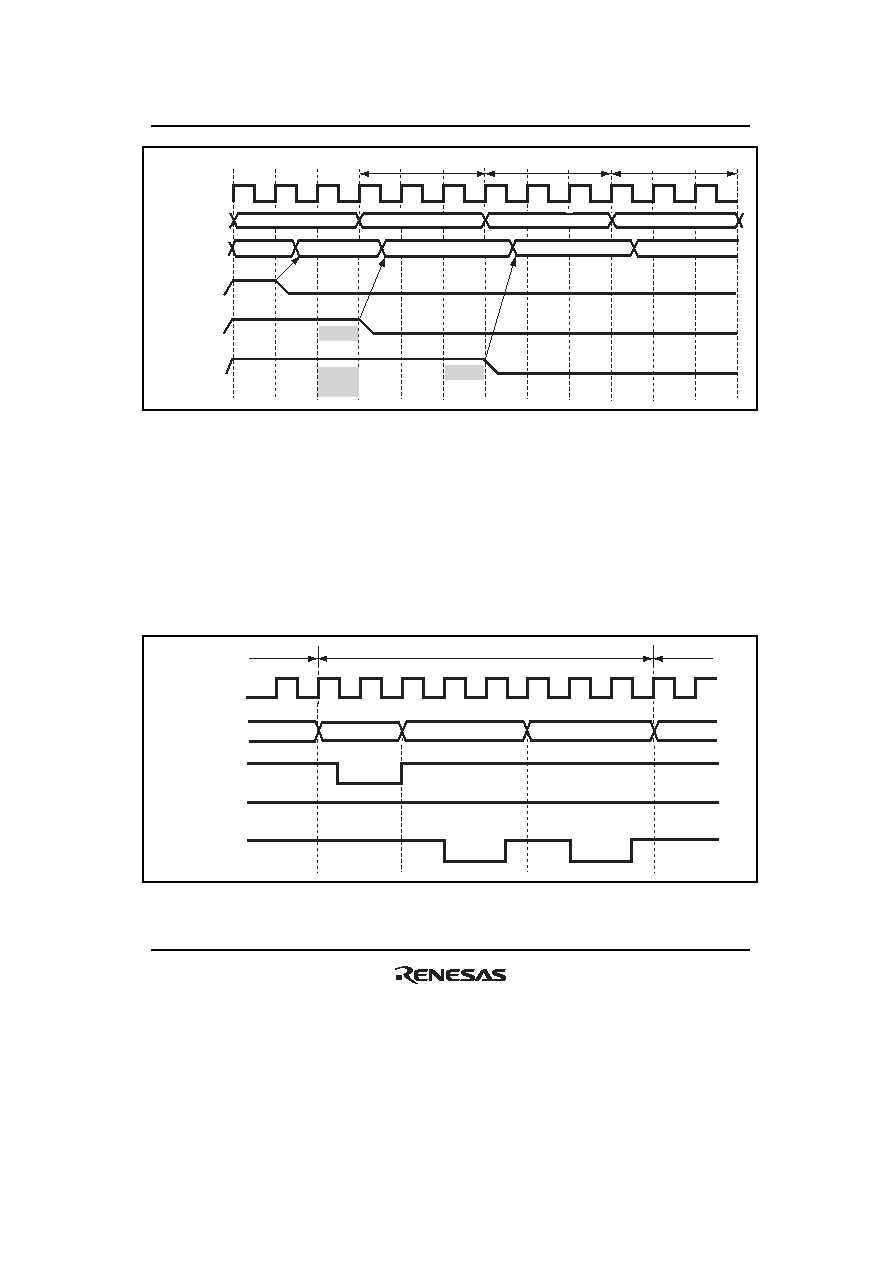

Figure 11.22 Example of Channel Priority Timing

11.5.9

Basic Bus Cycles

An example of the basic bus cycle timing is shown in figure 11.23. In this example, word-size

transfer is performed from 16-bit, 2-state access space to 8-bit, 3-state access space. When the bus

mastership is transferred from the CPU to the EXDMAC, a source address read and destination

address write are performed. The bus is not released in response to another bus request, etc.,

between these read and write operations. As like CPU cycles, EXDMAC cycles conform to the

bus controller settings.

CPU cycle

EXDMAC cycle (one word transfer)

CPU cycle

Address bus

Source address

Destination address

LHWR

LLWR

High

Figure 11.23 Example of EXDMA Transfer Bus Timing
