Section 11 EXDMA Controller (EXDMAC)

Rev. 2.00 Sep. 24, 2008 Page 512 of 1468

REJ09B0412-0200

(5)

EDREQ Pin Low Level Activation Timing

Figure 11.31 shows an example of normal transfer mode transfer activated by the

EDREQ pin low

level.

EDREQ pin sampling is performed in each cycle starting at the next rise of Bφ after the end of the

DTE bit write cycle.

When a low level is sampled at the

EDREQ pin while acceptance of a transfer request via the

EDREQ pin is possible, the request is held within the EXDMAC. Then when activation is initiated

within the EXDMAC, the request is cleared. After the end of the write cycle, acceptance resumes

and

EDREQ pin low level sampling is performed again. This sequence of operations is repeated

until the end of the transfer.

Idle

Minimum 3 cycles

Transfer

source

Transfer

destination

Transfer

destination

Transfer

source

Read

Write

Read

Write

Bus release

EXDMA read EXDMA write

EXDMA read

EXDMA write

EDREQ

Address

bus

EXDMA

control

Channel

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Transfer request enable resumed

[1] Acceptance after transfer enabling;

EDREQ pin low level is sampled at rise of Bφ, and request is held.

[2], [5] Request is cleared at end of next bus cycle, and activation is started in EXDMAC.

[3], [6] EXDMA cycle starts.

[4], [7] Acceptance is resumed after completion of write cycle.

(As in [1],

EDREQ pin low level is sampled at rise of Bφ, and request is held.)

Request

Duration of transfer

request disabled

Duration of transfer

request disabled

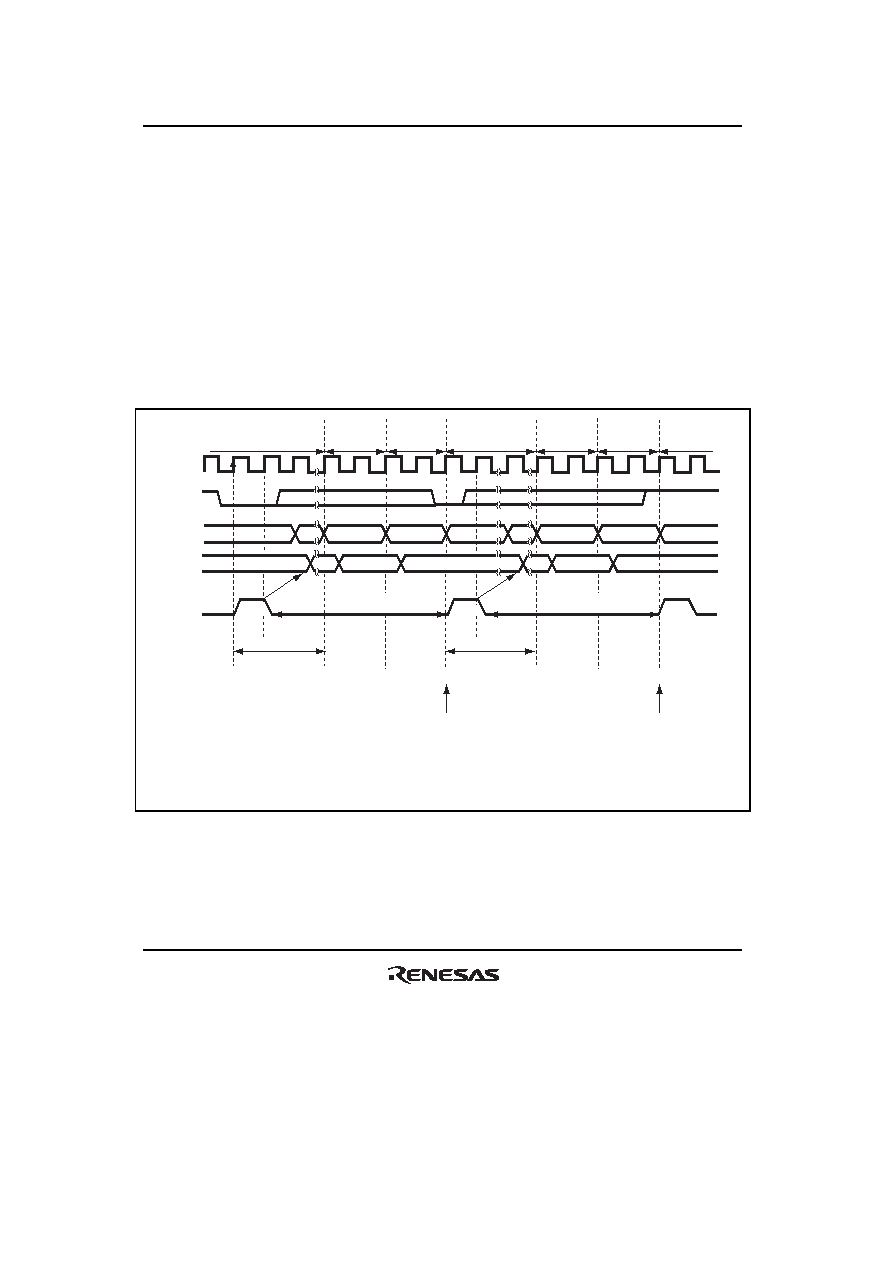

Figure 11.31 Example of Normal Transfer Mode Transfer Activated

EDREQ Pin Low Level
