Section 20 USB Function Module (USB)
Rev. 2.00 Sep. 24, 2008 Page 1011 of 1468
REJ09B0412-0200
(5)
Remote-Wakeup Operation
If the USB bus enters the non-suspend (resume) state from the suspend state by the remote-
wakeup signal output from this function, perform the operation as shown in figure 20.10.
USB cable connected
USB bus in suspend state
Cancel software
standby mode
Clear SURSF in IFR2 to 0
Check if SURSS in IFR2 is
cleared to 0
Software standby
mode ?
USB module
stopped?
Oscillation
stabilization time
has passed?
No
No
No
Yes
Yes
Yes
Start USB operating
clock oscillation
Cancel USB module stop
Remote wakeup execution
(CTLR/RSME= 1)
Return to normal state
Yes
No
Bus wakeup source
generated
Remote
wakeup enabled?
(CTLR/RWUPS = 1?)
Wait for resume
from up-stream
Resume output signal
Suspend/resume
interrupt occurs.
(IFR2/SURSF = 1)
RESUME
USB function
Application

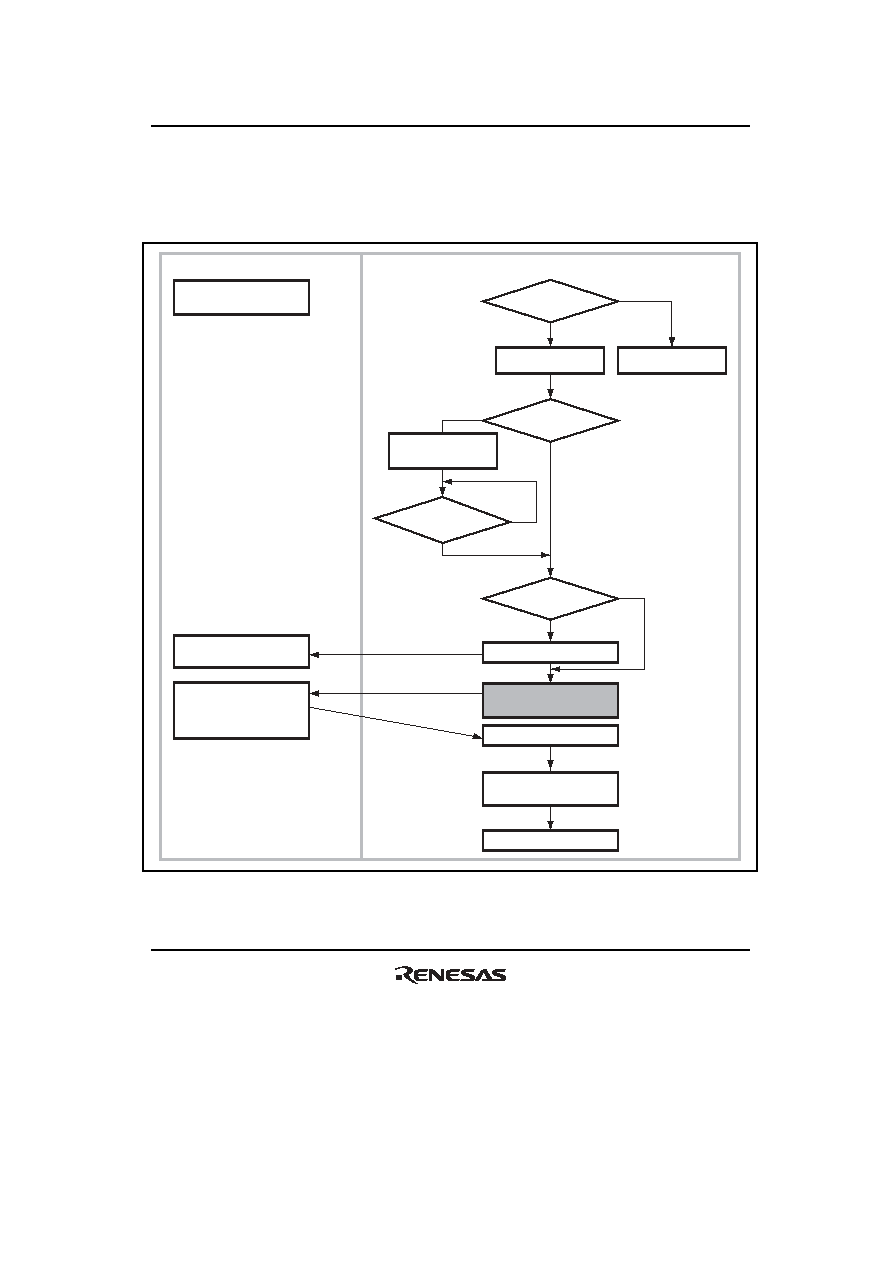

Figure 20.10 Remote-Wakeup
