Section 21 I
2C Bus Interface 2 (IIC2)
Rev. 2.00 Sep. 24, 2008 Page 1035 of 1468
REJ09B0412-0200
Vcc
Vcc
SCL in
SCL out
SCL
SDA in
SDA out
SDA
SCL
(Master)
(Slave 1)
(Slave 2)
SDA
SCL in
SCL out
SDA in
SDA out
SCL in
SCL out
SDA in
SDA out

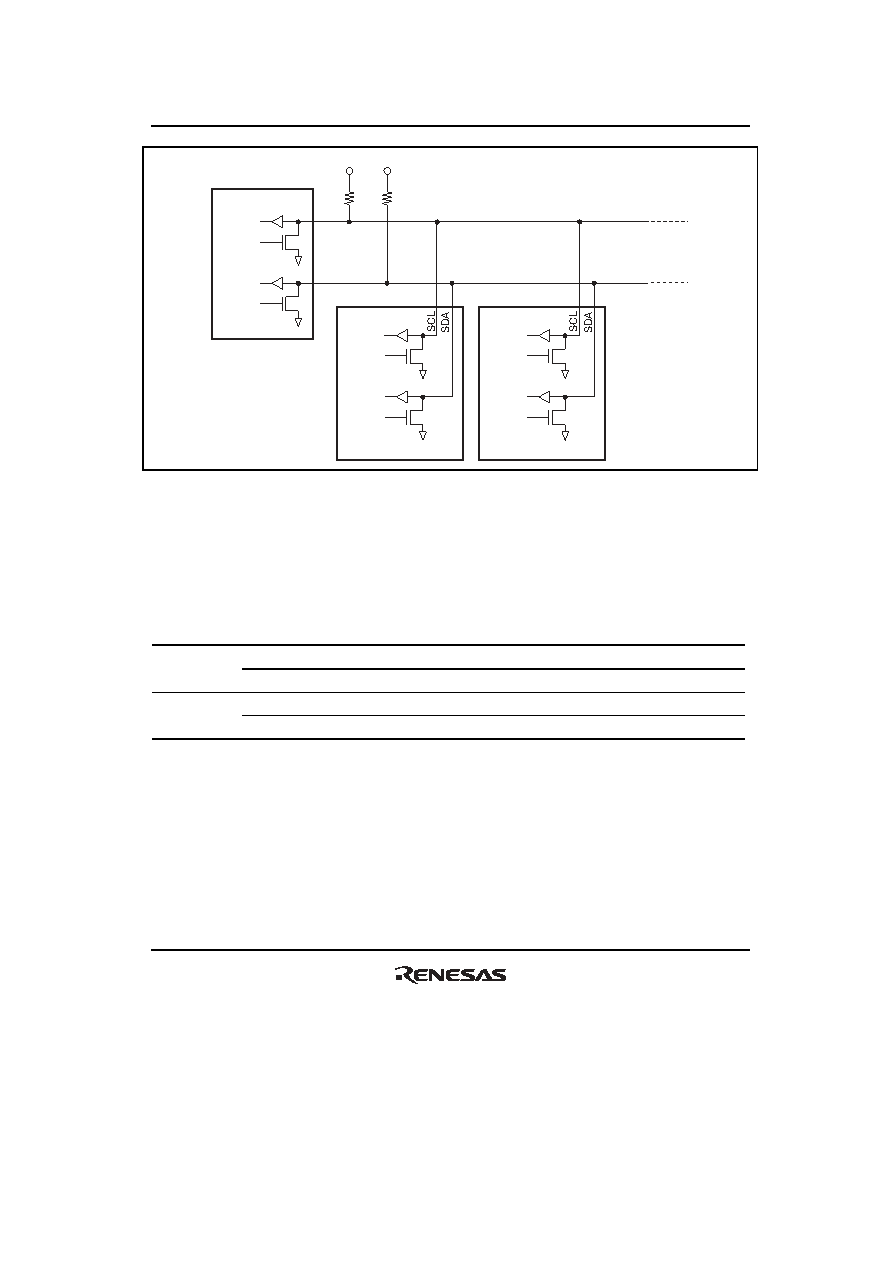

Figure 21.2 Connections to the External Circuit by the I/O Pins
21.2
Input/Output Pins
Table 21.1 shows the pin configuration of the I
2C bus interface 2.
Table 21.1
Pin Configuration of the I
2C Bus Interface 2
Channel
Abbreviation
I/O
Function
SCL0
I/O
Channel 0 serial clock I/O pin
0
SDA0
I/O
Channel 0 serial data I/O pin
SCL1
I/O
Channel 1 serial clock I/O pin
1
SDA1
I/O
Channel 1 serial data I/O pin
Note:
The pin symbols are represented as SCL and SDA; channel numbers are omitted in this
manual.
