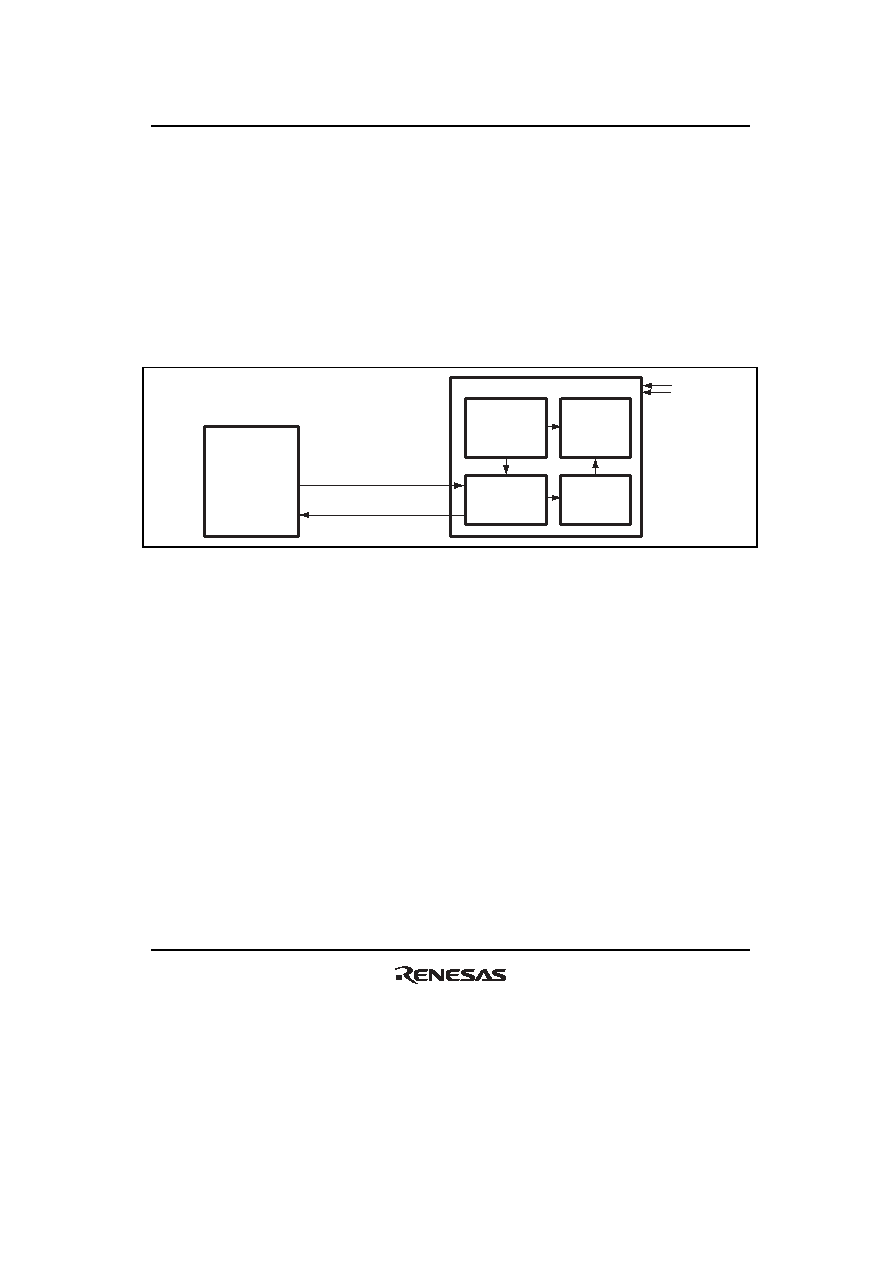

1171 / 1504 page  Section 25 Flash Memory Rev. 2.00 Sep. 24, 2008 Page 1139 of 1468 REJ09B0412-0200 25.8.1 Boot Mode SCI Boot mode executes programming/erasure of the user MAT or user boot MAT by means of the control command and program data transmitted from the externally connected host via the on- chip SCI_4. In SCI boot mode, the tool for transmitting the control command and program data, and the program data must be prepared in the host. The serial communications mode is set to asynchronous mode. The system configuration in boot mode is shown in figure 25.6. Interrupts are ignored in SCI boot mode. Configure the user system so that interrupts do not occur. RxD4 TxD4 Software for analyzing control commands (on-chip) Flash memory On-chip RAM SCI_4 This LSI Host Programming tool and program data Control command, program data Response PM2 MD3 to MD0 0 0010 Figure 25.6 System Configuration in Boot Mode |
|
