Section 8 User Break Controller (UBC)

Rev. 2.00 Sep. 24, 2008 Page 172 of 1468

REJ09B0412-0200

8.2

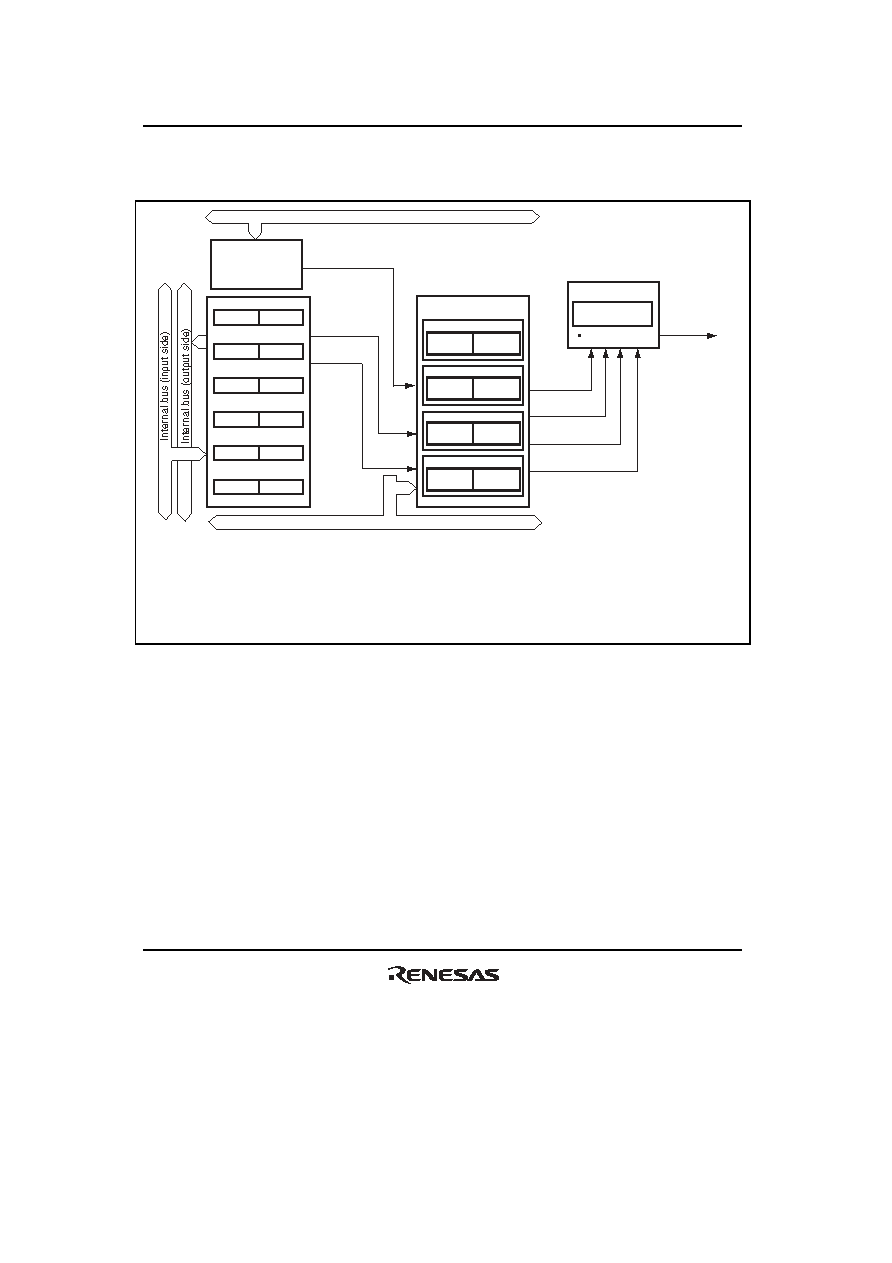

Block Diagram

A ch PC

Condition match

B ch PC

Condition match

C ch PC

Condition match

D ch PC

Condition match

UBC break

interrupt request

Break control

Mode control

Sequential control

Break

address

Break

control

Instruction

execution pointer

CPU status

Instruction execution pointer

BARAH

BARAL

BARBH

BARBL

BARCH

BARCL

BARDH

BARDL

BRCRA

BRCRB

BRCRC

BRCRD

PC break control

Address

comparator

A ch

Condition

match

determination

Condition

match

determination

Condition

match

determination

Condition

match

determination

Address

comparator

B ch

Address

comparator

C ch

Address

comparator

D ch

Flag set control

BARAH, BARAL:

BARBH, BARBL:

BARCH, BARCL:

BARDH, BARDL:

BRCRA:

BRCRB:

BRCRC:

BRCRD:

Break address register A

Break address register B

Break address register C

Break address register D

Break control register A

Break control register B

Break control register C

Break control register D

[Legend]

Figure 8.1 Block Diagram of UBC
